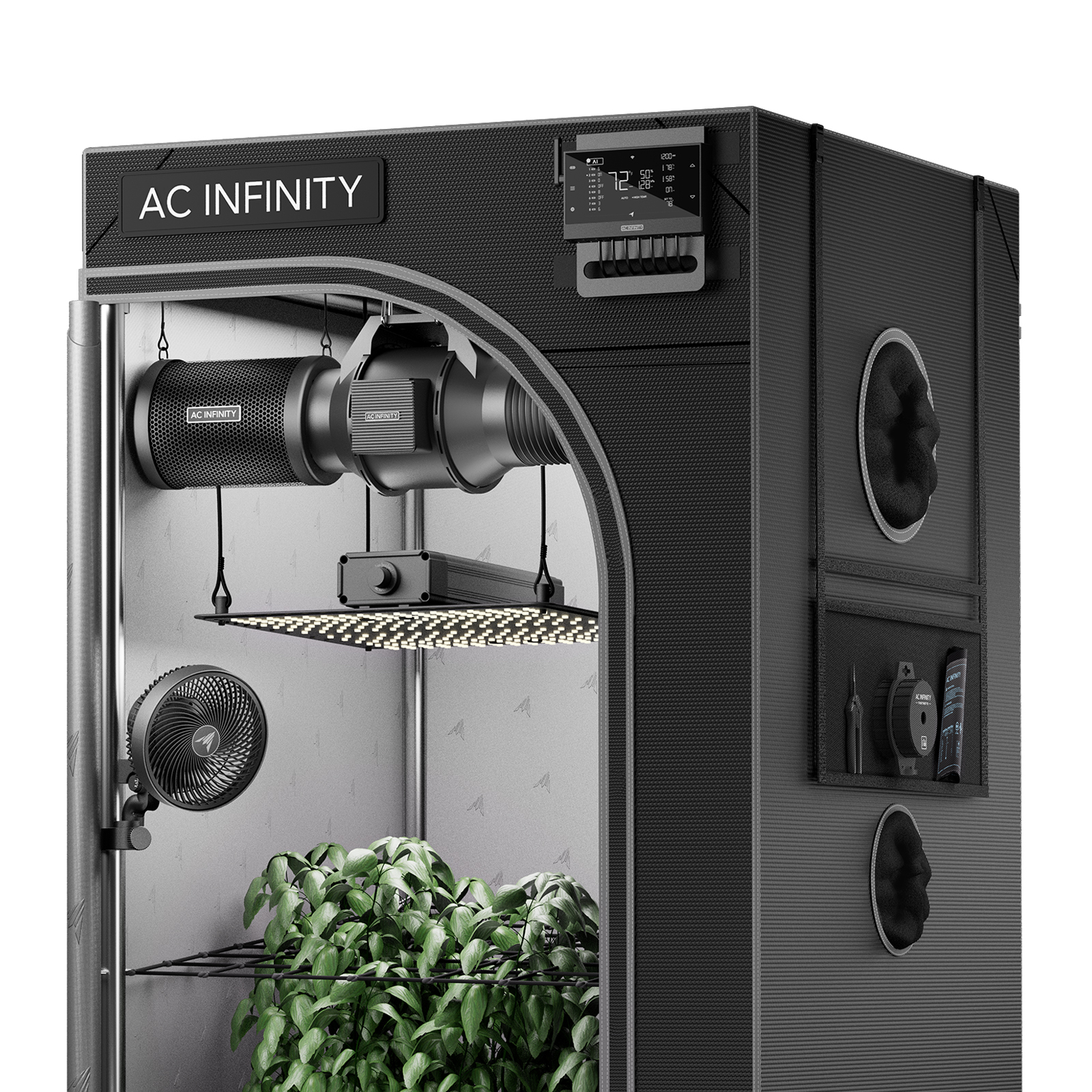

AC-PKB22
AI Grow Tent System 60 x 60 cm, Integrated Controls with Dynamic AI, 1-Plant Kit
€659,00
incl. VAT, plus shipping costs
- An advanced grow tent kit with smart controls and integrated components – everything needed to start an indoor grow setup right away.
- The AI-powered controller detects climate changes using real-time and historical data and automatically adjusts connected devices to create optimal growing conditions.
- Connect a smartphone via WiFi to the AC Infinity app to monitor and control the grow tent climate from anywhere – including AI insights, guides, chatbot and more.
- Includes: Ø 100 mm inline fan with EC motor (electronically commutated motor), Ø 150 mm clip fan and a 115 W full-spectrum grow light with Samsung LM301H LEDs.
- Premium 60 × 60 × 180 cm grow tent with 2000D Mylar inner walls, Australian carbon filter, ducting, fabric pots, pruning shears and much more.
Product Description

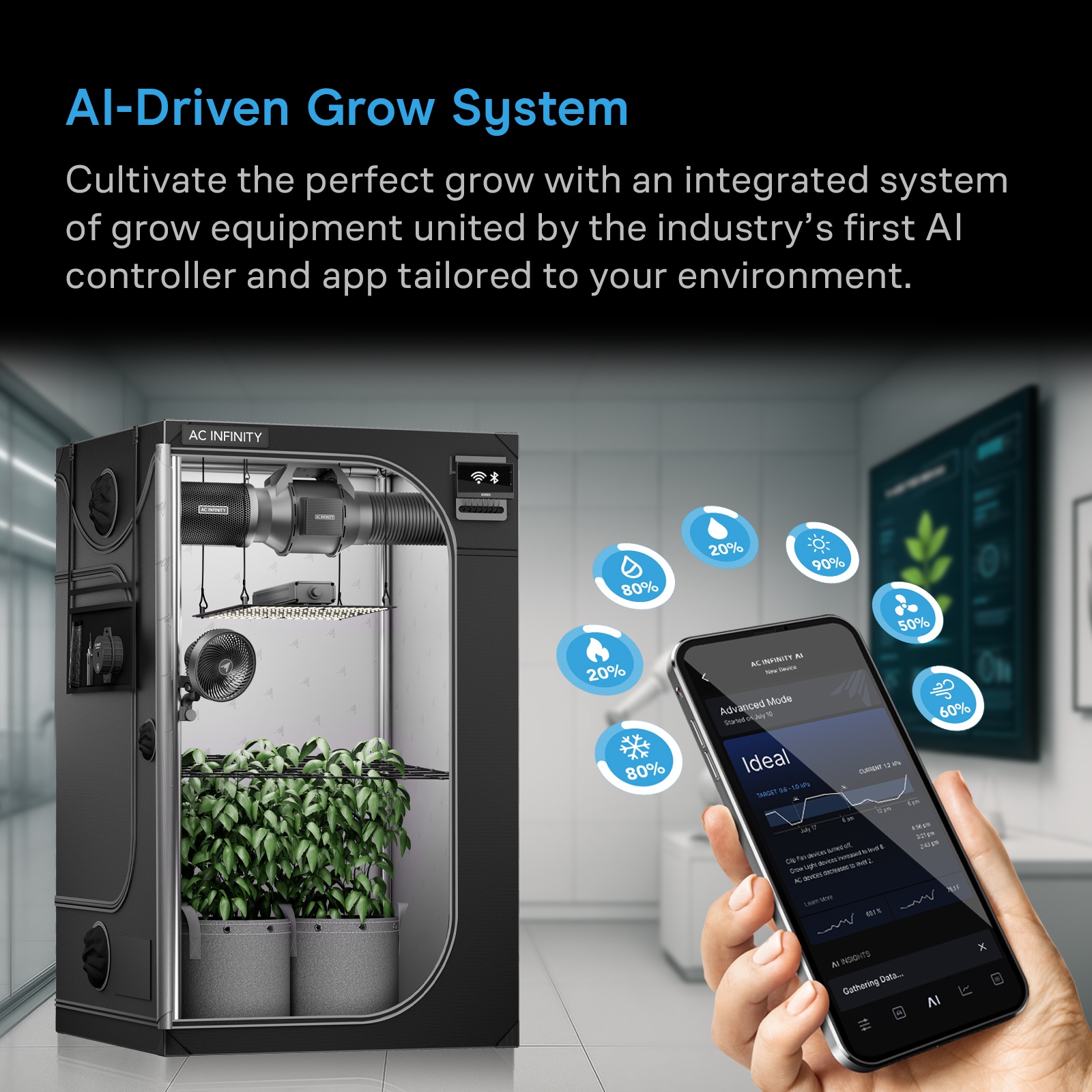

The Advance Grow Tent System with smart controls keeps the grow setup at ideal conditions for a successful harvest.

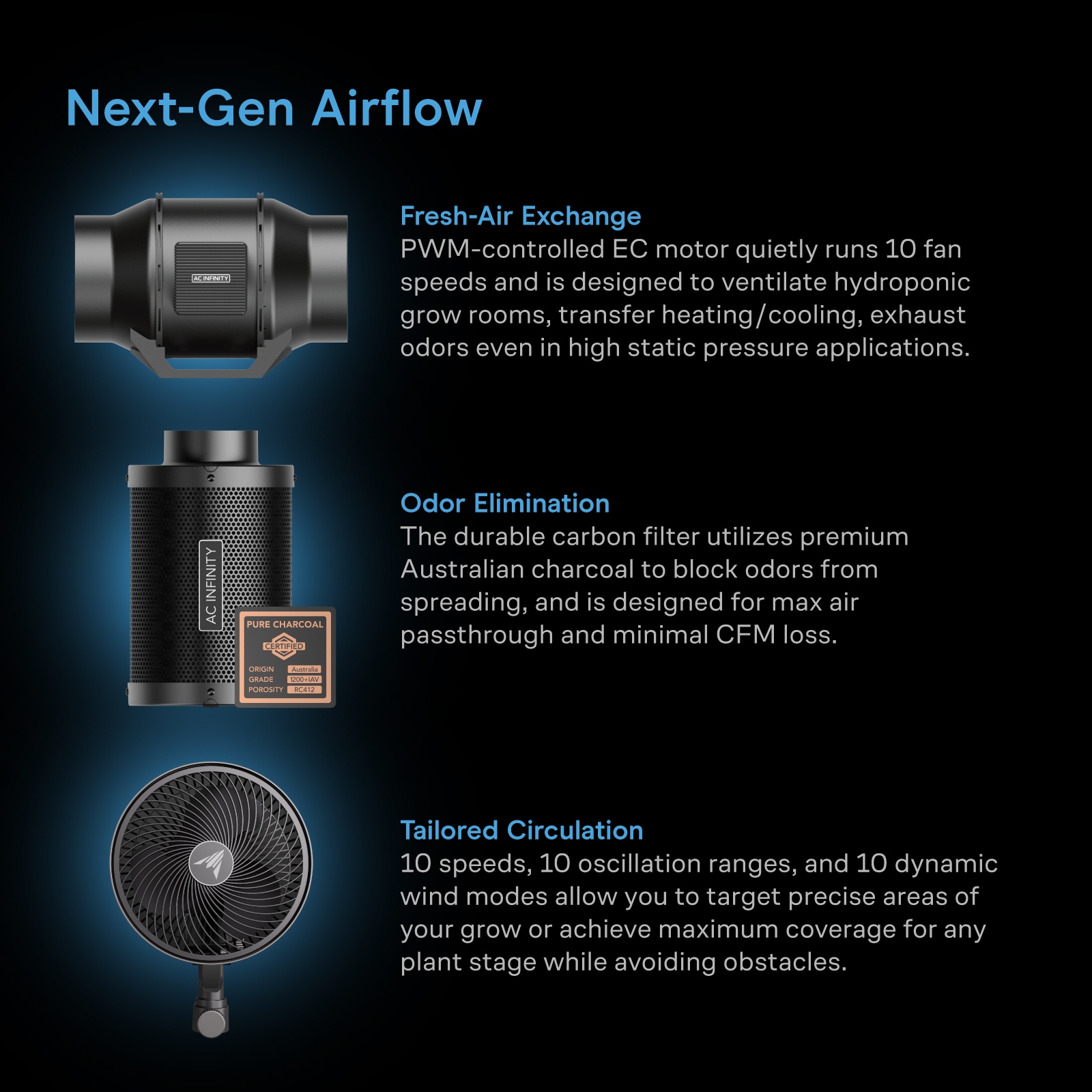

Exhaust and Odor Control
CLOUDLINE A4 · Carbon Filter
The inline fan, carbon filter and ducting regulate the tent climate by reliably removing heat, humidity and odors.
Air Circulation
CLOUDRAY S6
Air circulation is handled by the next-gen clip fan with oscillation range control – newly developed to deliver tailored, adjusted airflow to the plants over long periods.

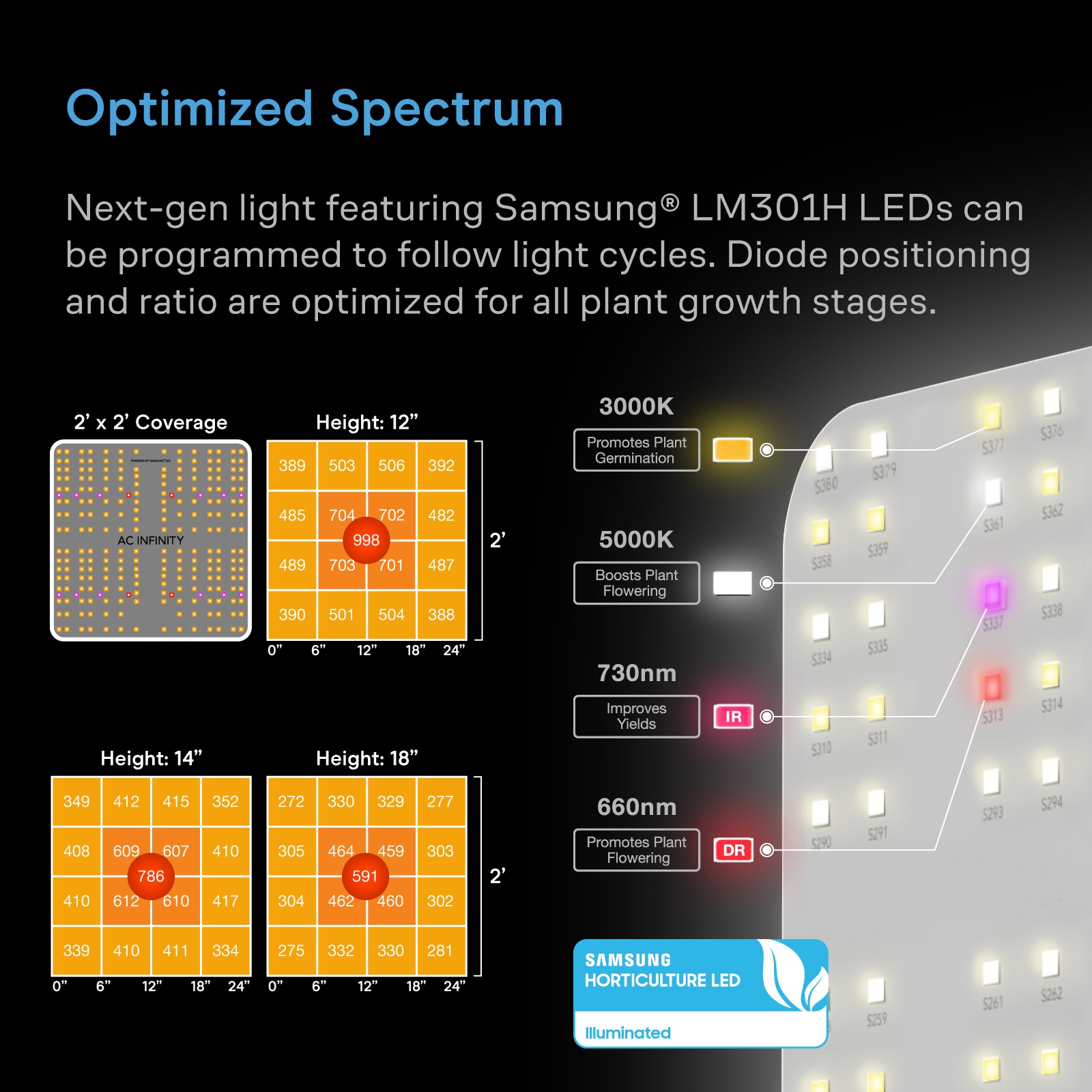

Light
IONBOARD S22 · 115 W
The algorithmically selected and arranged LM301H diodes on the LED board deliver strong light with wide coverage, simulate sunlight and optimize growth.

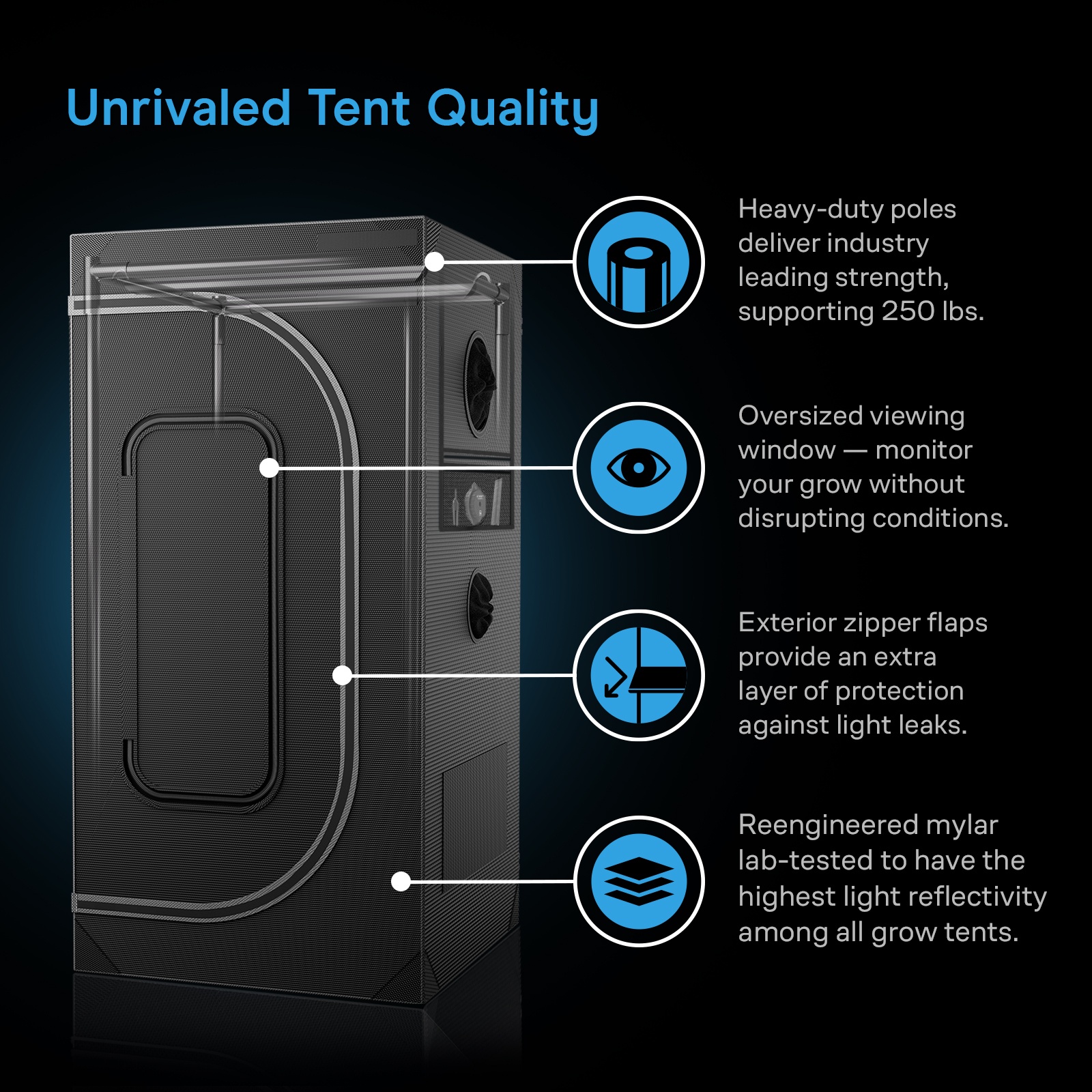

Grow Tent
CLOUDLAB 722 · 60 × 60 × 180 cm
All devices are housed in the premium grow tent. A sturdy steel frame, durable Oxford outer fabric and Mylar inner walls create an optimal grow environment.

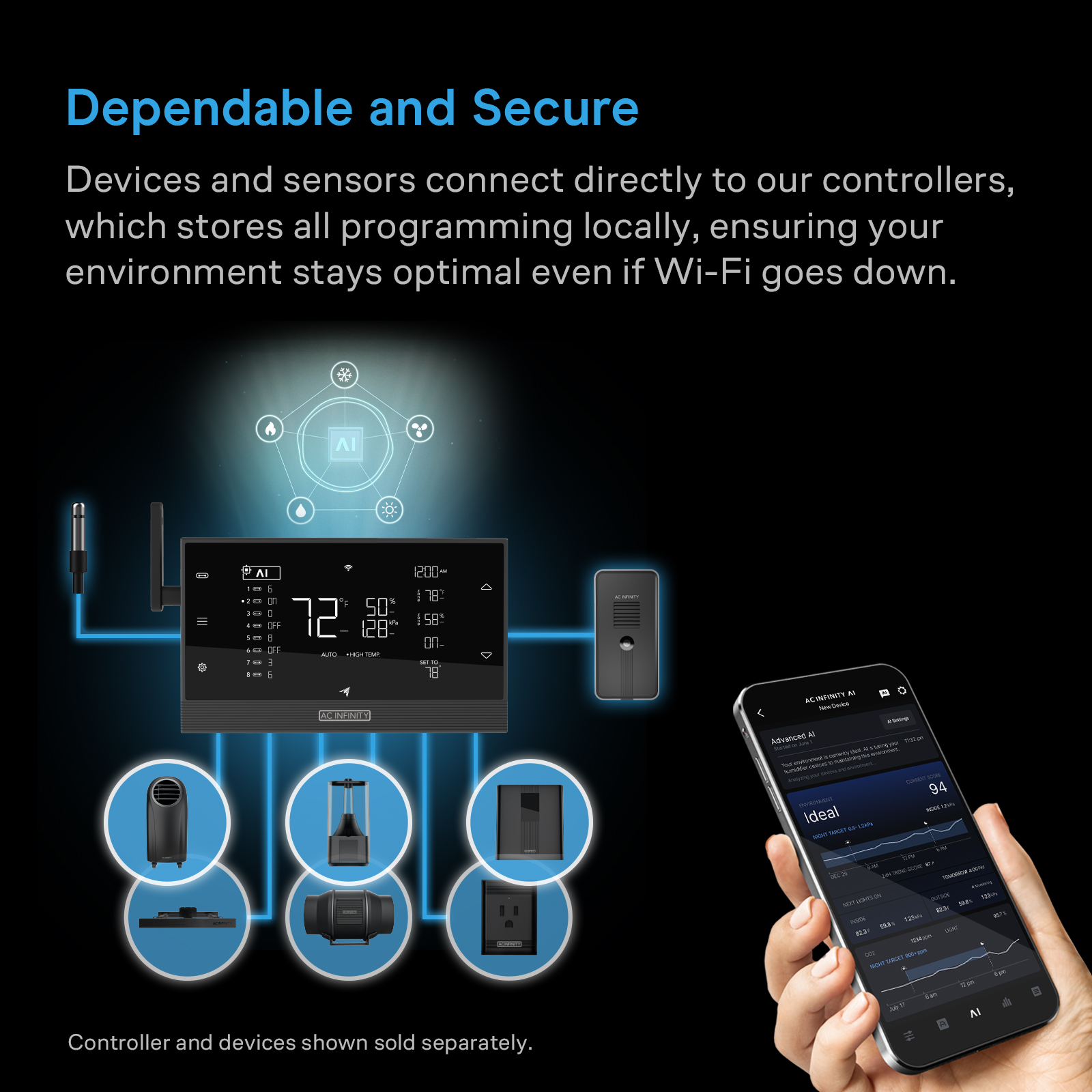

CONTROLLER AI+
Smart Control

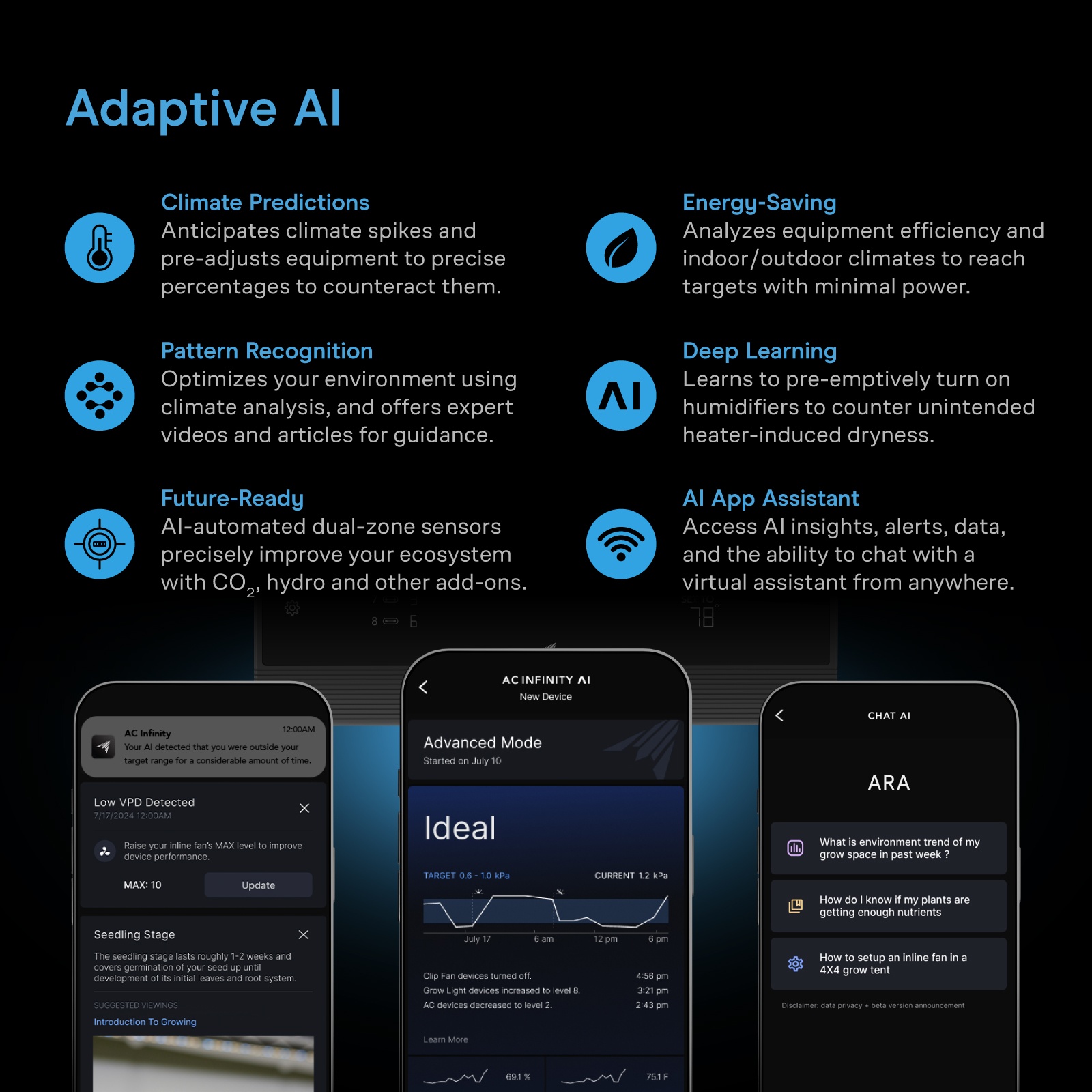

At the heart of the system is the CONTROLLER AI+, which continuously monitors the grow tent and communicates with the inline fan, clip fan and LED lighting to make adjustments automatically and maintain a stable climate.
Unlike conventional controllers that rely only on on/off signals or timers, the controller keeps learning, analyzes past results and avoids overshooting or undershooting – for highly efficient climate control.
The AC Infinity app offers a choice between:
AI modesTwo AI-controlled modes that adjust automatically
AutomationCustom automations with trigger points and target values – the controller then regulates independently
In addition, the app provides access to grow guides, recipes, articles, video tutorials and a chatbot to help expand growing knowledge and take the grow to the next level.

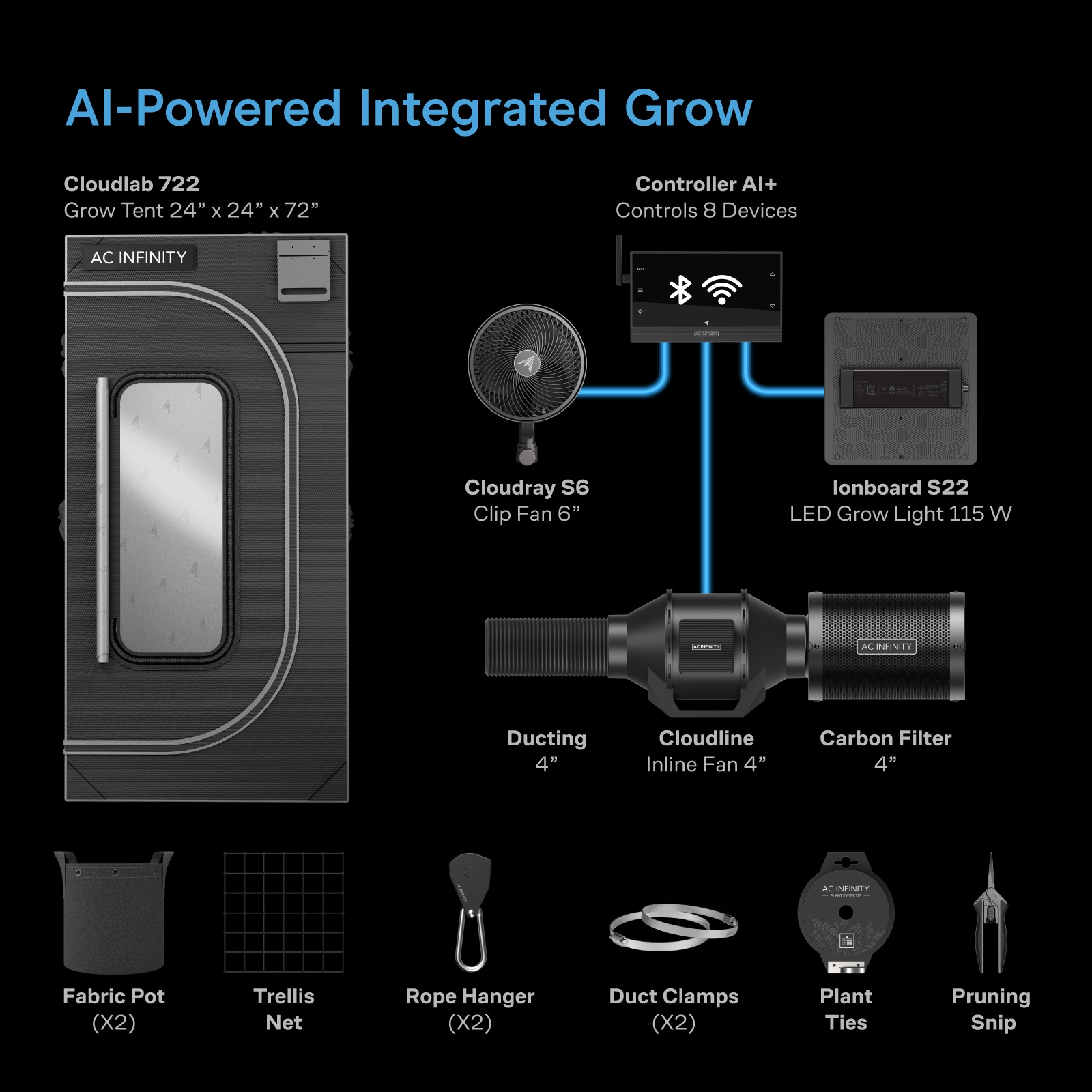

Complete Kit
This package contains all essential components to start an indoor grow right away – no guesswork buying individual parts. Included:
Accessories and Mounting Hardware
- 4×Hanging straps
- 2×Adjustable heavy-duty rope hangers
- 2×Stainless steel duct clamps Ø 100 mm
- 1×Aluminum tape 150 cm
- 10×Hook-and-loop ties
- 1×UIS control cable for the controller connection (UIS: Universal Infinity System), 180 cm, male to male
- 1×UIS control cable 180 cm, male to male, L-shaped
- 1×Grow tent trellis net 60 × 60 cm, elastic cords
- 1×Black wire ties with built-in cutter
- 1×Pruning shears
Safety and Warning Information
Power and Cables
- Connect only to properly installed, grounded outlets.
- Unplug the power cord before cleaning, servicing or modifying the device.
- Do not use damaged cables or plugs.
- If cables are damaged, disconnect from the power supply immediately.
- Use only original cables and suitable accessories.
- Connect all connections securely and correctly before operating the device.
- Use UIS control cables only for control connections, never to connect to mains power.
- Do not place or spill liquids above the devices.
Inline Fans and Clip Fans
- Do not insert foreign objects into the inline fan.
- Do not reach into the inline fan or clip fan by hand during operation.
- Operate inline fans and clip fans only when fully assembled and uncovered.
- Do not kink or crush the ducting or filter – airflow must not be obstructed.
Assembly and Mounting
- Do not drop the devices or expose them to strong impacts.
- Do not operate the products in humid or wet environments (except for components designed for this, such as the grow tent).
- Make sure the surface is stable and level.
- Do not exceed the maximum load capacity of the cross bars as stated in the specifications.
- Regularly check hangers and ropes for a secure fit.
LED Grow Light
- Avoid looking directly into the LED light source – the intense light could damage the eyes.
- Suitable protective eyewear is recommended when working under an LED grow light that is switched on.
- Do not touch the LED grow light during operation – it can become hot.
- Do not cover the devices during operation.
- Use only in a well-ventilated environment – do not block vents or air paths.
General and Disposal
- Keep away from children and pets.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
- Use the device only for its intended purpose.
- Read the user manual completely before first use.
- Have modifications or repairs carried out only by authorized qualified personnel.
- Improper use may compromise safety and result in damage or injury.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment.
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- An advanced grow tent kit with smart controls and integrated components – everything needed to start an indoor grow setup right away.
- The AI-powered controller detects climate changes using real-time and historical data and automatically adjusts connected devices to create optimal growing conditions.
- Connect a smartphone via WiFi to the AC Infinity app to monitor and control the grow tent climate from anywhere – including AI insights, guides, chatbot and more.
- Includes: Ø 100 mm inline fan with EC motor (electronically commutated motor), Ø 150 mm clip fan and a 115 W full-spectrum grow light with Samsung LM301H LEDs.
- Premium 60 × 60 × 180 cm grow tent with 2000D Mylar inner walls, Australian carbon filter, ducting, fabric pots, pruning shears and much more.
Product Description
The Advance Grow Tent System with smart controls keeps the grow setup at ideal conditions for a successful harvest.
Exhaust and Odor Control
CLOUDLINE A4 · Carbon Filter
The inline fan, carbon filter and ducting regulate the tent climate by reliably removing heat, humidity and odors.
Air Circulation
CLOUDRAY S6
Air circulation is handled by the next-gen clip fan with oscillation range control – newly developed to deliver tailored, adjusted airflow to the plants over long periods.
Light
IONBOARD S22 · 115 W
The algorithmically selected and arranged LM301H diodes on the LED board deliver strong light with wide coverage, simulate sunlight and optimize growth.
Grow Tent
CLOUDLAB 722 · 60 × 60 × 180 cm
All devices are housed in the premium grow tent. A sturdy steel frame, durable Oxford outer fabric and Mylar inner walls create an optimal grow environment.
CONTROLLER AI+
Smart Control
At the heart of the system is the CONTROLLER AI+, which continuously monitors the grow tent and communicates with the inline fan, clip fan and LED lighting to make adjustments automatically and maintain a stable climate.
Unlike conventional controllers that rely only on on/off signals or timers, the controller keeps learning, analyzes past results and avoids overshooting or undershooting – for highly efficient climate control.
The AC Infinity app offers a choice between:
AI modesTwo AI-controlled modes that adjust automatically
AutomationCustom automations with trigger points and target values – the controller then regulates independently
In addition, the app provides access to grow guides, recipes, articles, video tutorials and a chatbot to help expand growing knowledge and take the grow to the next level.
Complete Kit
This package contains all essential components to start an indoor grow right away – no guesswork buying individual parts. Included:
Accessories and Mounting Hardware
- 4×Hanging straps
- 2×Adjustable heavy-duty rope hangers
- 2×Stainless steel duct clamps Ø 100 mm
- 1×Aluminum tape 150 cm
- 10×Hook-and-loop ties
- 1×UIS control cable for the controller connection (UIS: Universal Infinity System), 180 cm, male to male
- 1×UIS control cable 180 cm, male to male, L-shaped
- 1×Grow tent trellis net 60 × 60 cm, elastic cords
- 1×Black wire ties with built-in cutter
- 1×Pruning shears
Safety and Warning Information
Power and Cables
- Connect only to properly installed, grounded outlets.
- Unplug the power cord before cleaning, servicing or modifying the device.
- Do not use damaged cables or plugs.
- If cables are damaged, disconnect from the power supply immediately.
- Use only original cables and suitable accessories.
- Connect all connections securely and correctly before operating the device.
- Use UIS control cables only for control connections, never to connect to mains power.
- Do not place or spill liquids above the devices.
Inline Fans and Clip Fans
- Do not insert foreign objects into the inline fan.
- Do not reach into the inline fan or clip fan by hand during operation.
- Operate inline fans and clip fans only when fully assembled and uncovered.
- Do not kink or crush the ducting or filter – airflow must not be obstructed.
Assembly and Mounting
- Do not drop the devices or expose them to strong impacts.
- Do not operate the products in humid or wet environments (except for components designed for this, such as the grow tent).
- Make sure the surface is stable and level.
- Do not exceed the maximum load capacity of the cross bars as stated in the specifications.
- Regularly check hangers and ropes for a secure fit.
LED Grow Light
- Avoid looking directly into the LED light source – the intense light could damage the eyes.
- Suitable protective eyewear is recommended when working under an LED grow light that is switched on.
- Do not touch the LED grow light during operation – it can become hot.
- Do not cover the devices during operation.
- Use only in a well-ventilated environment – do not block vents or air paths.
General and Disposal
- Keep away from children and pets.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
- Use the device only for its intended purpose.
- Read the user manual completely before first use.
- Have modifications or repairs carried out only by authorized qualified personnel.
- Improper use may compromise safety and result in damage or injury.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment.
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameAI Grow Tent System 60 × 60 × 180 cm
Product ModelAC-PKB22
UPC Code819137022836
User Manual
Grow Tent
CLOUDLAB 722 · Model AC-CBA722
Product and Mounting Dimensions
| Tent Dimensions | 60 × 60 × 180 cm |
|---|---|
| Duct Ports (Ø) | Ø 100 mm (4×), Ø 150 mm (3×) |
Product Performance and Technical Specifications
| Outer Material | Oxford |
|---|---|
| Inner Material | Mylar |
| Pole Material | Steel |
| Pole Thickness | 22 mm |
| Cross Bar Load Capacity | up to 68 kg |
| Hanging Bars | 3 |
| Plant Capacity | 1–2 plants |
Inline Fan
CLOUDLINE A4 · Model AI-CLA4
Product and Mounting Dimensions
| Duct Size (Ø) | Ø 100 mm |
|---|---|
| Overall Dimensions | 190 × 302 × 176 mm |
| Mounting Hole Distance | 80 × 60 mm |
| Screw Hole Size | Ø 5.0 mm |
| Cord Length to Controller | 1.83 m |
| Cord Length to Plug | 1.83 m |
Performance and Technical Specifications
| Total Airflow | approx. 280 m³/h |
|---|---|
| Noise Level (total) | 29 dBA |
| Max. Speed | 2800 RPM |
| Static Pressure | 324 Pa |
| Voltage | 100–240 V AC |
| Frequency | 50/60 Hz |
| Max. Power Consumption | 35 W |
| Average Power | 18 W |
| Current | 0.55 A |
| Plug Type | EU plug (country-specific, Type C/F) |
| Operating Humidity | 35–85% RH |
| Operating Temperature | 0–60°C |
| Protection Rating | IP-44 |
| Bearing | Dual ball bearings |
| Mounting Positions | Horizontal or vertical |
| L10 Lifespan | 67,000 hours |
Clip Fan
CLOUDRAY S6, Gen 2 · Model AC-CCS6
Product and Mounting Dimensions
| Impeller Size (Ø) | Ø 150 mm |
|---|---|
| Overall Dimensions | 24.7 × 30.0 cm |
| Cord Length to Plug | 2.44 m |
Product Performance and Technical Specifications
| Maximum Airflow | approx. 553 m³/h |
|---|---|
| Noise Level (total) | 31 dBA |
| Static Pressure | 25 Pa |
| Operating Voltage | 100–240 V AC |
| Power | 11 W |
| Current | 0.14 A |
| Operating Humidity | 35–85% RH |
| Operating Temperature | 0–60°C |
| Protection Rating | IP-54 |
| Rotation Range | 90° |
| Tilt Angle | 55° |
| Oscillation | Automatic Oscillation |
| Bearing | Dual ball bearings |
| Mounting Positions | Horizontal or vertical |
| Lifespan | 67,000 hours |
Controller
CONTROLLER AI+ · Model CTR89Q
Product and Mounting Dimensions
| Overall Dimensions | 14.9 × 8.7 × 2.4 cm |
|---|---|
| Display Size | 11.4 cm |
| Sensor Probe Length | 3.66 m |
Product Performance and Technical Specifications
| Max. Number of Devices | 8 (32 with splitters) |
|---|---|
| Operation | Capacitive touch controls |
| Supported Sensors | 3 (1 integrated) |
| Built-in Sensor | Temperature and humidity |
| Wired Sensor | Temperature and humidity |
| Control | Temperature, humidity and VPD (vapor pressure deficit) |
| Power Supply | Adapter |
| App Control | WiFi and Bluetooth |
| Power Consumption | max. 2 W |
| Voltage | 100–240 V AC |
| Operating Temperature | 0–60°C |
| Operating Humidity | 35–85% RH |
LED Grow Light
IONBOARD S22 · Model AC-IBS22
Product and Mounting Dimensions
| Light Dimensions | 30 × 30 cm |
|---|---|
| LED Board Thickness | 1.1 cm |
| Driver Dimensions | 18.2 × 4.0 cm |
Product Performance and Technical Specifications
| Coverage | 60 × 60 cm |
|---|---|
| Diodes | Samsung LM301H |
| Number of LED Chips | 272 |
| LED Driver | AC Infinity proprietary driver IB-150 |
| Efficiency | 2.7 µmol/J |
| PPFD | 1,098 µmol/m²/s |
| Spectrum | 660 nm, 730 nm, 3000 K, 6500 K |
| Power (watts) | 115 W |
| Voltage | 100–277 V AC |
| Frequency | 50/60 Hz |
| Current | 0.47 A (at 230 V) |
| Controller | Digital timer |
| Plug Type | Type F (Schuko plug, EU) |
| Operating Humidity | 35–85% RH |
| Operating Temperature | 0–60°C |
| Lifespan | 50,000 hours |
Carbon Filter
Carbon Filter Ø 100 mm · Model AC-DCF4
Product and Mounting Dimensions
| Duct Port (Ø) | Ø 100 mm |
|---|---|
| Overall Dimensions | 300 × 177 mm |
| Flange Length | 37 mm |
Product Performance and Technical Specifications
| Flange Material | Aluminum |
|---|---|
| Flange Design | Reversible |
| Mesh Material | Galvanized steel with gunmetal coating |
| Carbon Type | Australian virgin activated carbon RC412 |
| Carbon Quality | 1200+ IAV |
| Carbon Thickness | 38 mm |
| Maximum Airflow | approx. 357 m³/h |
Ducting
Flexible Ducting Ø 100 mm · Model AI-DTA4-8
Product Dimensions
| Duct Size (Ø) | Ø 100 mm (actual 102 mm – slightly oversized so the ducting fits onto the connections) |
|---|---|
| Length | 2.44 m |
Product Performance and Technical Specifications
| Outer Layer | PVC thermoplastic |
|---|---|
| Inner Material | Aluminum foil |
| Inner Structure | Steel spiral spring |
Related Products
AI Grow Tent System 60 x 120 cm, Integrated Controls with Dynamic AI, 2-Plant Kit
€829,00
incl. VAT, plus shipping costs
CLOUDLAB 722, Advance Grow Tent 60 x 60 x 180 cm, Extra-Thick Poles and Canvas
€146,93
incl. VAT, plus shipping costs
