AC-IBS44

IONBOARD S44, Grow Light Board 430 W, Full Spectrum LED 120 x 120 cm Coverage

Currently out of stock
  • Dimmable LED grow light for grow areas of 120 × 120 cm with an optimized light spectrum for high yields.
  • Samsung LM301H full-spectrum LEDs deliver high light output – suitable for all growth stages.
  • Algorithmically placed diodes for even PAR coverage (PAR: photosynthetically active radiation) down to the leaf tips.
  • Precise light control: dimmable from 0–100 %, compatible with UIS controllers (UIS: Universal Infinity System) for schedules, grow cycles and app control.
  • Durable fanless unibody aluminum construction, IP-65 rated (dust-tight and protected against water jets) for humid and warm grow environments.

Product Description

A full-spectrum LED grow light with algorithmically positioned Samsung LM301H diodes, designed for high plant yields.

The optimized diode layout ensures even PAR coverage and deep illumination down to the leaf tips – for all growth stages from germination to flowering. The fanless unibody aluminum housing dissipates heat efficiently, extending diode lifespan. Metal brackets and adjustable rope hangers are included for easy installation. The grow light is designed for grow tents with reflective Mylar lining and is suitable for herbs, vegetables, fruit and other indoor plants. As part of the UIS™ platform, it connects via WiFi to the AC Infinity app.

  • 430 WPower consumption
  • 120 × 120 cmCoverage
  • 1,024 diodesSamsung LM301H
  • 2.75 µmol/JEfficiency
  • IP-65Dust-tight, protected against water jets

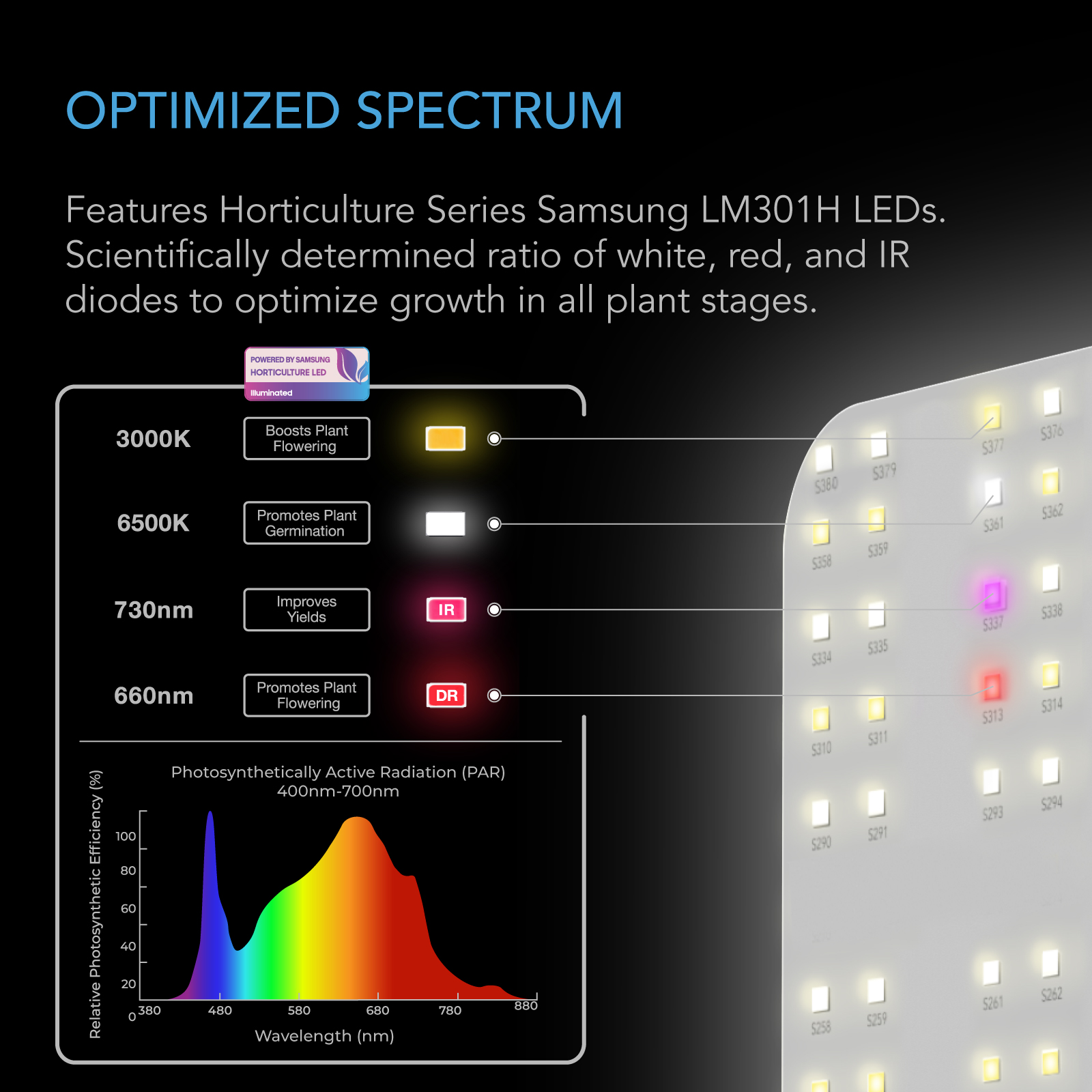

Optimized Light Spectrum

Samsung LM301H horticulture-series LEDs in a balanced ratio of white (3000 K and 6500 K), red (660 nm) and infrared (730 nm) diodes support plant growth and yields in the germination, vegetative and flowering stages.

Even Penetration

Each diode is strategically placed to achieve even PAR distribution and deep canopy penetration for complete coverage.

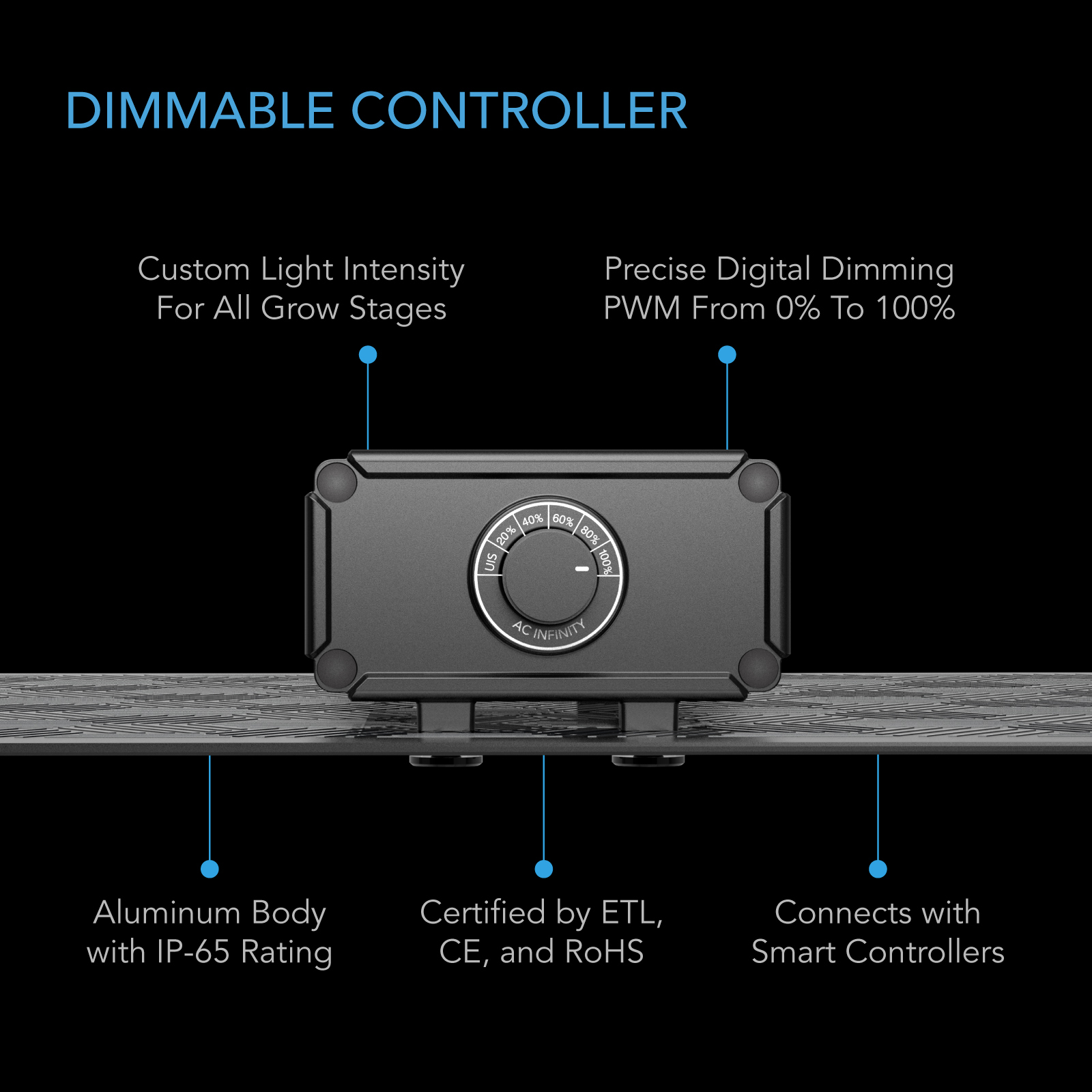

Dimmable Driver

The proprietary LED driver dims via a knob in 20% steps from 0 to 100 % and has a port for daisy-chaining additional grow lights (expansion adapter sold separately).

Durable and Certified

The fanless unibody aluminum housing is IP-65 rated (dust-tight and protected against water jets, but not waterproof). The grow light is ETL, CE and RoHS certified (ETL: Intertek certification mark).

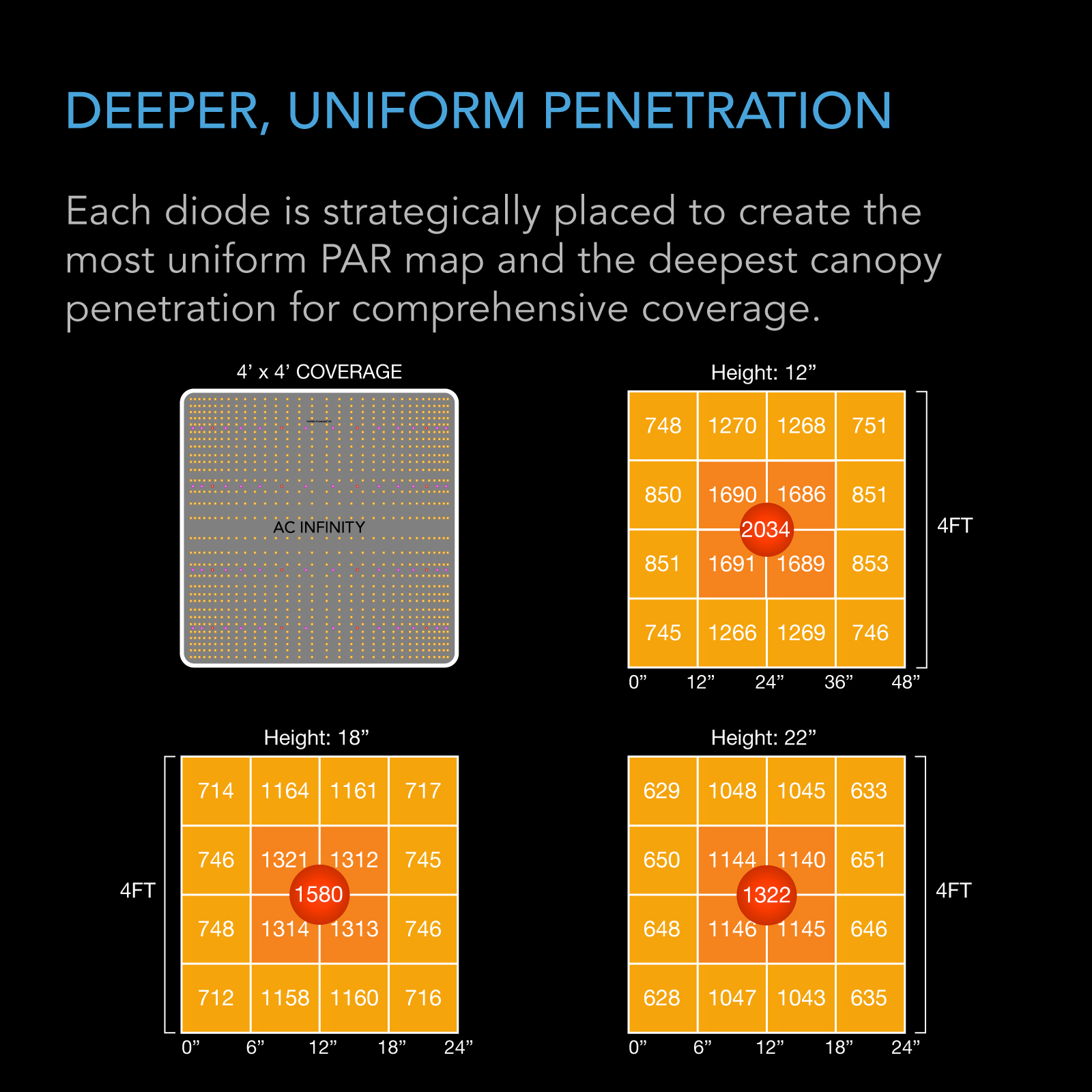

PPFD-Verteilung des IONBOARD S44

Deep, Even Penetration

The light distribution shows the PPFD values (PPFD: photosynthetic photon flux density) across the coverage area at different heights above the canopy.

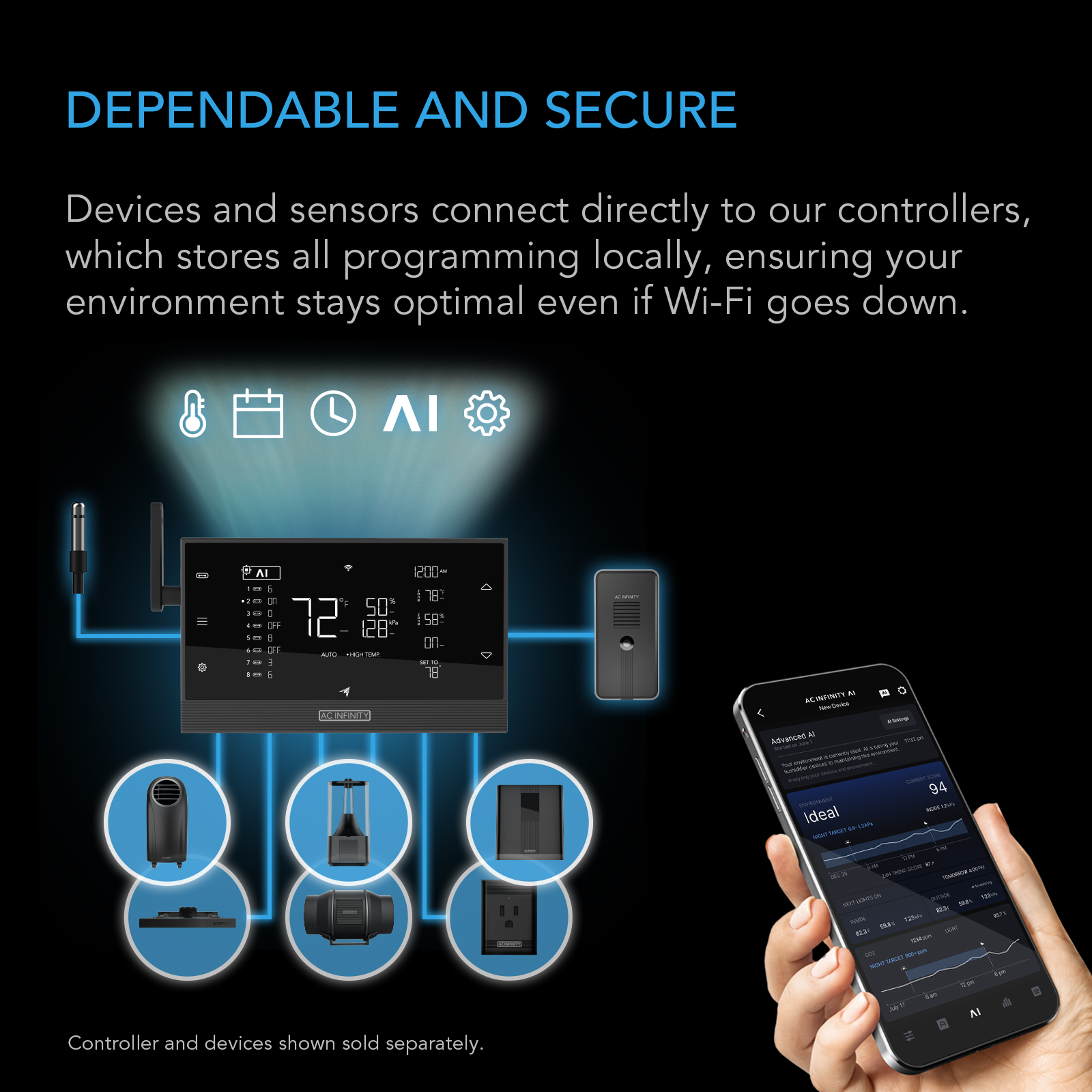

UIS PLATFORM

Dimmable on the Driver – UIS Controller Optional

Brightness is set directly on the driver. A UIS controller additionally integrates the grow light into the AC Infinity system.

On the driverDimming in 20% steps from 0 to 100 % via knob
With UIS controller and appSchedules, grow cycles and control via WiFi app

UIS controller sold separately, for example the CONTROLLER AI+.

Package Contents

  • 1×LED grow light IONBOARD S44
  • 1×Metal brackets
  • 1×Adjustable rope hangers
Safety and Warning Information

Power and Installation

  • Connect only to properly installed, grounded outlets that meet the electrical requirements of the product. The electrical installation must comply with local regulations.
  • Check local building codes and regulatory requirements before installation. If in doubt, consult a qualified electrician or specialist company.
  • Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
  • Use only original cables and suitable accessories from the manufacturer. Other cables, adapters or hangers may compromise safety.
  • Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric. Fire hazard.
  • All connections must be secure, correct and safely made before operation.
  • Do not rely solely on timers or automatic controls. Unplug the device during extended absences, maintenance or in an emergency.

Mounting, Heat and Light

  • The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware and observe the maximum load capacity of the hanging system.
  • Maintain the minimum distance to plants, surfaces and flammable materials as specified in the user manual. The device generates heat – adequate ventilation and air circulation are required.
  • Ventilation slots and heat sinks must not be blocked or covered. Risk of overheating.
  • When installing in grow tents or closed systems, always ensure adequate ventilation and heat dissipation to prevent overheating and fire hazards.
  • Do not cover, obstruct or install the device in enclosed furniture during operation.
  • Never look directly into the LEDs while they are on. Very bright light can damage the eyes. Use suitable eye protection when working near the device while it is on.
  • Do not drop the device or expose it to strong impacts or vibration.
  • Before operation, make sure there are no packaging parts, tools or other objects on or in the device.

Environment and Operation

  • Do not place or spill liquids on or near the device. The light is protected against water jets according to IP-65, but it is not waterproof.
  • Never use the device in explosive, chemically contaminated, extremely humid or wet environments.
  • The device is not intended for outdoor use or use in unprotected environments.
  • Do not operate the device unattended, especially not overnight without smoke detectors or fire protection equipment.
  • Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
  • Do not allow use by persons (including children) with reduced physical, sensory or mental capabilities without supervision.
  • Keep away from children and pets.

Maintenance, General and Disposal

  • Read the complete user manual before installation and operation and keep it for future reference.
  • Always unplug the device and let it cool down before cleaning, servicing or modifying it.
  • Regularly check for dust buildup, wear and proper function. Dust increases the risk of fire – clean the device carefully when it is switched off and cooled down.
  • Never open, repair or electrically modify the device yourself. Repairs or modifications may only be carried out by authorized qualified personnel. Improper interventions may cause electric shock or fire.
  • Improper installation or use may result in electric shock, fire, injury or damage.
  • Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information

Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com

Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com

View Full Product Info
Smart Controllers
  • Dimmable LED grow light for grow areas of 120 × 120 cm with an optimized light spectrum for high yields.
  • Samsung LM301H full-spectrum LEDs deliver high light output – suitable for all growth stages.
  • Algorithmically placed diodes for even PAR coverage (PAR: photosynthetically active radiation) down to the leaf tips.
  • Precise light control: dimmable from 0–100 %, compatible with UIS controllers (UIS: Universal Infinity System) for schedules, grow cycles and app control.
  • Durable fanless unibody aluminum construction, IP-65 rated (dust-tight and protected against water jets) for humid and warm grow environments.

Product Description

A full-spectrum LED grow light with algorithmically positioned Samsung LM301H diodes, designed for high plant yields.

The optimized diode layout ensures even PAR coverage and deep illumination down to the leaf tips – for all growth stages from germination to flowering. The fanless unibody aluminum housing dissipates heat efficiently, extending diode lifespan. Metal brackets and adjustable rope hangers are included for easy installation. The grow light is designed for grow tents with reflective Mylar lining and is suitable for herbs, vegetables, fruit and other indoor plants. As part of the UIS™ platform, it connects via WiFi to the AC Infinity app.

  • 430 WPower consumption
  • 120 × 120 cmCoverage
  • 1,024 diodesSamsung LM301H
  • 2.75 µmol/JEfficiency
  • IP-65Dust-tight, protected against water jets

Optimized Light Spectrum

Samsung LM301H horticulture-series LEDs in a balanced ratio of white (3000 K and 6500 K), red (660 nm) and infrared (730 nm) diodes support plant growth and yields in the germination, vegetative and flowering stages.

Even Penetration

Each diode is strategically placed to achieve even PAR distribution and deep canopy penetration for complete coverage.

Dimmable Driver

The proprietary LED driver dims via a knob in 20% steps from 0 to 100 % and has a port for daisy-chaining additional grow lights (expansion adapter sold separately).

Durable and Certified

The fanless unibody aluminum housing is IP-65 rated (dust-tight and protected against water jets, but not waterproof). The grow light is ETL, CE and RoHS certified (ETL: Intertek certification mark).

PPFD-Verteilung des IONBOARD S44

Deep, Even Penetration

The light distribution shows the PPFD values (PPFD: photosynthetic photon flux density) across the coverage area at different heights above the canopy.

UIS PLATFORM

Dimmable on the Driver – UIS Controller Optional

Brightness is set directly on the driver. A UIS controller additionally integrates the grow light into the AC Infinity system.

On the driverDimming in 20% steps from 0 to 100 % via knob
With UIS controller and appSchedules, grow cycles and control via WiFi app

UIS controller sold separately, for example the CONTROLLER AI+.

Package Contents

  • 1×LED grow light IONBOARD S44
  • 1×Metal brackets
  • 1×Adjustable rope hangers
Safety and Warning Information

Power and Installation

  • Connect only to properly installed, grounded outlets that meet the electrical requirements of the product. The electrical installation must comply with local regulations.
  • Check local building codes and regulatory requirements before installation. If in doubt, consult a qualified electrician or specialist company.
  • Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
  • Use only original cables and suitable accessories from the manufacturer. Other cables, adapters or hangers may compromise safety.
  • Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric. Fire hazard.
  • All connections must be secure, correct and safely made before operation.
  • Do not rely solely on timers or automatic controls. Unplug the device during extended absences, maintenance or in an emergency.

Mounting, Heat and Light

  • The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware and observe the maximum load capacity of the hanging system.
  • Maintain the minimum distance to plants, surfaces and flammable materials as specified in the user manual. The device generates heat – adequate ventilation and air circulation are required.
  • Ventilation slots and heat sinks must not be blocked or covered. Risk of overheating.
  • When installing in grow tents or closed systems, always ensure adequate ventilation and heat dissipation to prevent overheating and fire hazards.
  • Do not cover, obstruct or install the device in enclosed furniture during operation.
  • Never look directly into the LEDs while they are on. Very bright light can damage the eyes. Use suitable eye protection when working near the device while it is on.
  • Do not drop the device or expose it to strong impacts or vibration.
  • Before operation, make sure there are no packaging parts, tools or other objects on or in the device.

Environment and Operation

  • Do not place or spill liquids on or near the device. The light is protected against water jets according to IP-65, but it is not waterproof.
  • Never use the device in explosive, chemically contaminated, extremely humid or wet environments.
  • The device is not intended for outdoor use or use in unprotected environments.
  • Do not operate the device unattended, especially not overnight without smoke detectors or fire protection equipment.
  • Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
  • Do not allow use by persons (including children) with reduced physical, sensory or mental capabilities without supervision.
  • Keep away from children and pets.

Maintenance, General and Disposal

  • Read the complete user manual before installation and operation and keep it for future reference.
  • Always unplug the device and let it cool down before cleaning, servicing or modifying it.
  • Regularly check for dust buildup, wear and proper function. Dust increases the risk of fire – clean the device carefully when it is switched off and cooled down.
  • Never open, repair or electrically modify the device yourself. Repairs or modifications may only be carried out by authorized qualified personnel. Improper interventions may cause electric shock or fire.
  • Improper installation or use may result in electric shock, fire, injury or damage.
  • Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information

Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com

Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com

Manufacturer and Responsible Person Information

Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com

Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com

ManufacturerAC Infinity Inc.
Product NameIONBOARD S44
Product ModelAC-IBS44
UPC Code819137022546
User Manual

LED Grow Light

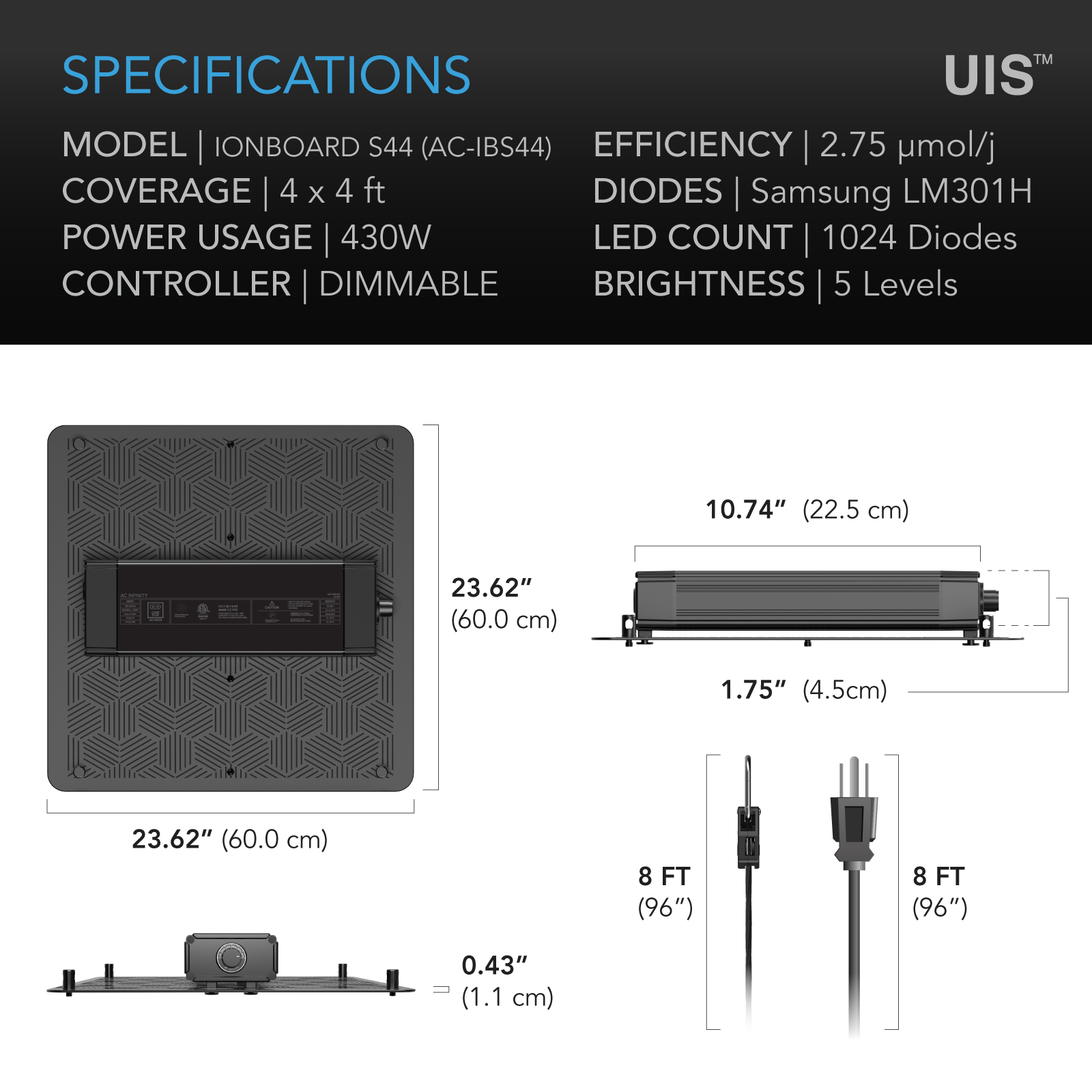

Dimensions

Light Dimensions600 × 600 mm
LED Board Thickness11 mm
Driver Dimensions273 × 45 mm
Coverage1,200 × 1,200 mm

Performance and Technical Specifications

DiodesSamsung LM301H
Number of LED Chips1,024
LED DriverIB-400 (AC Infinity)
Efficiency2.75 µmol/J
PPFD2,034 µmol/m²/s
Spectrum660 nm, 730 nm, 3000 K, 6500 K
Power Consumption430 W
Voltage100–277 V AC
Frequency50/60 Hz
Current1.87 A (at 230 V)
ControlDigital timer, dimmable
Plug TypeEU plug
Protection RatingIP-65 (dust-tight, protected against water jets)
Operating Humidity35 to 85 % RH
Operating Temperature0 to 60 °C
Lifespan50,000 hours
