Air Filtration Kit 200 mm with Speed Controller, Inline Fan, Carbon Filter
€359,00
incl. VAT, plus shipping costs
- A complete air filtration kit with everything needed to effectively cool and ventilate a grow tent and keep odors under control.
- Includes the CLOUDLINE A8 inline fan with speed controller – especially quiet and energy-efficient.
- Carbon filter with pre-filter, filled with Australian activated carbon rated 1200+ IAV (IAV: iodine adsorption value) for reliable odor neutralization.
- The four-layer flexible ducting reliably connects the fan and filter to the tent and routes the air cleanly to the outside.
- Connection size: Ø 200 mm | Airflow: 1230 m³/h | Noise level: 42 dBA | Carbon bed: 38 mm | Ducting length: 7.6 m
Product Description
An air filtration system for grow tents with all key components needed for effective ventilation of the grow environment.
This kit combines everything in one package to get started right away – no guesswork or tedious searching for individual parts. At its heart is the CLOUDLINE A8 inline fan with 10-speed controller, offering powerful performance with quiet operation. It is complemented by a carbon filter with Australian virgin charcoal that reliably prevents odors from escaping the tent. Both components are connected by four-layer flexible ducting that routes the airflow safely to the outside.
- 1230 m³/hFan airflow
- 42 dBANoise level
- 38 mmCarbon bed
- 7.6 mDucting
- Ø 200 mmConnection size

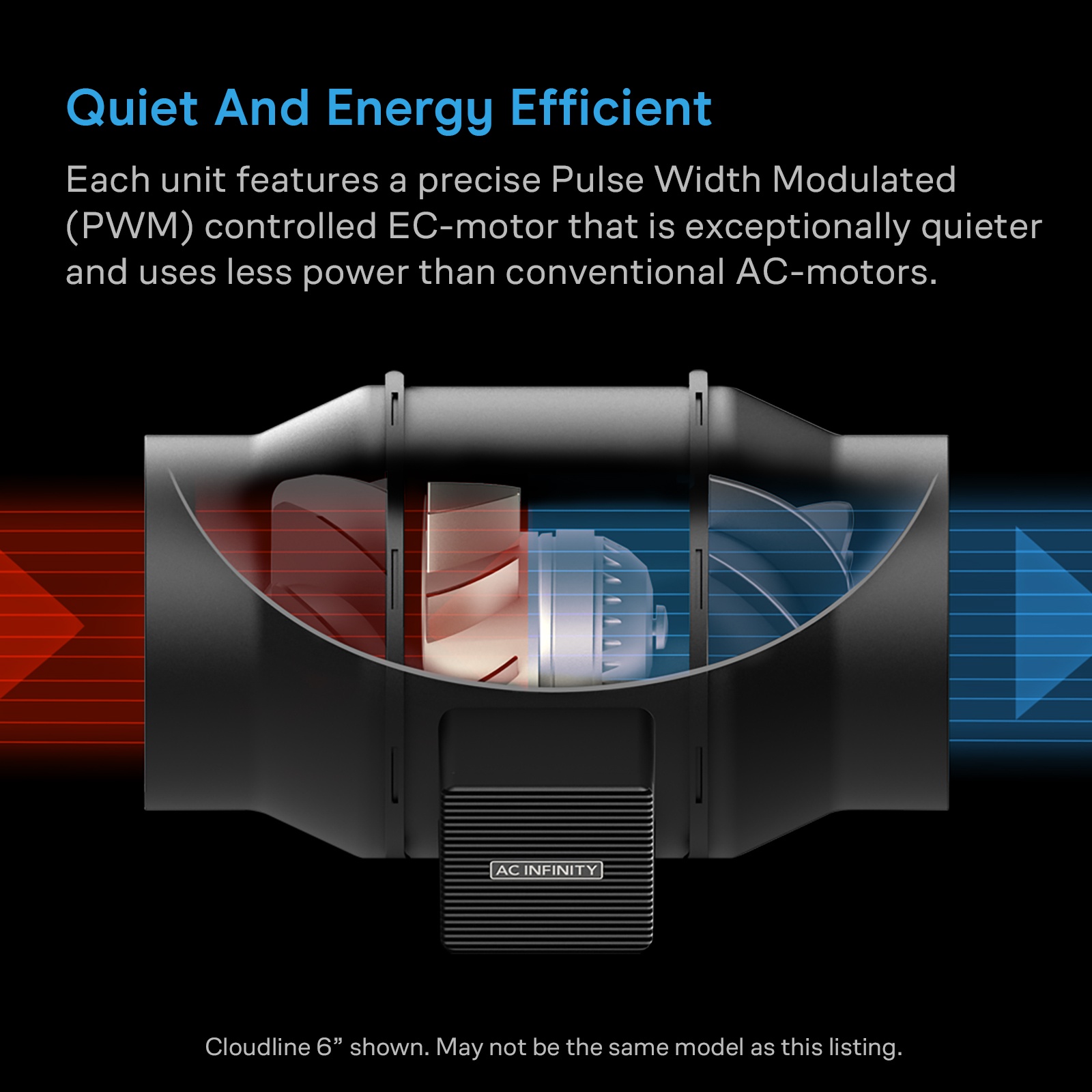

CLOUDLINE A8 Inline Fan
Using stator blades and two hydrodynamic air channels, the CLOUDLINE A8 achieves strong air circulation thanks to its mixed-flow design – even when air movement is heavily restricted. The motor housing with impeller and blades can be removed for cleaning. The plastic frame reduces vibration noise and allows mounting in any position. The dual ball bearings are rated for around 67,000 hours, and the IP-44 rating protects against splashing water and solid objects.

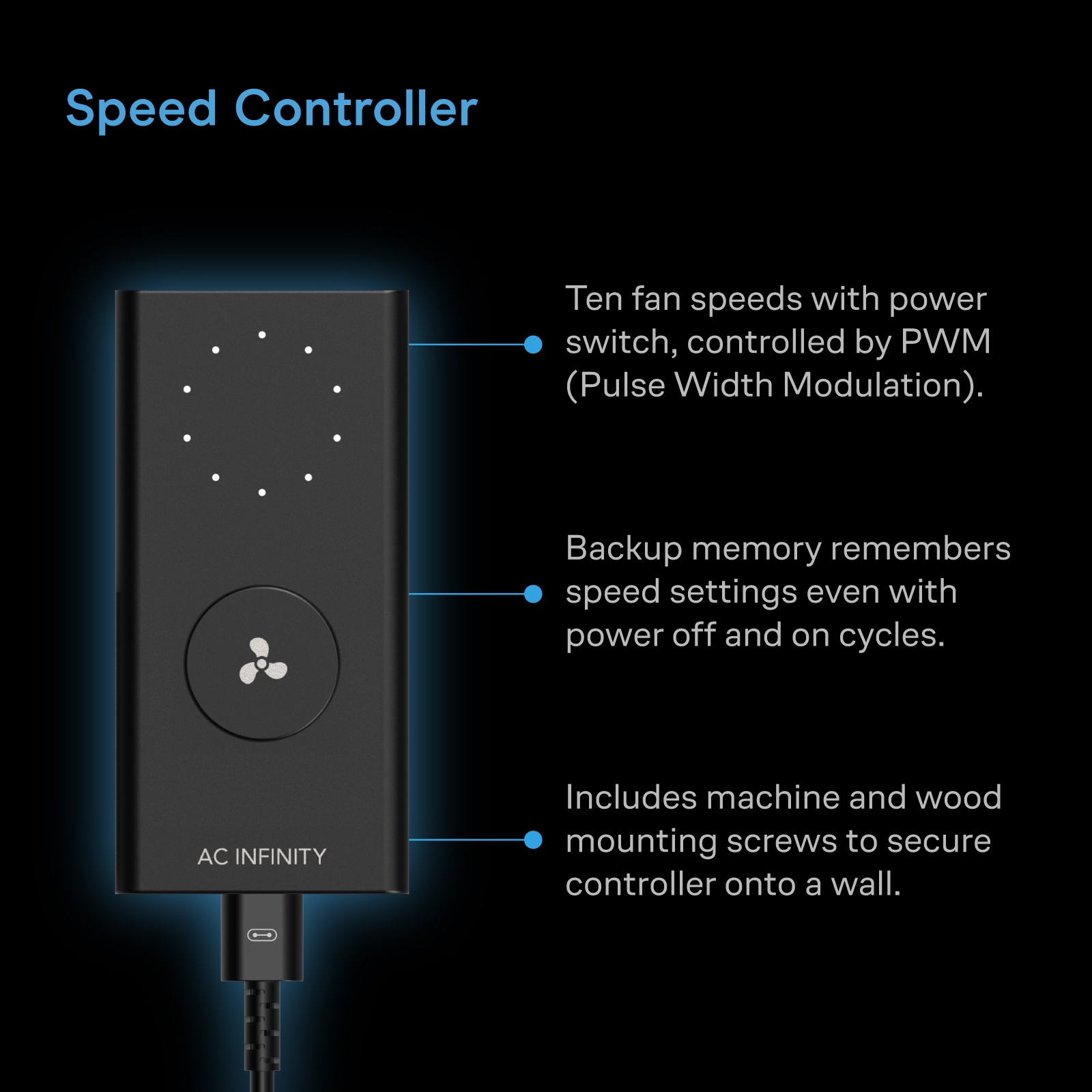

10-Speed Controller
The speed controller precisely adjusts airflow and noise level for different applications. Thanks to PWM control (PWM: pulse-width modulation), fan speeds can be regulated especially smoothly – even at very low speeds and without motor noise.

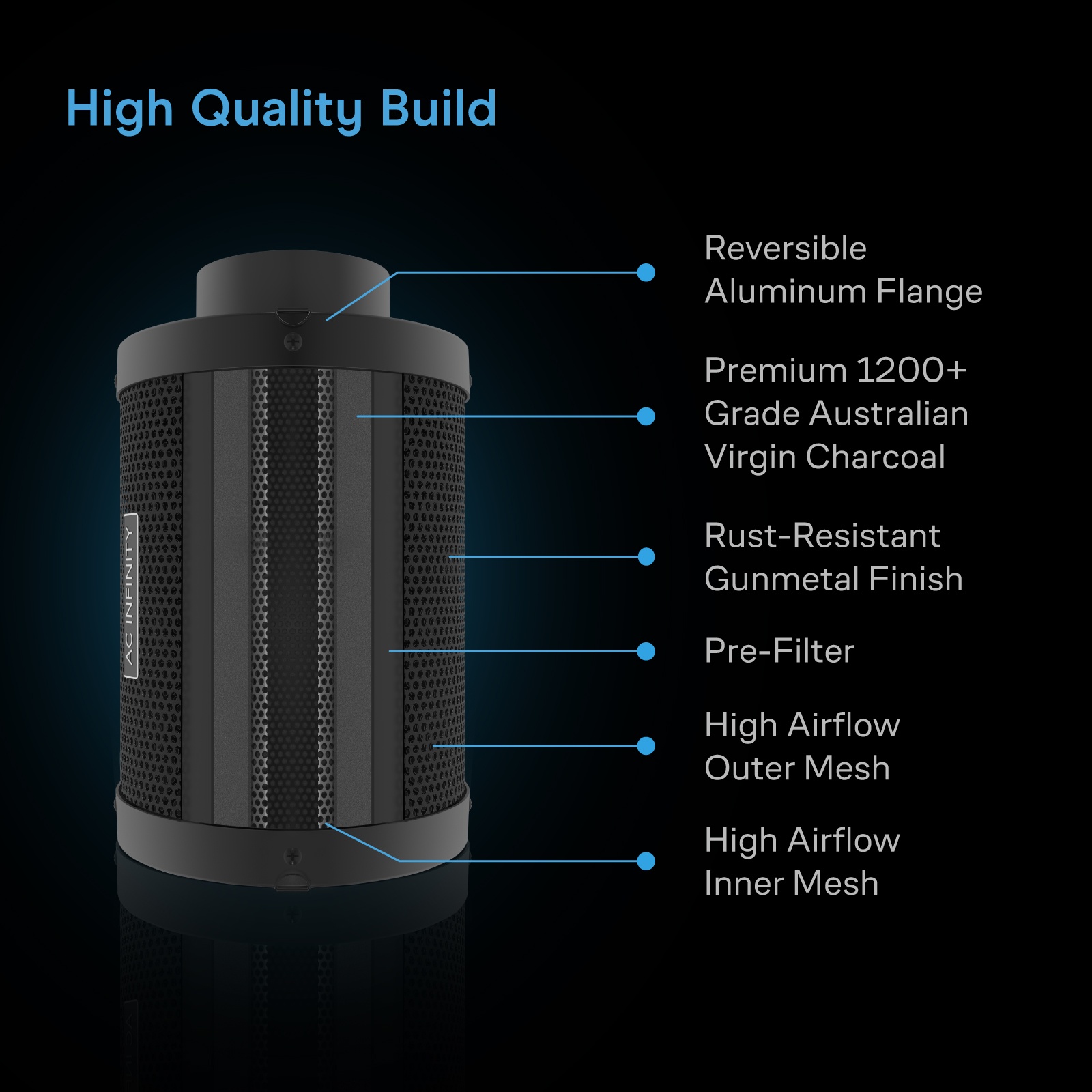

Carbon Filter
The 38 mm carbon bed of the carbon filter consists of Australian activated carbon with an IAV of 1200+ and RC412 microporosity. This allows the filter to absorb odor molecules considerably longer than conventional inline filters. The included pre-filter and the reversible flanges (to flip the carbon bed) extend the lifespan further. Aluminum flanges and galvanized steel mesh provide stability with full airflow.
Four-Layer Ducting
The 7.6 m ducting has an outer layer of PVC thermoplastic, an inner layer of aluminum foil and a steel spiral for structure. It connects the fan and filter to the tent and routes the air cleanly to the outside.
Everything in One Package
In addition to the fan, filter and ducting, the package includes duct clamps, pre-filter, rope hangers and hanging straps – for quick and easy installation.

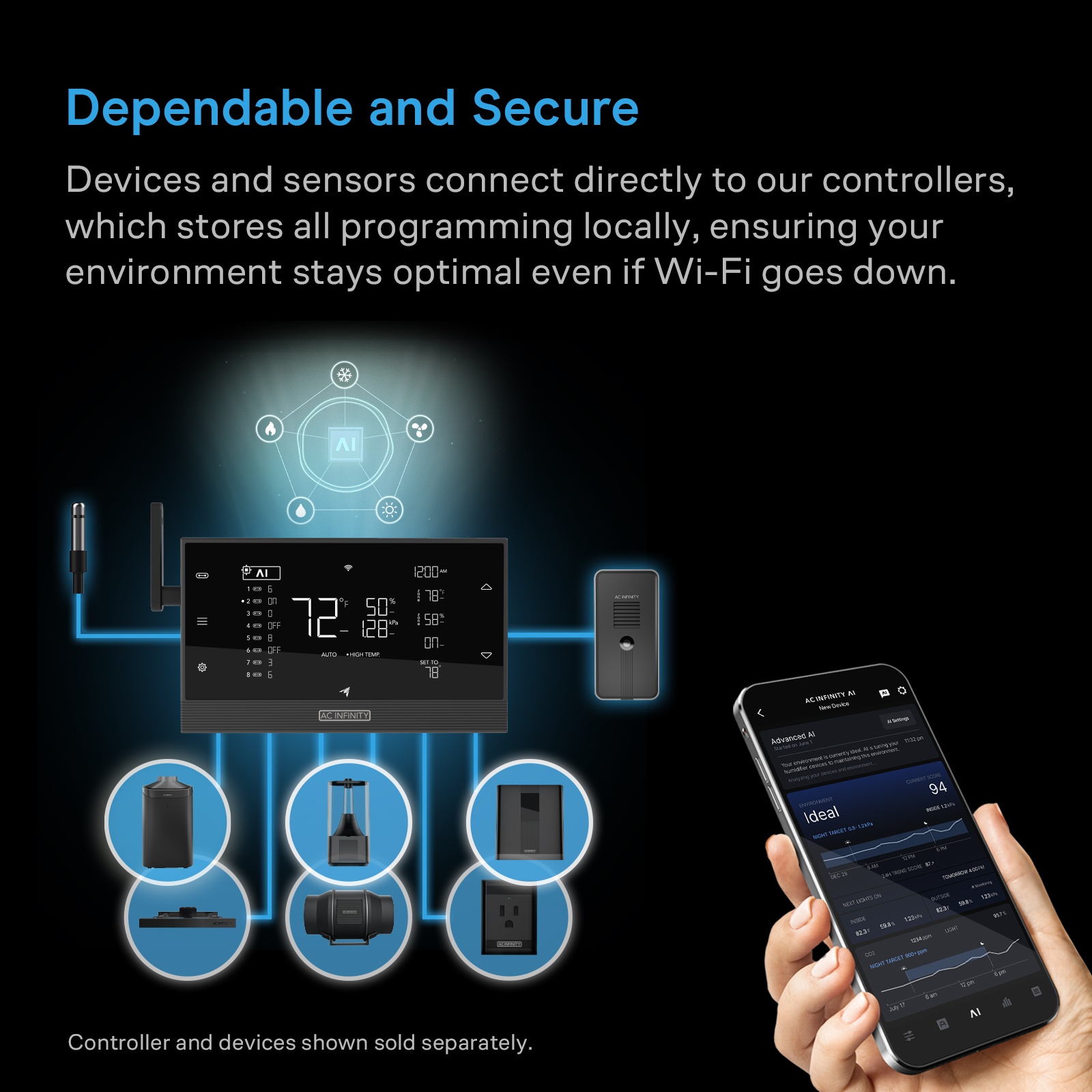

UIS PLATFORM
Speed controller included – UIS controller optional
The included speed controller covers the basic functions. For automatic control, the fan is compatible with UIS controllers (UIS: Universal Infinity System).
Included speed controller10 speeds with on/off switch and memory function in case of power failure
With UIS controllerAutomatic control via a compatible UIS controller
UIS controller sold separately, for example the CONTROLLER AI+.

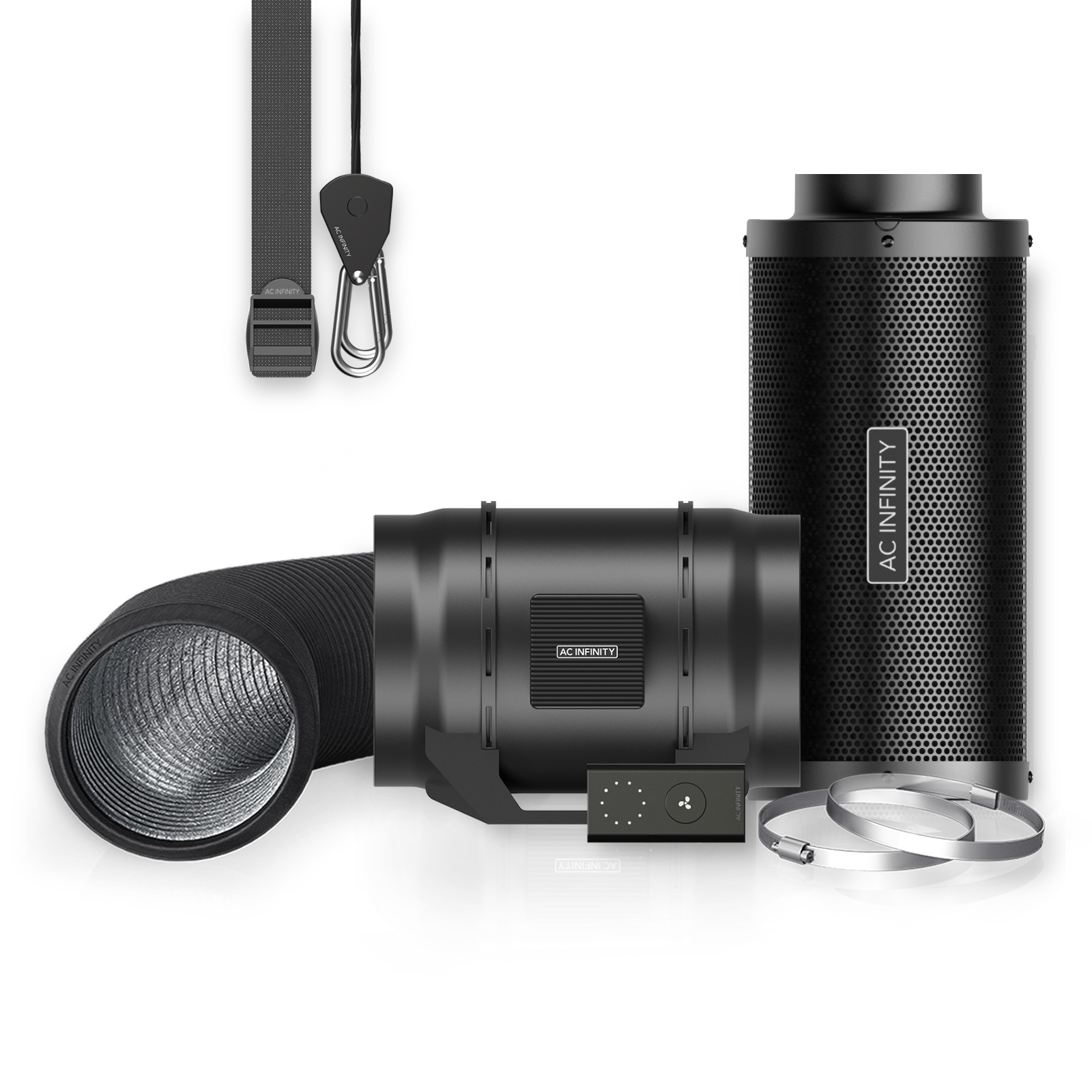

Package Contents
- 1×Inline duct fan CLOUDLINE A8
- 1×Speed controller
- 1×Carbon filter, 200 mm
- 1×Flexible 4-layer ducting, 200 mm, 7.6 m
- 1×Pre-filter for carbon filter, 200 mm, 2-pack
- 1×Stainless steel duct clamps, 200 mm, 2-pack
- 1×Adjustable heavy-duty rope hangers, 2 pairs
- 2×Hanging straps
- 1×UIS cable, male to male, 3.05 m
- 6×Cable holder
- 1×Adhesive mount for cable ties
- 4×Hook-and-loop ties
- 4×Wall anchors
- 4×Fan mounting screws
- 1×Wood screw set (wall mounting of the controller)
- 2×Controller plate screws
Safety and Warning Information
Power and Cables
- Connect only to properly installed, grounded outlets that meet the electrical requirements of the product.
- Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
- Use only original cables and suitable accessories from the manufacturer. Other cables or adapters may compromise safety.
- All connections must be secure, correct and safely made before operation.
- Use UIS cables only for control connections – never to connect to mains power.
- Always unplug the power cord before cleaning, servicing or modifying the device.
Fan and Filter in Operation
- The inline fan contains moving parts. Operate only when fully assembled, with covers correctly attached and in a safe environment.
- Do not insert foreign objects into the fan or filter. Never reach into the fan during operation.
- Before operation, make sure there are no tools, packaging parts or other objects inside the fan housing or filter.
- The ducting and filter must not be kinked, crushed or blocked – air must be able to circulate freely at all times.
- Do not cover the fan and filter during operation.
- When installing in grow tents or closed systems, always ensure adequate air intake and exhaust to prevent overheating and moisture buildup.
- The carbon filter must not get wet or come into contact with water – loss of function and risk of mold.
- Check the filter regularly for dust buildup and wear. Replace the filter if airflow is noticeably reduced or it is visibly dirty.
- Use the filter only for its intended purpose in grow applications or room air systems. Do not use for filtering toxic, corrosive or flammable fumes.
- Do not place or spill liquids on or near the device.
- Do not drop the device or expose it to strong impacts or vibration.
- Never use the device in explosive, chemically contaminated or extremely humid environments.
- The device is not intended for outdoor use.
- Use the device only for its intended purpose as a ventilation and filtration unit.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
- Keep away from children and pets.
Maintenance, General and Disposal
- Read the complete user manual before installation and operation and keep it for future reference.
- Repairs or modifications may only be carried out by authorized qualified personnel.
- Improper installation or use may result in injury, electrical hazards or damage.
- Do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- A complete air filtration kit with everything needed to effectively cool and ventilate a grow tent and keep odors under control.
- Includes the CLOUDLINE A8 inline fan with speed controller – especially quiet and energy-efficient.
- Carbon filter with pre-filter, filled with Australian activated carbon rated 1200+ IAV (IAV: iodine adsorption value) for reliable odor neutralization.
- The four-layer flexible ducting reliably connects the fan and filter to the tent and routes the air cleanly to the outside.
- Connection size: Ø 200 mm | Airflow: 1230 m³/h | Noise level: 42 dBA | Carbon bed: 38 mm | Ducting length: 7.6 m
Product Description
An air filtration system for grow tents with all key components needed for effective ventilation of the grow environment.
This kit combines everything in one package to get started right away – no guesswork or tedious searching for individual parts. At its heart is the CLOUDLINE A8 inline fan with 10-speed controller, offering powerful performance with quiet operation. It is complemented by a carbon filter with Australian virgin charcoal that reliably prevents odors from escaping the tent. Both components are connected by four-layer flexible ducting that routes the airflow safely to the outside.
- 1230 m³/hFan airflow
- 42 dBANoise level
- 38 mmCarbon bed
- 7.6 mDucting
- Ø 200 mmConnection size
CLOUDLINE A8 Inline Fan
Using stator blades and two hydrodynamic air channels, the CLOUDLINE A8 achieves strong air circulation thanks to its mixed-flow design – even when air movement is heavily restricted. The motor housing with impeller and blades can be removed for cleaning. The plastic frame reduces vibration noise and allows mounting in any position. The dual ball bearings are rated for around 67,000 hours, and the IP-44 rating protects against splashing water and solid objects.
10-Speed Controller
The speed controller precisely adjusts airflow and noise level for different applications. Thanks to PWM control (PWM: pulse-width modulation), fan speeds can be regulated especially smoothly – even at very low speeds and without motor noise.
Carbon Filter
The 38 mm carbon bed of the carbon filter consists of Australian activated carbon with an IAV of 1200+ and RC412 microporosity. This allows the filter to absorb odor molecules considerably longer than conventional inline filters. The included pre-filter and the reversible flanges (to flip the carbon bed) extend the lifespan further. Aluminum flanges and galvanized steel mesh provide stability with full airflow.
Four-Layer Ducting
The 7.6 m ducting has an outer layer of PVC thermoplastic, an inner layer of aluminum foil and a steel spiral for structure. It connects the fan and filter to the tent and routes the air cleanly to the outside.
Everything in One Package
In addition to the fan, filter and ducting, the package includes duct clamps, pre-filter, rope hangers and hanging straps – for quick and easy installation.
UIS PLATFORM
Speed controller included – UIS controller optional
The included speed controller covers the basic functions. For automatic control, the fan is compatible with UIS controllers (UIS: Universal Infinity System).
Included speed controller10 speeds with on/off switch and memory function in case of power failure
With UIS controllerAutomatic control via a compatible UIS controller
UIS controller sold separately, for example the CONTROLLER AI+.
Package Contents
- 1×Inline duct fan CLOUDLINE A8
- 1×Speed controller
- 1×Carbon filter, 200 mm
- 1×Flexible 4-layer ducting, 200 mm, 7.6 m
- 1×Pre-filter for carbon filter, 200 mm, 2-pack
- 1×Stainless steel duct clamps, 200 mm, 2-pack
- 1×Adjustable heavy-duty rope hangers, 2 pairs
- 2×Hanging straps
- 1×UIS cable, male to male, 3.05 m
- 6×Cable holder
- 1×Adhesive mount for cable ties
- 4×Hook-and-loop ties
- 4×Wall anchors
- 4×Fan mounting screws
- 1×Wood screw set (wall mounting of the controller)
- 2×Controller plate screws
Safety and Warning Information
Power and Cables
- Connect only to properly installed, grounded outlets that meet the electrical requirements of the product.
- Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
- Use only original cables and suitable accessories from the manufacturer. Other cables or adapters may compromise safety.
- All connections must be secure, correct and safely made before operation.
- Use UIS cables only for control connections – never to connect to mains power.
- Always unplug the power cord before cleaning, servicing or modifying the device.
Fan and Filter in Operation
- The inline fan contains moving parts. Operate only when fully assembled, with covers correctly attached and in a safe environment.
- Do not insert foreign objects into the fan or filter. Never reach into the fan during operation.
- Before operation, make sure there are no tools, packaging parts or other objects inside the fan housing or filter.
- The ducting and filter must not be kinked, crushed or blocked – air must be able to circulate freely at all times.
- Do not cover the fan and filter during operation.
- When installing in grow tents or closed systems, always ensure adequate air intake and exhaust to prevent overheating and moisture buildup.
- The carbon filter must not get wet or come into contact with water – loss of function and risk of mold.
- Check the filter regularly for dust buildup and wear. Replace the filter if airflow is noticeably reduced or it is visibly dirty.
- Use the filter only for its intended purpose in grow applications or room air systems. Do not use for filtering toxic, corrosive or flammable fumes.
- Do not place or spill liquids on or near the device.
- Do not drop the device or expose it to strong impacts or vibration.
- Never use the device in explosive, chemically contaminated or extremely humid environments.
- The device is not intended for outdoor use.
- Use the device only for its intended purpose as a ventilation and filtration unit.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
- Keep away from children and pets.
Maintenance, General and Disposal
- Read the complete user manual before installation and operation and keep it for future reference.
- Repairs or modifications may only be carried out by authorized qualified personnel.
- Improper installation or use may result in injury, electrical hazards or damage.
- Do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameAir Filtration Kit 200 mm
Product ModelAC-FKS8
UPC Code819137022072
User Manual
Inline Fan
CLOUDLINE A8 · Model AI-CLA8

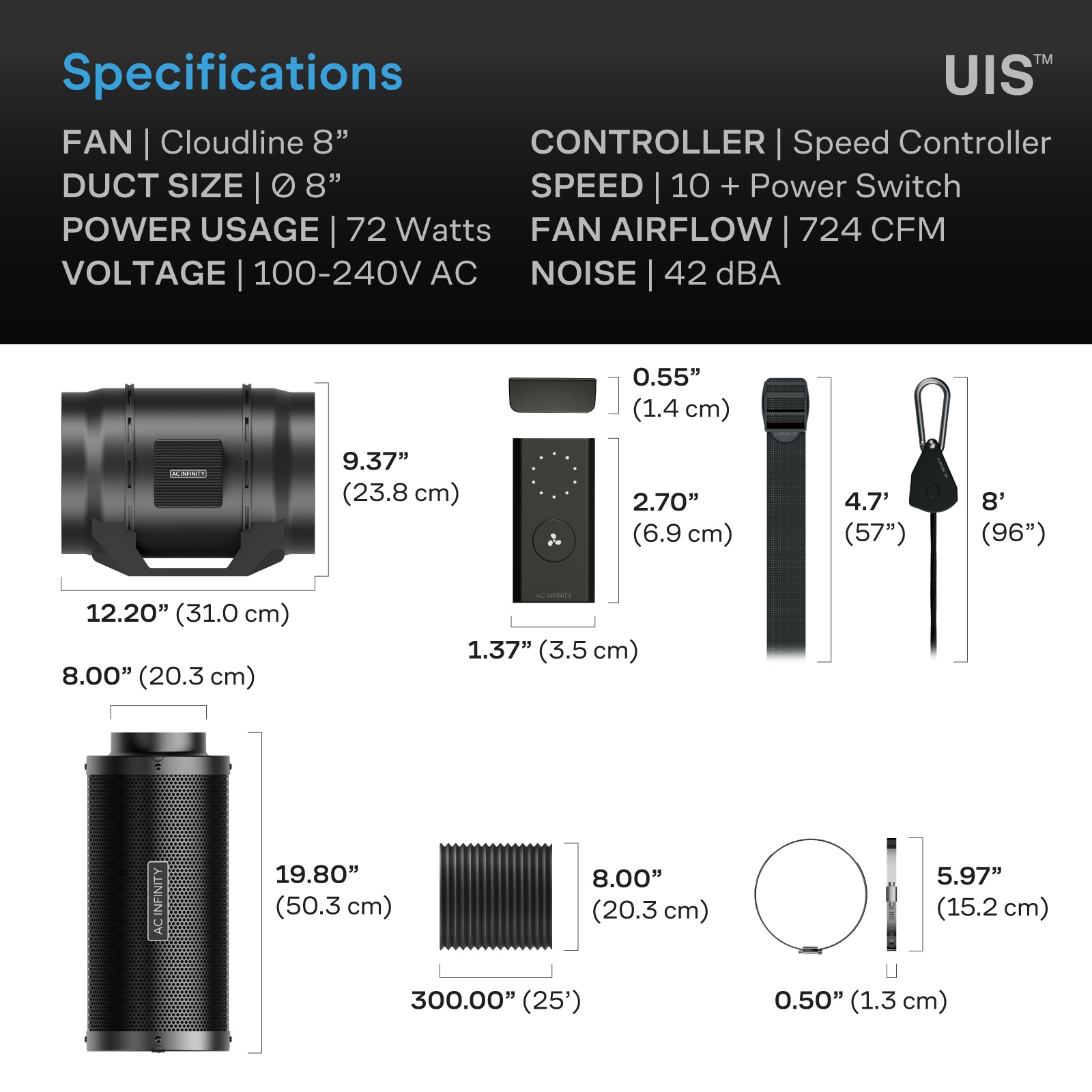

Dimensions
| Duct Size | Ø 200 mm |
|---|---|
| Overall Dimensions | 310 × 254 × 239 mm |
| Mounting Distance Hole to Hole | 90 × 50 mm |
| Screw Hole Size | Ø 5.5 mm |
| Cord Length to Controller | 1.83 m |
| Power Cord Length | 1.83 m |
| Speed Controller | 69 × 35 × 14 mm |
Performance and Technical Specifications
| Airflow | 1230 m³/h |
|---|---|
| Noise Level | 42 dBA |
| Static Pressure | 746 Pa |
| Speed Levels | 10 (with on/off switch) |
| Voltage | 100–240 V AC |
| Frequency | 50/60 Hz |
| Maximum Power Consumption | 190 W |
| Average Power Consumption | 72 W |
| Current | 2.80 A |
| Plug Type | EU plug (Type C/F) |
| Operating Humidity | 35 to 85 % RH |
| Operating Temperature | 0 to 60 °C |
| Protection Rating | IP-44 (protected against splashing water and solid objects) |
| Bearing | Dual ball bearings |
| Mounting Positions | Horizontal or vertical |
| L10 Lifespan | 67,000 hours |
Carbon Filter
Carbon Filter 200 mm · Model AC-DCF8
Dimensions
| Connection Diameter | Ø 200 mm |
|---|---|
| Overall Dimensions | 460 × 277 mm |
| Flange Length | 86 mm |
Performance and Technical Specifications
| Flange Material | Aluminum |
|---|---|
| Flange Design | Reversible |
| Mesh Material | Galvanized steel |
| Carbon Type | Australian virgin activated carbon RC412 |
| Carbon Grade | 1200+ IAV (iodine adsorption value) |
| Carbon Bed Thickness | 38 mm |
| Maximum Airflow | approx. 1308 m³/h |
Ducting
Flexible 4-Layer Ducting 200 mm
Dimensions
| Duct Size | Ø 200 mm |
|---|---|
| Length | 7.6 m |
Construction
| Outer Layer | PVC thermoplastic |
|---|---|
| Inner Layer | Aluminum foil |
| Structure | Steel spiral |
