AC-ADL8
UIS Lighting Adapter Type-B, for RJ11/12 Connector Lights with Resistor Dimmers
€18,99
incl. VAT, plus shipping costs
- Enables UIS™ controllers (UIS: Universal Infinity System) to control grow lights with RJ11 or RJ12 plugs and resistance dimming.
- For older-generation grow lights with resistance dimming; not all models are compatible – see the list of compatible grow lights.
- Automates light cycles, schedules and climate triggers; data charts and notifications in the app.
- Monitor and control the grow from anywhere by smartphone with a WiFi-enabled UIS controller.
- Part of the UIS platform of controllers and grow equipment that work together to create the ideal environment for plants.
Product Description

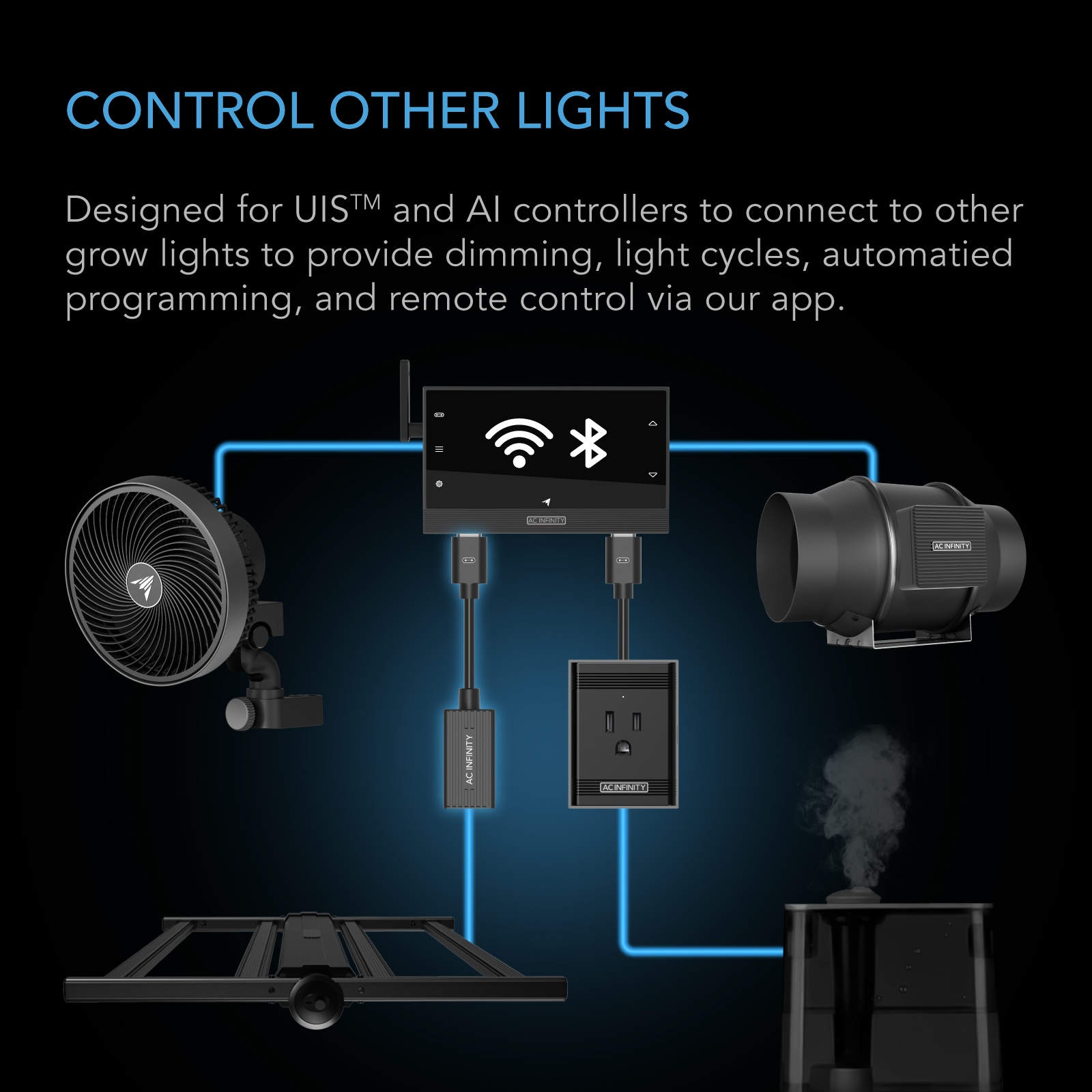

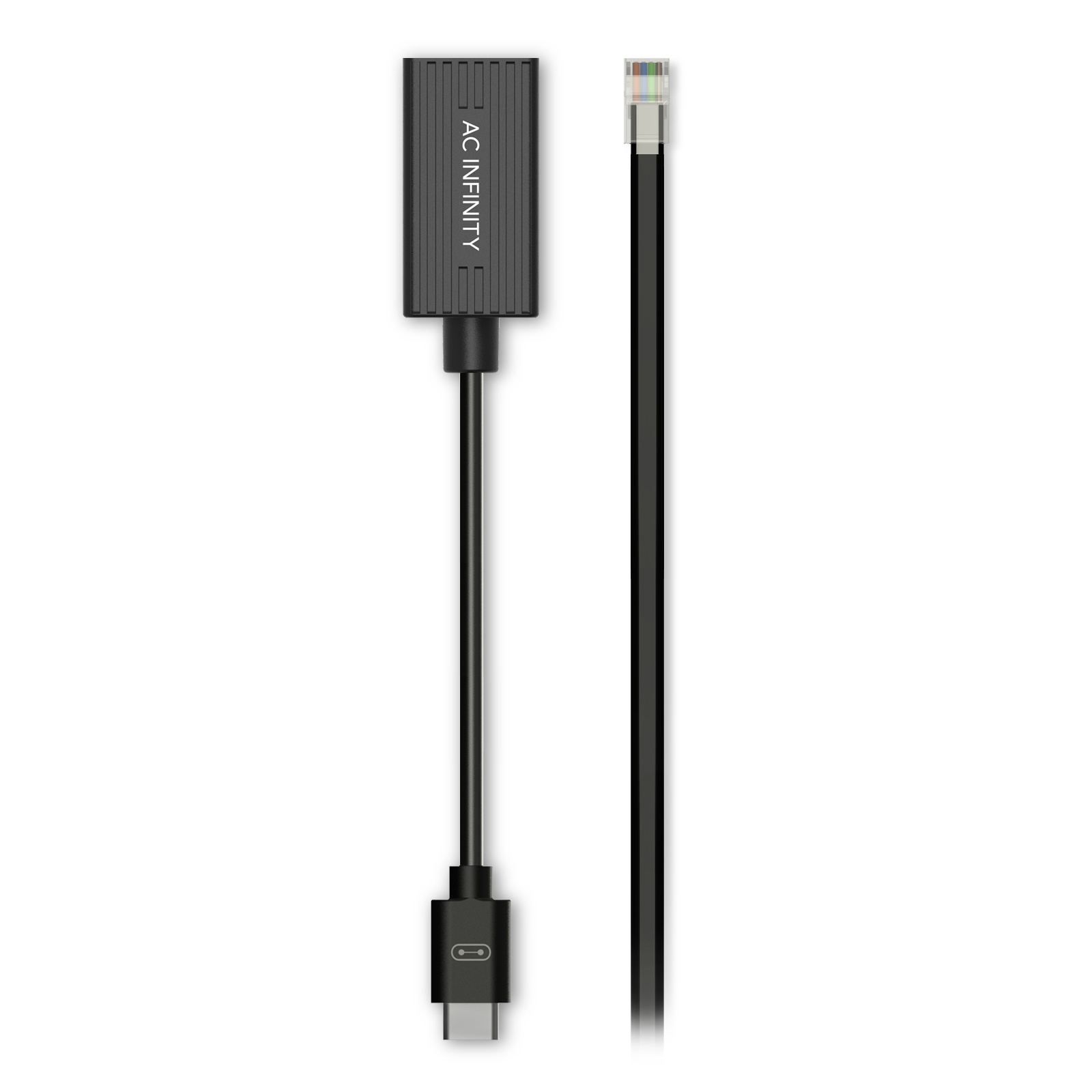

An adapter dongle that connects UIS controllers to grow lights from other manufacturers.
The Type-B adapter works with grow lights with RJ11 and RJ12 plugs that use resistance dimming. Connected to a controller, lighting can be automated with light cycles, schedules and dynamic responses to temperature and humidity. A 3 m RJ11/12 extension cable is included. The adapter is compatible with the CONTROLLER AI+ (sold separately) and CONTROLLER 69 PRO (for example included with the CLOUDLINE PRO T).
- RJ11 / RJ12Connection to the grow light
- ResistanceDimming standard
- 25.4 cmOverall length
- 3 mExtension cable included
- UISConnection to the controller
Integrate Third-Party Grow Lights
Grow lights with RJ11 or RJ12 plugs and resistance dimming become part of the UIS system – with light cycles, schedules and climate triggers.
Automation via App
Data charts, notifications and control from anywhere by smartphone with a WiFi-enabled UIS controller.
Matching Adapter
Lights with PWM or 0–10 V dimming need the Type-A adapter; for outlet devices there is the UIS control plug.
Compatibility
Most lights with resistance dimming work. Because dimming protocols differ, the dimming range is limited for some. Lights with spectrum control, PWM or voltage protocols are not compatible.
Note
A firmware update via the AC Infinity app may be required for the UIS controller to work with this adapter.
Compatible Grow Lights (Selection)
- CHILLED TECH – GROWCRAFT series, compatible with the push-lock dimmer to RJ12 adapter (model GC-DIM-TM-RJ12-1)
- HLG – all models with RJ-0–10 V dimming box, including those with Inventronics drivers
- MARS HYDRO – FC, FC-E, SP and TS series with MOSO or MEANWELL drivers. For MARS HYDRO drivers: use the Type-A adapter.
- MIGRO – ARAY series
- SPIDER FARMER – SE and SF series with MOSO or MEANWELL drivers. For SPIDER FARMER drivers: use the Type-A adapter.
All brands listed are registered trademarks of their respective companies. AC Infinity claims no affiliation with these brands.
Package Contents
- 1×Lighting adapter Type-B
- 1×RJ11/12 extension cable, 3 m
Safety and Warning Information
- Use only with compatible AC Infinity UIS controllers and devices.
- UIS connections are for control only – never connect to mains power.
- Insert plugs straight and without force; do not kink or crush cables or run them over sharp edges.
- Protect from moisture and use indoors only.
- Do not make any modifications; do not continue to use damaged parts.
- Keep small parts away from children and pets.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- Enables UIS™ controllers (UIS: Universal Infinity System) to control grow lights with RJ11 or RJ12 plugs and resistance dimming.
- For older-generation grow lights with resistance dimming; not all models are compatible – see the list of compatible grow lights.
- Automates light cycles, schedules and climate triggers; data charts and notifications in the app.
- Monitor and control the grow from anywhere by smartphone with a WiFi-enabled UIS controller.
- Part of the UIS platform of controllers and grow equipment that work together to create the ideal environment for plants.
Product Description
An adapter dongle that connects UIS controllers to grow lights from other manufacturers.
The Type-B adapter works with grow lights with RJ11 and RJ12 plugs that use resistance dimming. Connected to a controller, lighting can be automated with light cycles, schedules and dynamic responses to temperature and humidity. A 3 m RJ11/12 extension cable is included. The adapter is compatible with the CONTROLLER AI+ (sold separately) and CONTROLLER 69 PRO (for example included with the CLOUDLINE PRO T).
- RJ11 / RJ12Connection to the grow light
- ResistanceDimming standard
- 25.4 cmOverall length
- 3 mExtension cable included
- UISConnection to the controller
Integrate Third-Party Grow Lights
Grow lights with RJ11 or RJ12 plugs and resistance dimming become part of the UIS system – with light cycles, schedules and climate triggers.
Automation via App
Data charts, notifications and control from anywhere by smartphone with a WiFi-enabled UIS controller.
Matching Adapter
Lights with PWM or 0–10 V dimming need the Type-A adapter; for outlet devices there is the UIS control plug.
Compatibility
Most lights with resistance dimming work. Because dimming protocols differ, the dimming range is limited for some. Lights with spectrum control, PWM or voltage protocols are not compatible.
Note
A firmware update via the AC Infinity app may be required for the UIS controller to work with this adapter.
Compatible Grow Lights (Selection)
- CHILLED TECH – GROWCRAFT series, compatible with the push-lock dimmer to RJ12 adapter (model GC-DIM-TM-RJ12-1)
- HLG – all models with RJ-0–10 V dimming box, including those with Inventronics drivers
- MARS HYDRO – FC, FC-E, SP and TS series with MOSO or MEANWELL drivers. For MARS HYDRO drivers: use the Type-A adapter.
- MIGRO – ARAY series
- SPIDER FARMER – SE and SF series with MOSO or MEANWELL drivers. For SPIDER FARMER drivers: use the Type-A adapter.
All brands listed are registered trademarks of their respective companies. AC Infinity claims no affiliation with these brands.
Package Contents
- 1×Lighting adapter Type-B
- 1×RJ11/12 extension cable, 3 m
Safety and Warning Information
- Use only with compatible AC Infinity UIS controllers and devices.
- UIS connections are for control only – never connect to mains power.
- Insert plugs straight and without force; do not kink or crush cables or run them over sharp edges.
- Protect from moisture and use indoors only.
- Do not make any modifications; do not continue to use damaged parts.
- Keep small parts away from children and pets.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameUIS Lighting Adapter Type-B
Product ModelAC-ADL8
UPC Code819137023796
Adapter
Dimensions

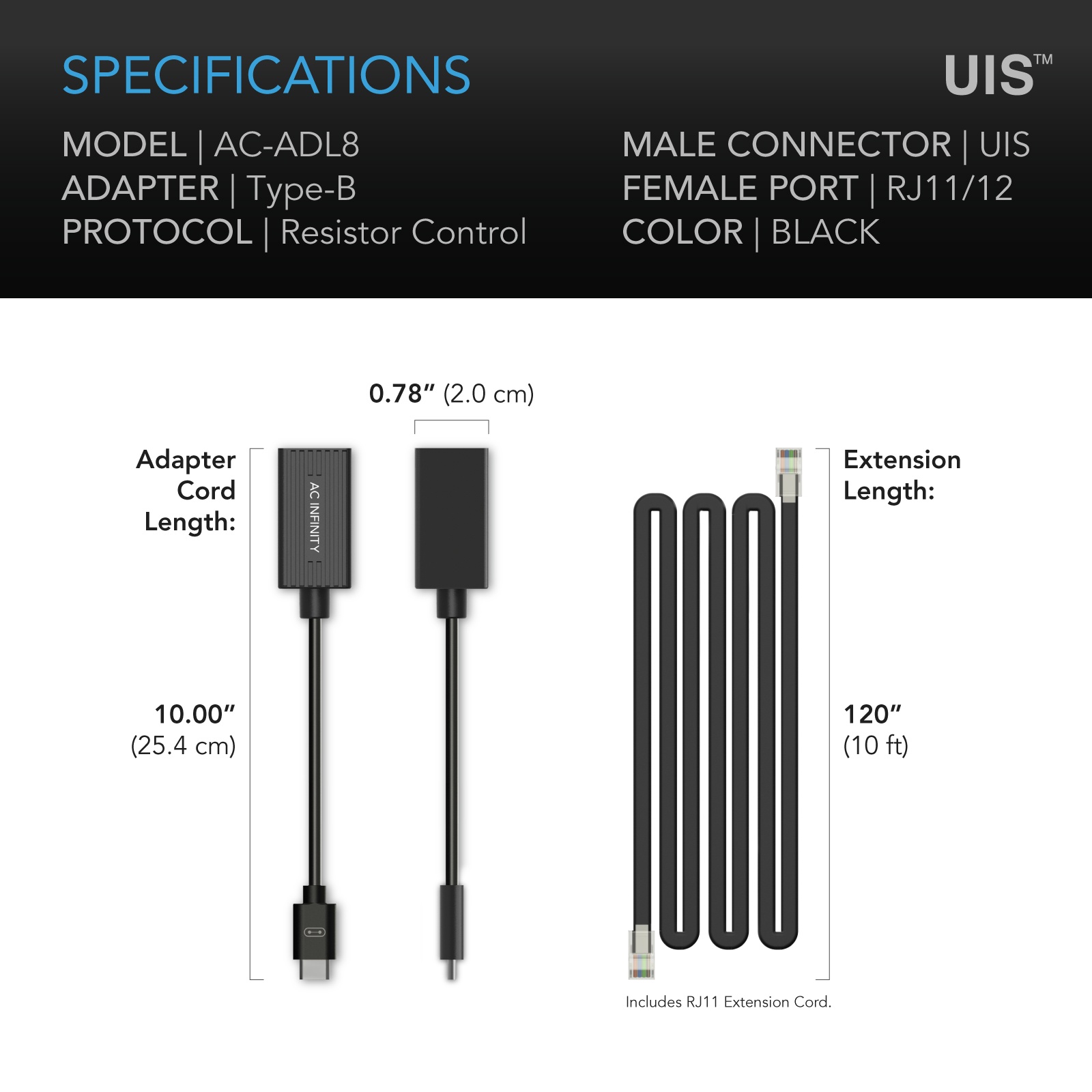

| Overall Length | 25.4 cm |
|---|---|
| Molex Depth | 0.8 cm |
| UIS Depth | 0.7 cm |
Connections
| Plug | UIS |
|---|---|
| Socket | RJ11, RJ12 |
| Dimming Standard | Resistance dimming |
| Compatible Controllers | CONTROLLER AI+, CONTROLLER 69 PRO |
