- Soil sensor developed specifically for the CONTROLLER AI+ to monitor and maintain soil moisture.
- Allows the controller to control irrigation devices precisely and send notifications via the AC Infinity app.

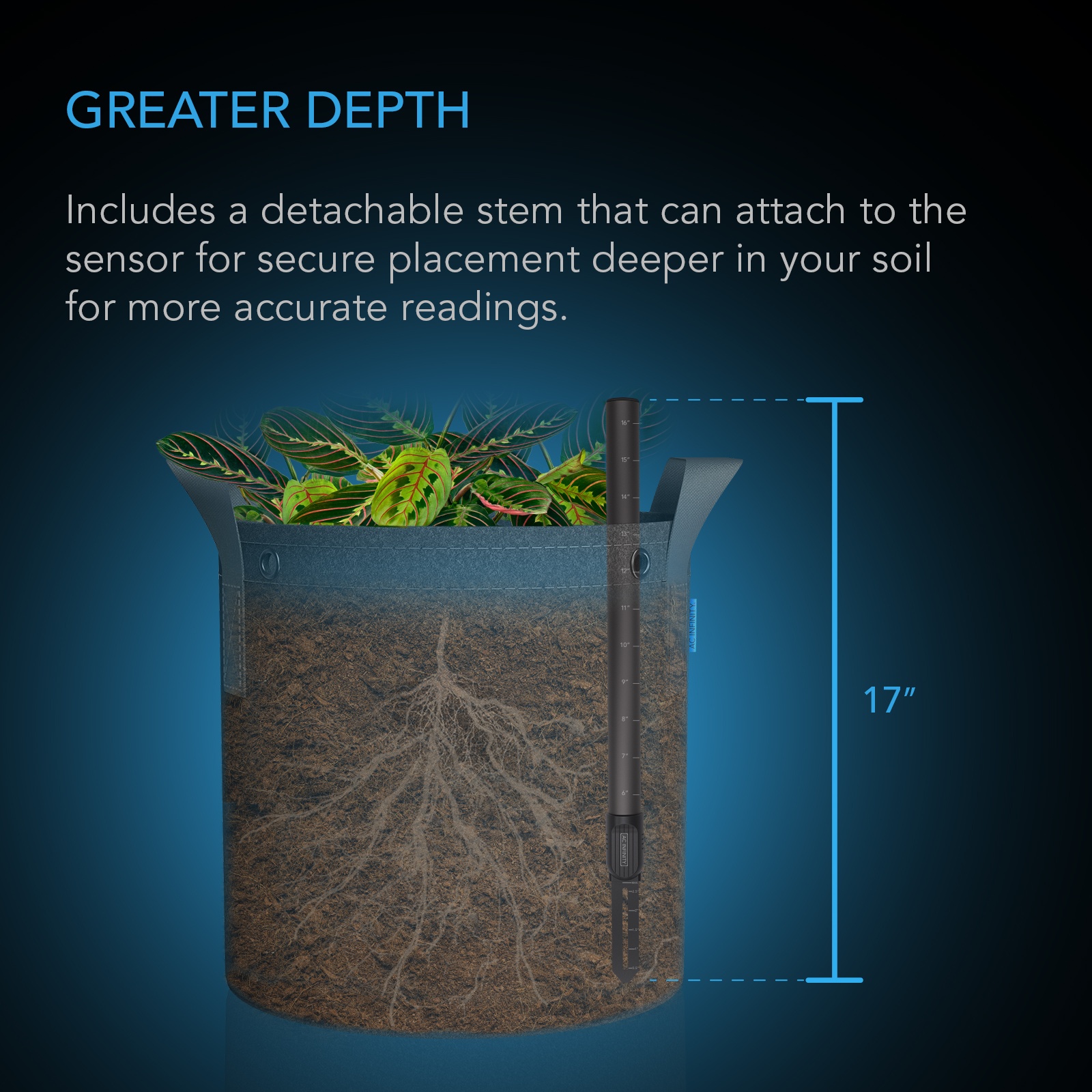

- The removable stake allows secure placement deeper in the soil; IP-67 rated (dust-tight and protected against temporary immersion).
- The probe is gentle on roots – for soil and potting soil in fabric pots, gardens and beds.
- By default, one soil sensor can be used per controller. For multiple soil sensors, a sensor splitter is expected to be available from Q1 2027.
Product Description
A soil sensor for the CONTROLLER AI+ that monitors soil moisture – an important factor for plant health and growth.
The removable stake allows secure placement deeper in the soil and delivers accurate, consistent readings. With its IP-67 rating and stake cap, the sensor is protected against liquids, moisture and dirt. Together with the controller and the WiFi app, it activates devices within defined settings – so plants receive the right amount of water at the right time.
- Moisture and saturationReadings
- 1 sRefresh rate
- ±5 %Accuracy
- IP-67Dust-tight, protected against immersion
- 3.66 mCable length

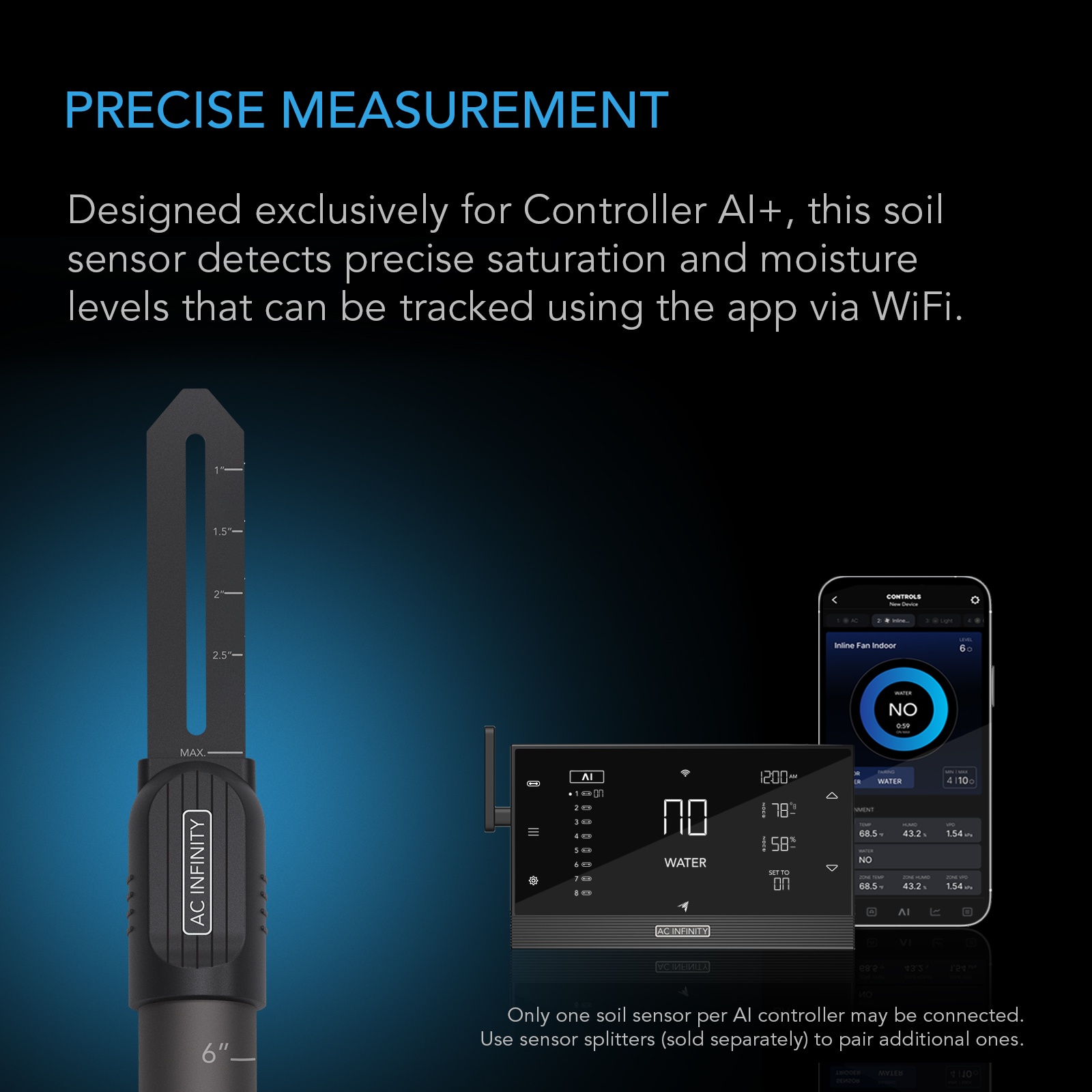

Smart Pairing
The probe measures soil moisture so the controller can activate irrigation devices within defined settings.

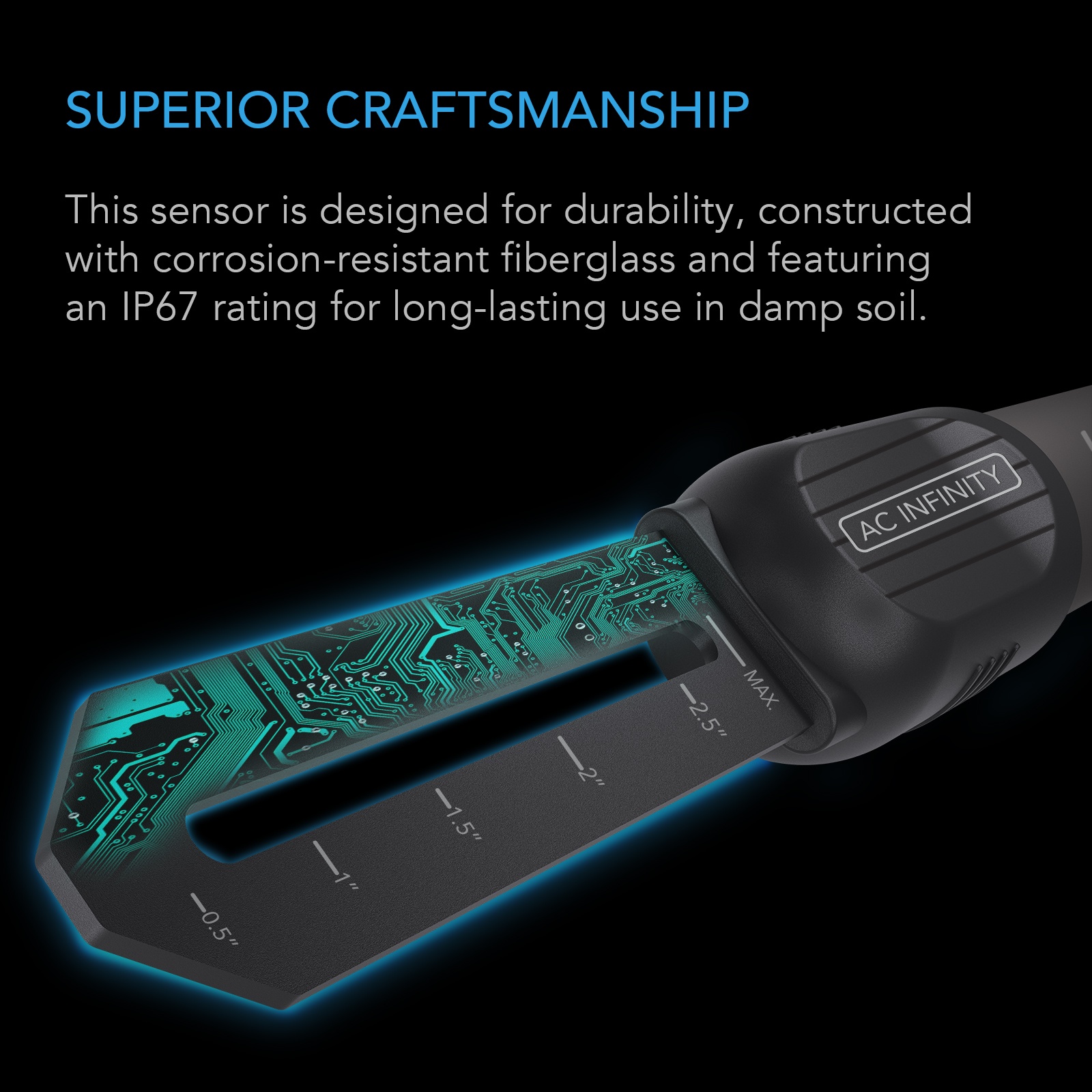

Durable
The IP-67 rating and stake cap protect against liquids, moisture and dirt even with intensive use.

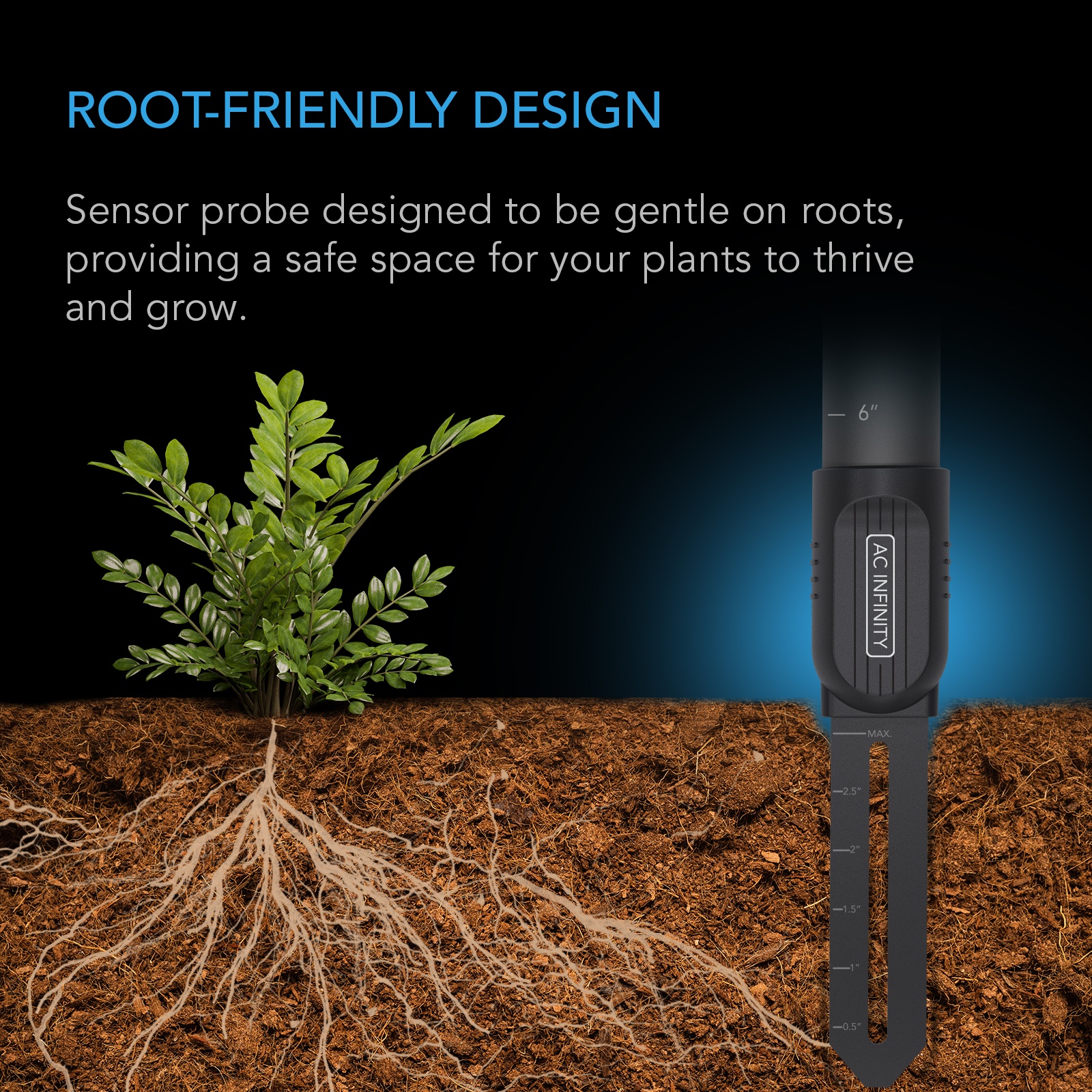

Gentle on Roots
The probe is made to be gentle on roots in soil and potting soil.
Notifications
The AC Infinity app provides alerts and advanced control functions.
Safety and Warning Information
- Use the sensor only with compatible AC Infinity controllers.
- Disconnect the sensor from the controller before cleaning or servicing.
- Do not use damaged cables – if damaged, take the sensor out of service.
- Route the sensor cable carefully – do not kink, crush, run over sharp edges or damage it.
- Protect the sensor from direct contact with water or splashing.
- Maintain an operating humidity between 35 and 60 % RH and a temperature between 0–50 °C.
- Use only indoors or in grow tents.
- Do not drop the sensor or expose it to strong impacts – it contains sensitive measuring technology.
- Keep the sensor away from children and pets.
- Read the user manual completely before first use.
- Do not modify the sensor – repairs only by authorized service.
- Improper use may cause malfunctions or damage.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment.
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com

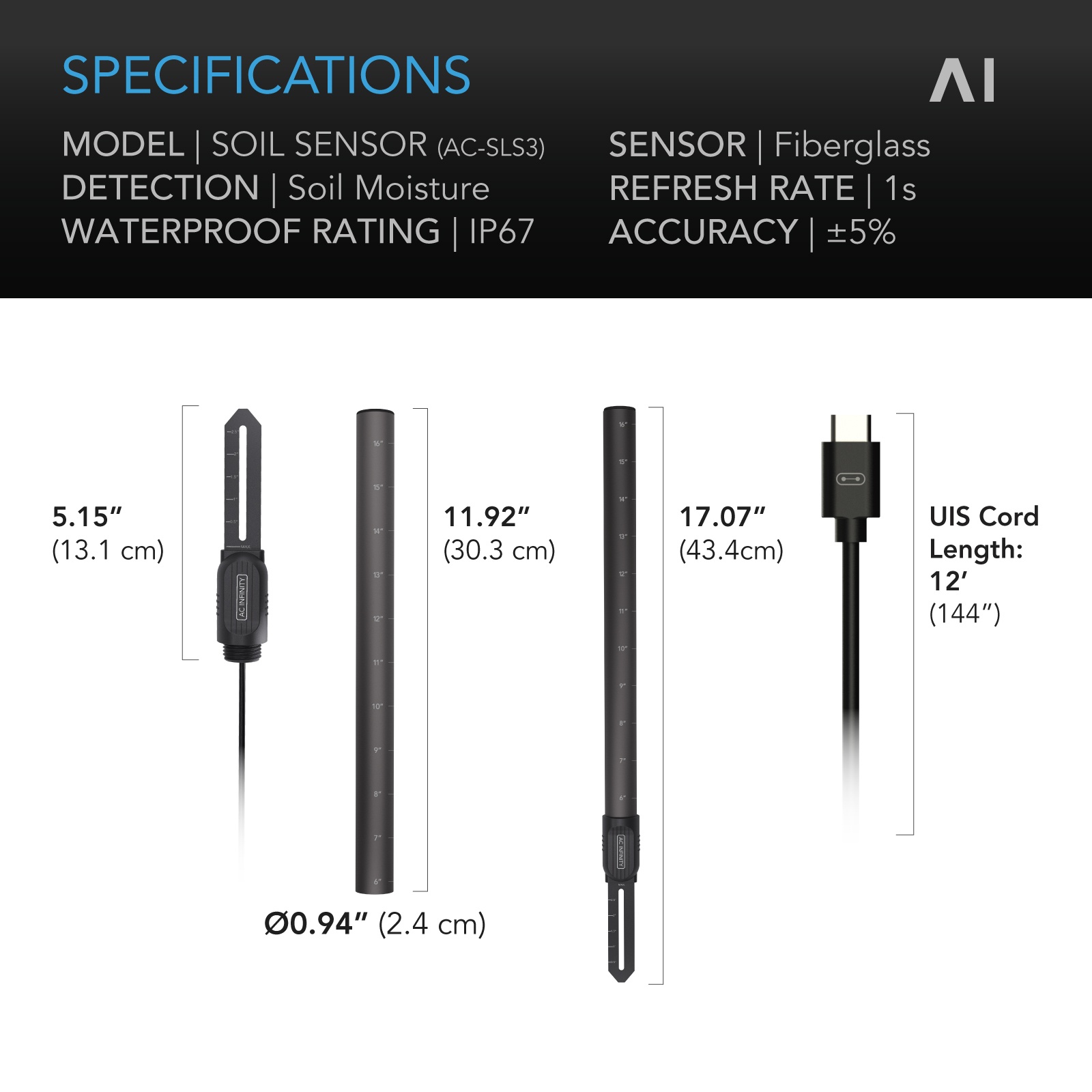

Sensor
Dimensions
| Sensor Dimensions | 3.6 × 7.2 × 1.4 cm |
|---|---|
| Cable Length | 3.66 m |
Performance and Technical Specifications
| Material | Fiberglass |
|---|---|
| Detection | Moisture, saturation |
| Refresh Rate | 1 second |
| Accuracy | ±5 % |
| Protection Rating | IP-67 |
| Compatibility | CONTROLLER AI+ |
