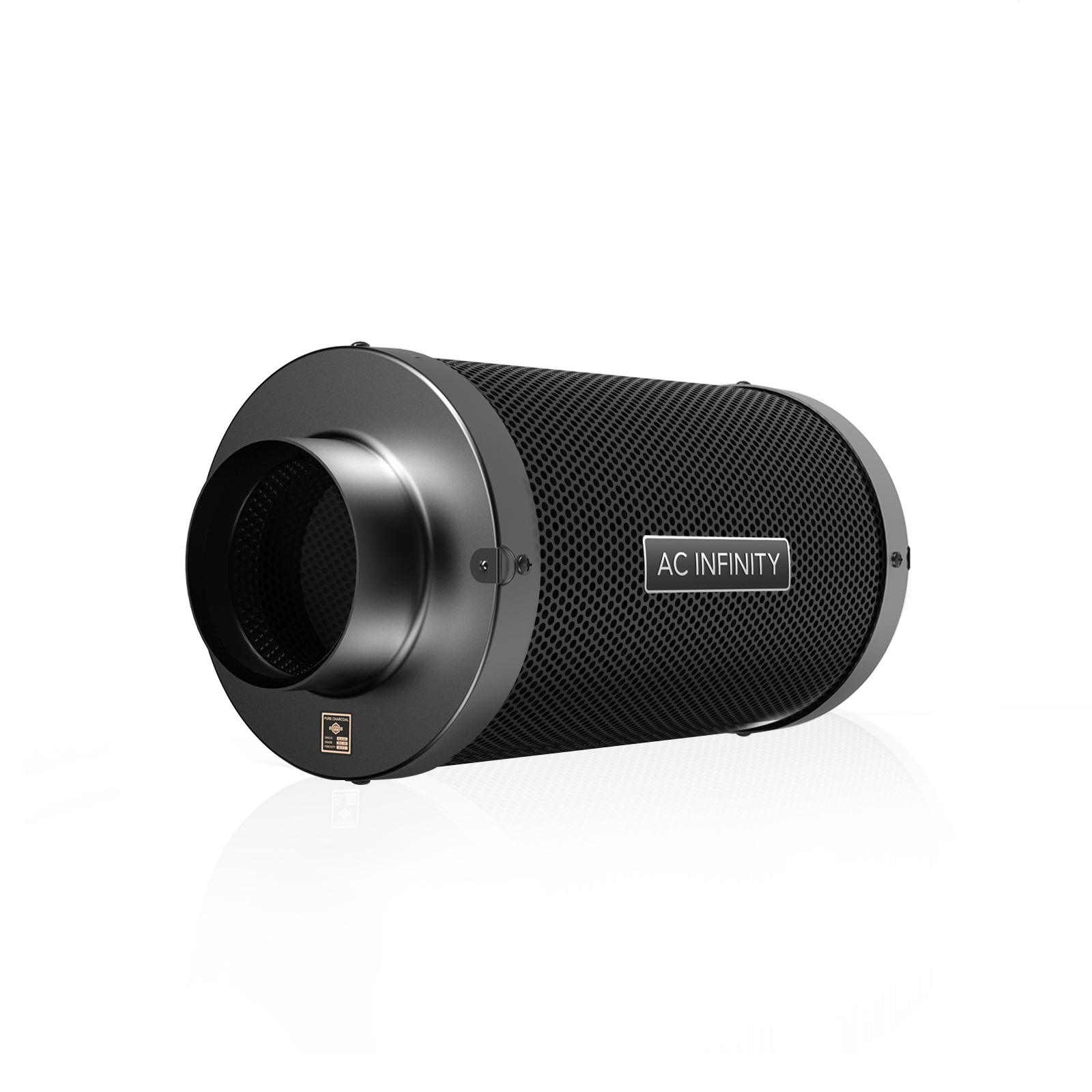

AC-DCF4
Duct Carbon Filter 100 mm with Australian Charcoal
€59,99
incl. VAT, plus shipping costs
- Ø 100 mm inline filter that prevents odors and chemicals from escaping grow tents and hydroponic rooms.
- Premium Australian activated carbon with high adsorption capacity and long lifespan.
- Blued metal with gunmetal finish – durable and rust-resistant even in high humidity.
- Aluminum flanges and galvanized steel mesh; includes two hanging straps and two pre-filters.
- Connection: Ø 100 mm | Length: 300 mm | Airflow: approx. 357 m³/h | Carbon: Australian RC412 with 1200+ IAV | Carbon bed: 38 mm
Product Description
A high-airflow air filter that eliminates odors and chemicals, filled with premium Australian virgin activated carbon.
The carbon bed with RC412 pore structure ensures a high adsorption rate and a long lifespan. Aluminum flanges and galvanized steel mesh with gunmetal finish withstand corrosion and high humidity. The filter can be used with an inline fan for intake and exhaust; its flanges can be reversed to extend the lifespan further.
- Ø 100 mmConnection
- approx. 357 m³/hMax. airflow
- 38 mmCarbon bed
- 1200+ IAVIodine adsorption value
- 300 × 177 mmDimensions

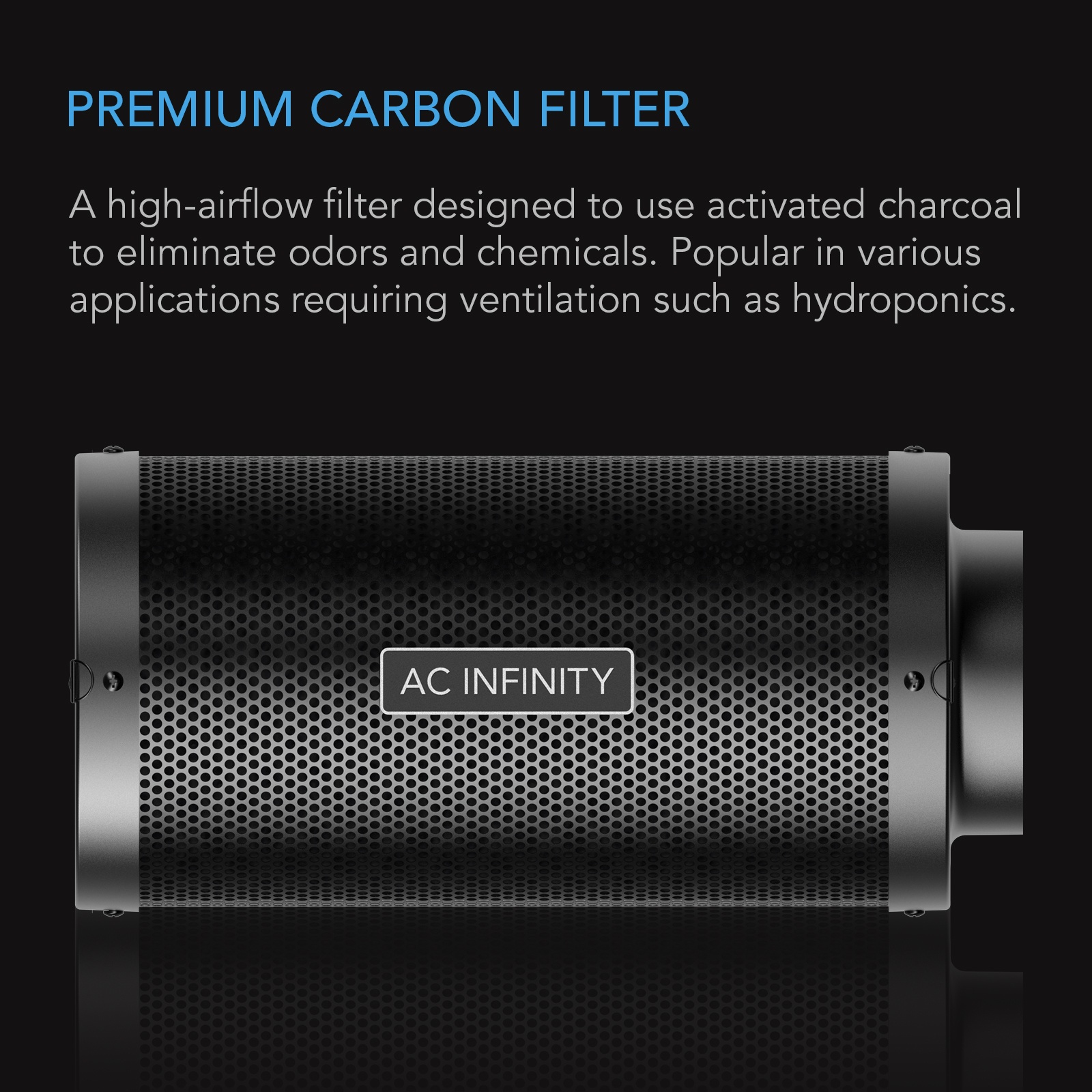

Premium Activated Carbon
Australian virgin charcoal with an IAV (iodine adsorption value) of 1200+ in a 38 mm thick carbon bed. The high microporosity and large mesh openings enable a high adsorption rate without restricting airflow and considerably extend the lifespan.

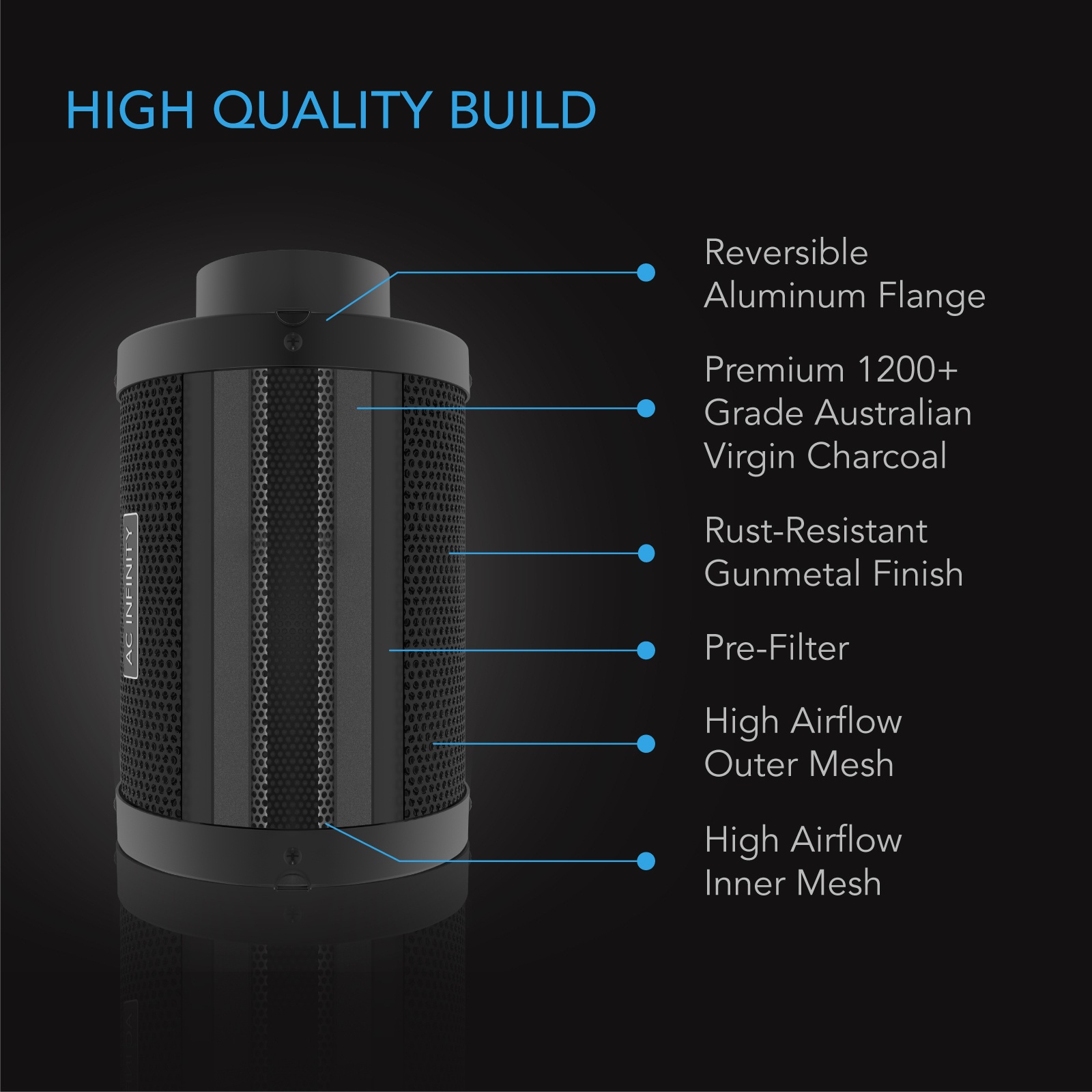

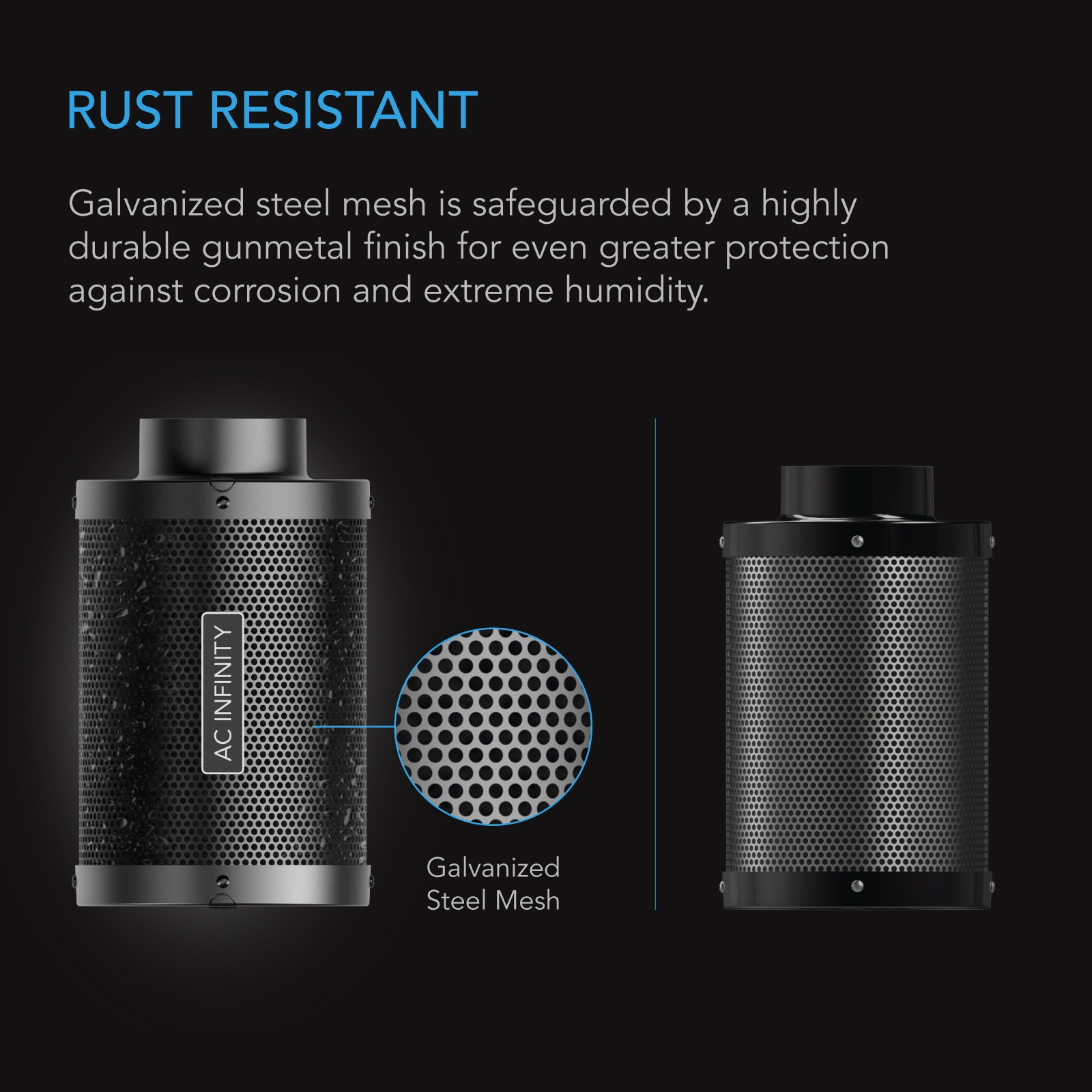

Sturdy Construction
Aluminum flanges and galvanized steel mesh with a rust-resistant gunmetal finish withstand corrosion and high humidity.

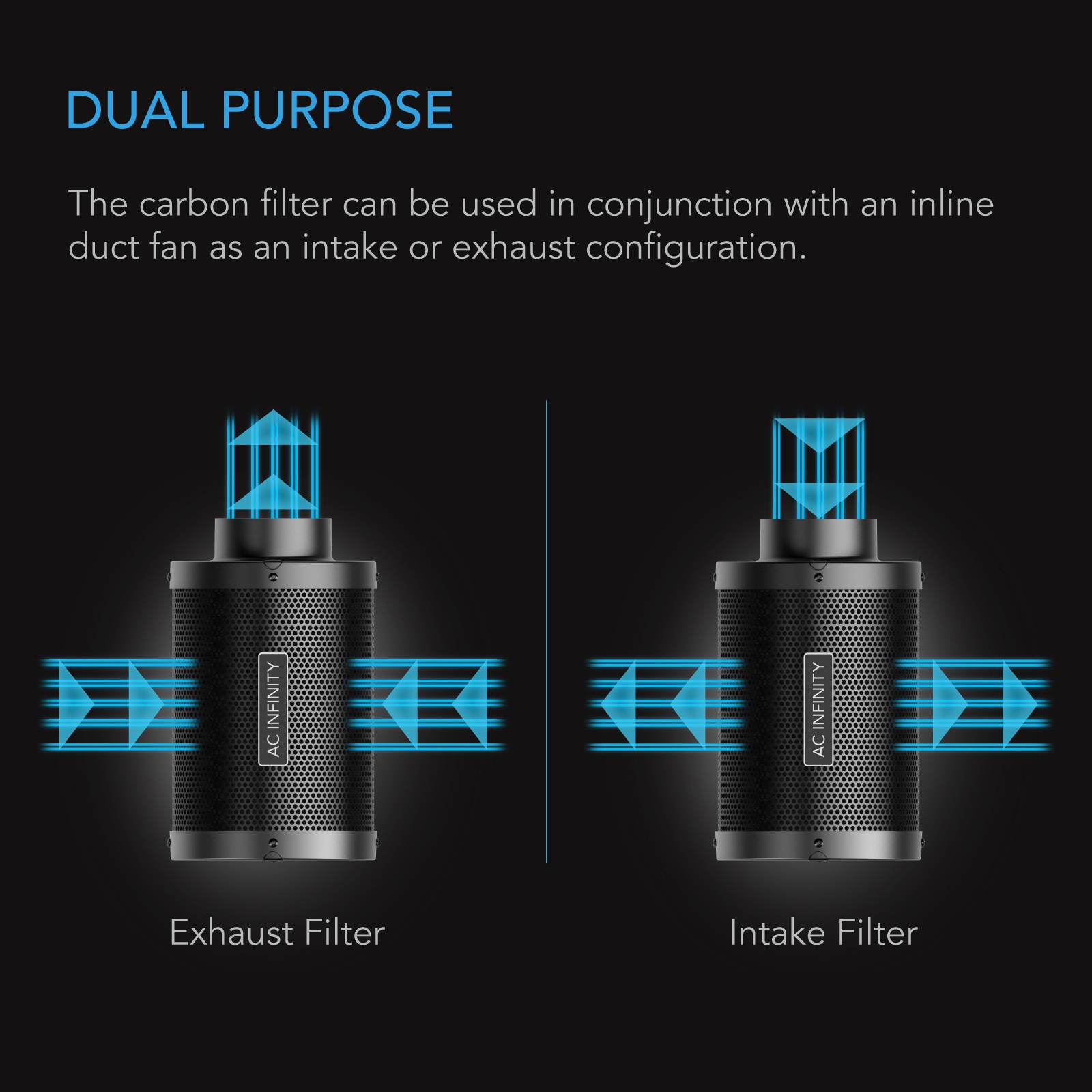

Intake or Exhaust
The filter works with an inline fan in intake and exhaust configurations. Reversible flanges extend the lifespan of the carbon bed.

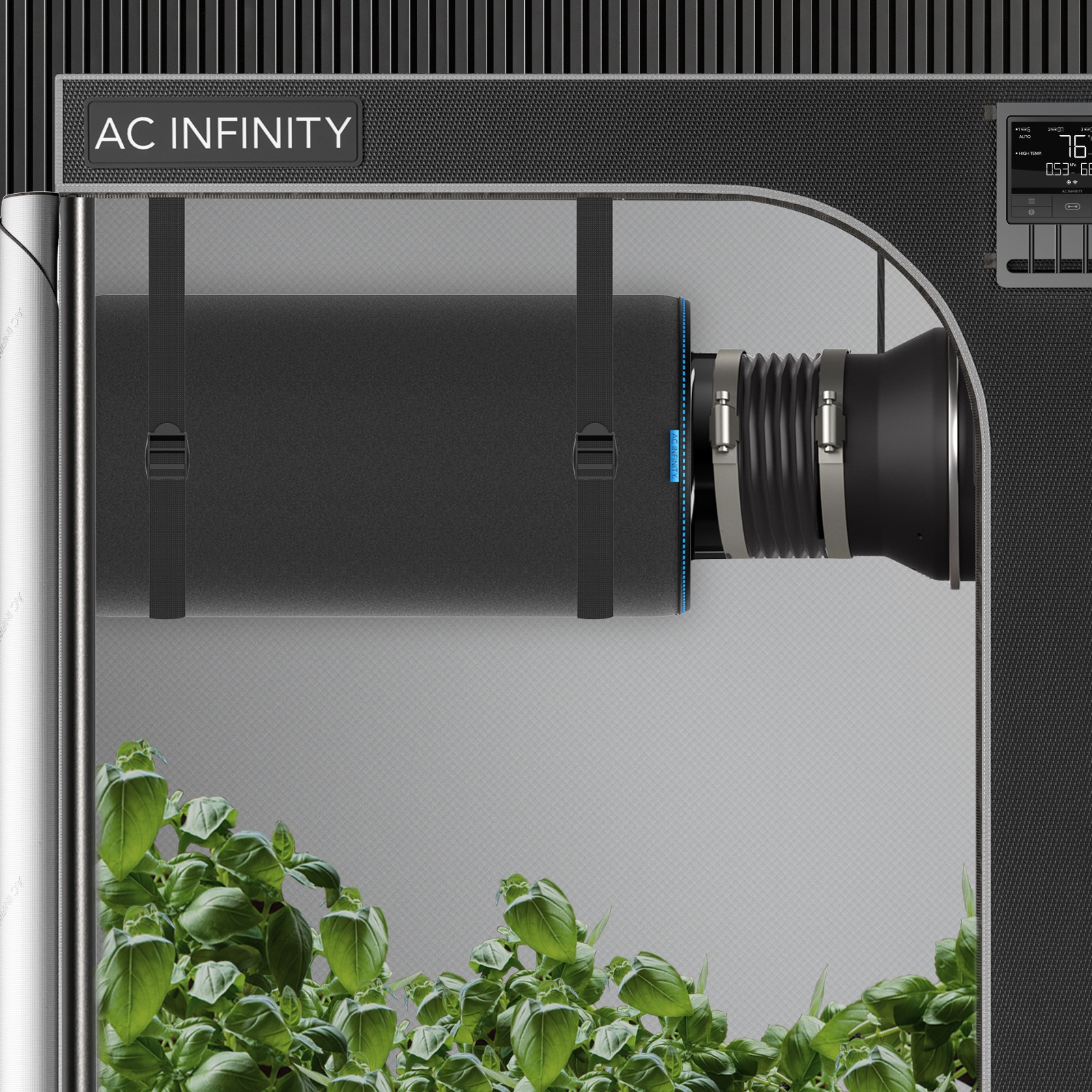

Versatile Use
Primarily for hydroponic systems, grow tents and grow rooms, but also for kitchens, smoking areas and other ventilation projects.

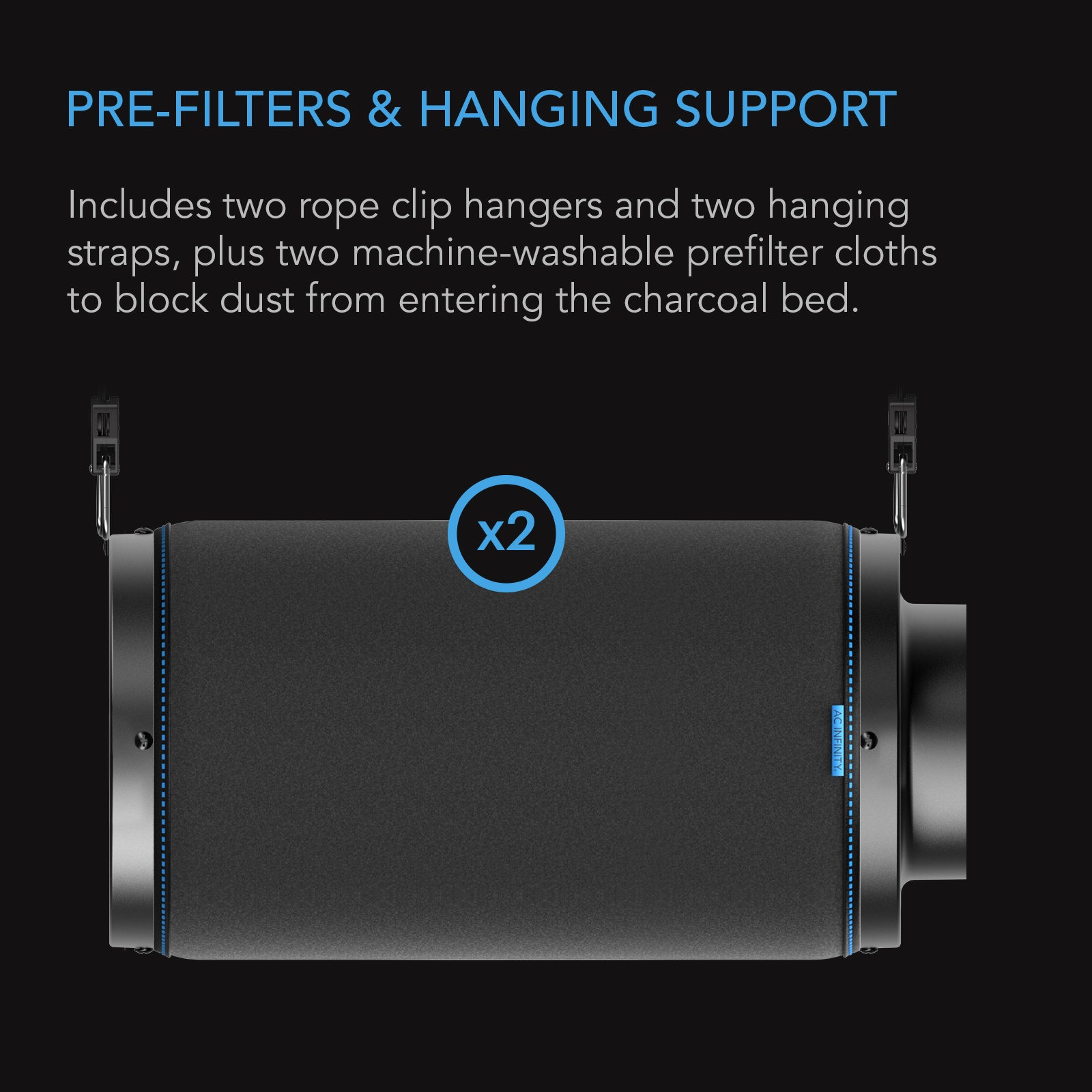

Package Contents
- 1×Carbon filter 100 mm
- 2×Pre-filters (machine washable)
- 2×Hanging straps
Safety and Warning Information
- Read and keep the instructions before installation.
- Keep the filter dry – the activated carbon must not get wet. Do not use in wet or chemically contaminated environments.
- Clean or replace the pre-filter regularly.
- Do not use for toxic, corrosive or flammable fumes – only for odor filtration of room air and exhaust air in grow and ventilation applications.
- Keep away from children and pets.
- Do not dispose of this product with household waste – return it to a collection point.
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- Ø 100 mm inline filter that prevents odors and chemicals from escaping grow tents and hydroponic rooms.
- Premium Australian activated carbon with high adsorption capacity and long lifespan.
- Blued metal with gunmetal finish – durable and rust-resistant even in high humidity.
- Aluminum flanges and galvanized steel mesh; includes two hanging straps and two pre-filters.
- Connection: Ø 100 mm | Length: 300 mm | Airflow: approx. 357 m³/h | Carbon: Australian RC412 with 1200+ IAV | Carbon bed: 38 mm
Product Description
A high-airflow air filter that eliminates odors and chemicals, filled with premium Australian virgin activated carbon.
The carbon bed with RC412 pore structure ensures a high adsorption rate and a long lifespan. Aluminum flanges and galvanized steel mesh with gunmetal finish withstand corrosion and high humidity. The filter can be used with an inline fan for intake and exhaust; its flanges can be reversed to extend the lifespan further.
- Ø 100 mmConnection
- approx. 357 m³/hMax. airflow
- 38 mmCarbon bed
- 1200+ IAVIodine adsorption value
- 300 × 177 mmDimensions
Premium Activated Carbon
Australian virgin charcoal with an IAV (iodine adsorption value) of 1200+ in a 38 mm thick carbon bed. The high microporosity and large mesh openings enable a high adsorption rate without restricting airflow and considerably extend the lifespan.
Sturdy Construction
Aluminum flanges and galvanized steel mesh with a rust-resistant gunmetal finish withstand corrosion and high humidity.
Intake or Exhaust
The filter works with an inline fan in intake and exhaust configurations. Reversible flanges extend the lifespan of the carbon bed.
Versatile Use
Primarily for hydroponic systems, grow tents and grow rooms, but also for kitchens, smoking areas and other ventilation projects.
Package Contents
- 1×Carbon filter 100 mm
- 2×Pre-filters (machine washable)
- 2×Hanging straps
Safety and Warning Information
- Read and keep the instructions before installation.
- Keep the filter dry – the activated carbon must not get wet. Do not use in wet or chemically contaminated environments.
- Clean or replace the pre-filter regularly.
- Do not use for toxic, corrosive or flammable fumes – only for odor filtration of room air and exhaust air in grow and ventilation applications.
- Keep away from children and pets.
- Do not dispose of this product with household waste – return it to a collection point.
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameCarbon Filter 100 mm
Product ModelAC-DCF4
UPC Code819137020665
User Manual
Carbon Filter

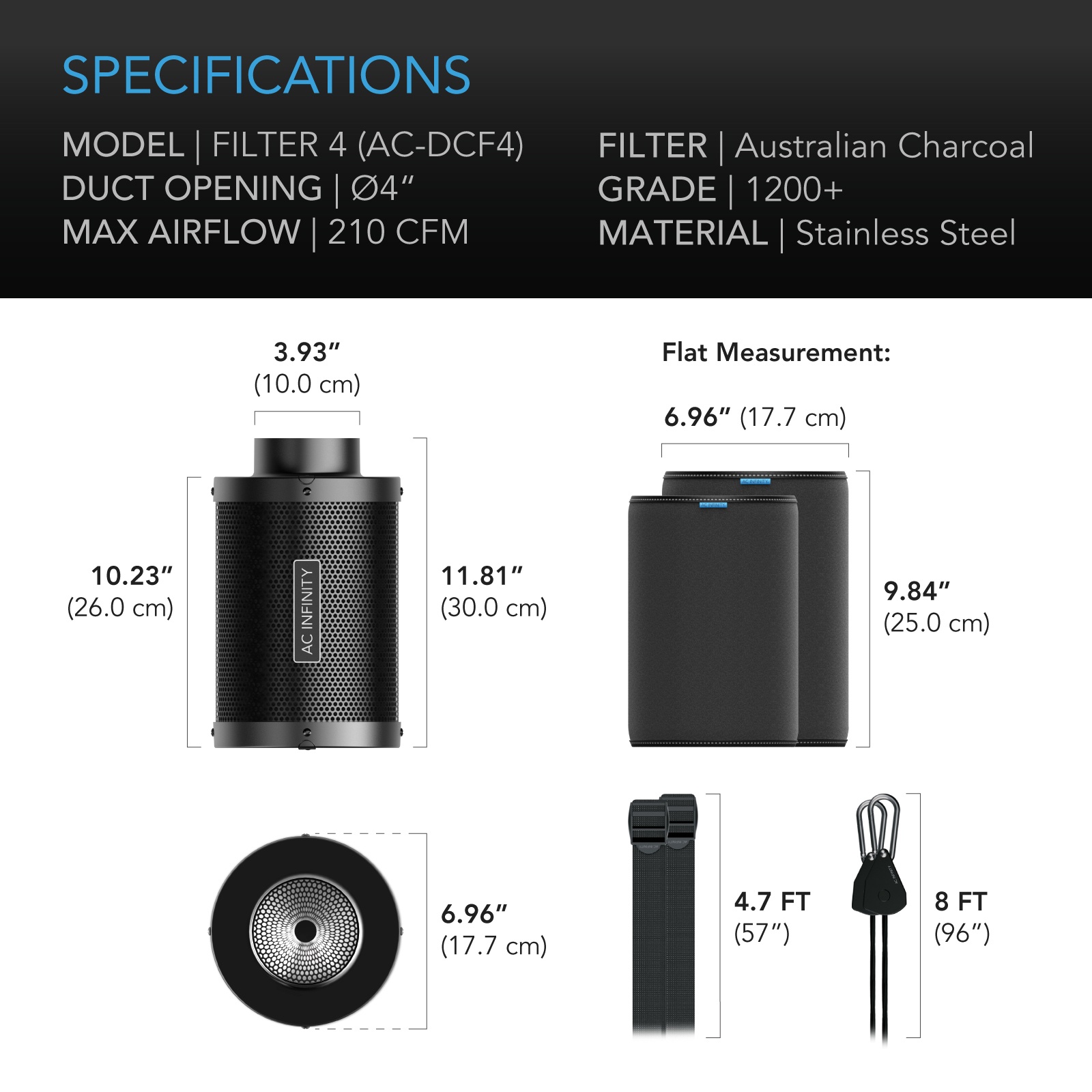

Dimensions
| Connection Diameter | Ø 100 mm |
|---|---|
| Overall Dimensions | 300 × 177 mm |
| Flange Length | 37 mm |
Performance and Technical Specifications
| Flange Material | Aluminum |
|---|---|
| Flange Design | Reversible |
| Mesh Material | Galvanized steel, rust-resistant, with gunmetal finish |
| Carbon Type | Australian virgin activated carbon RC412 |
| Carbon Grade | 1200+ IAV (iodine adsorption value) |
| Carbon Bed Thickness | 38 mm |
| Maximum Airflow | approx. 357 m³/h |
