- Equipped with Samsung LM301H EVO LEDs with an efficiency of 3.14 µmol/J each (PPE: photosynthetic photon efficacy) – higher than LM301B, LM301H and Bridgelux 3030 chips.
- Programmable with scheduling, sunrise and sunset dimming and 10 brightness levels; compatible with the UIS™ platform (UIS: Universal Infinity System) for control via the WiFi app.
- Bar form factor with algorithmically arranged diodes, optimized for even coverage, deep canopy penetration and fewer hotspots.
- The passively cooled LED driver is detachable for better heat distribution; the light also supports daisy-chaining up to 80 grow lights.
- Coverage up to 180 × 180 cm in the vegetative stage and up to 150 × 150 cm in the flowering stage | Samsung LM301H EVO chips | 3710 diodes | 1000 W | ETL-listed (No. 5021417)
Product Description

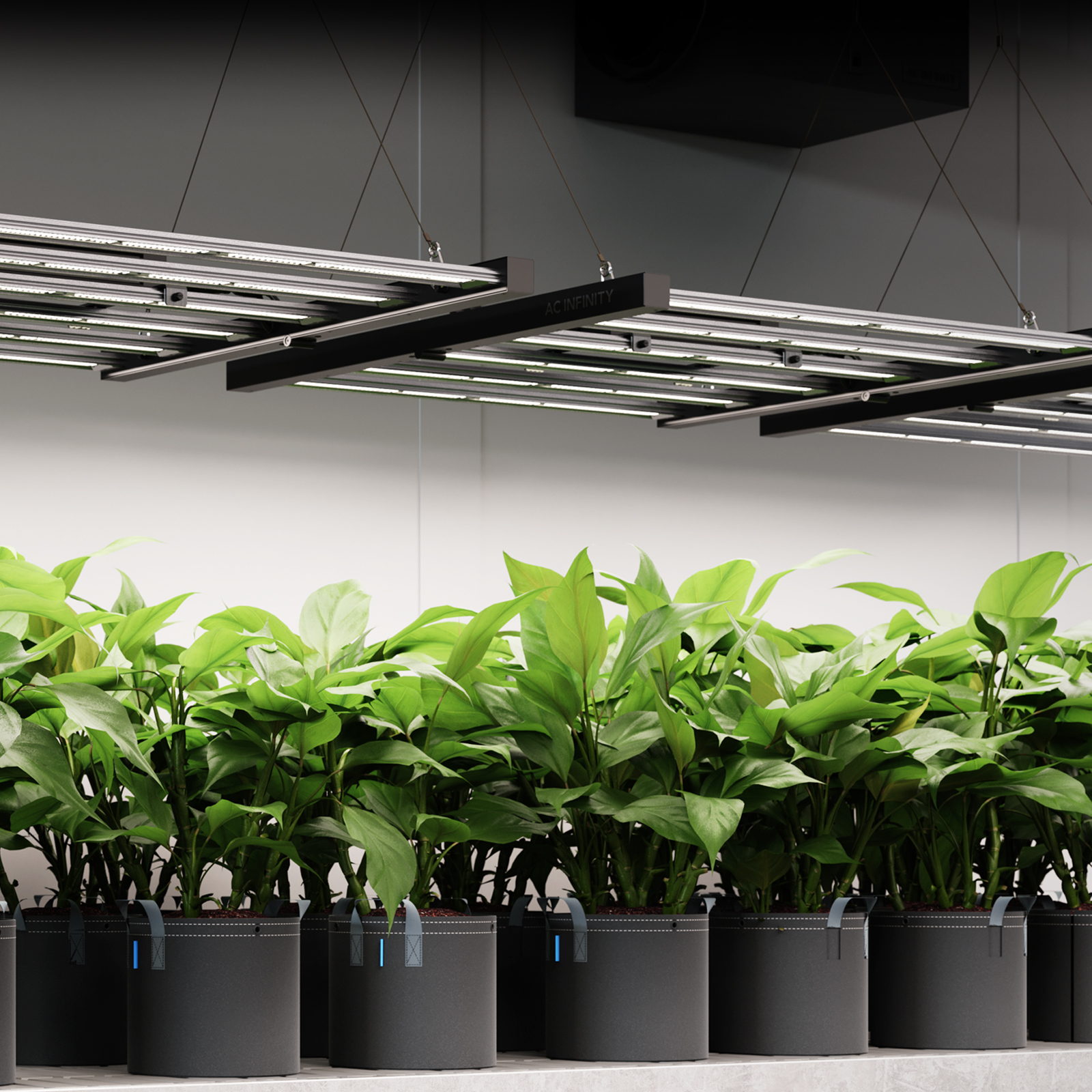

An indoor plant light designed for grow tents and large grow rooms to improve plant growth rates and yields.

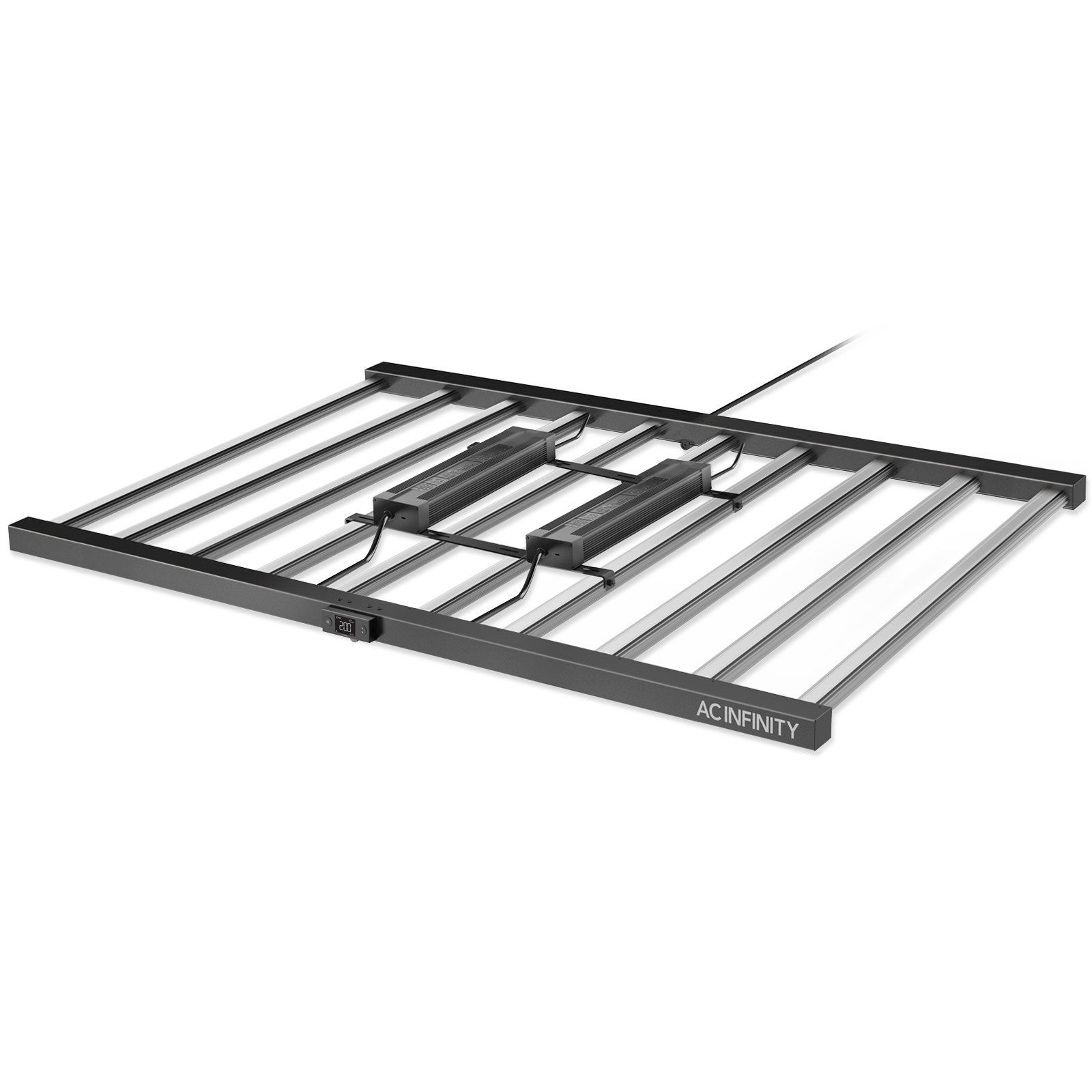

The Samsung LM301H EVO diodes are arranged algorithmically on a bar form factor to distribute light evenly and minimize hotspots. This grow light meets ETL standards (ETL: Intertek certification mark, No. 5021417) for electrical safety and is part of the UIS™ platform of grow equipment and smart controllers designed to integrate with each other to create the ideal grow environment.
- 1000 WPower consumption
- 3.14 µmol/JEfficiency per diode
- 3710Diodes
- 150 × 150 cmFlowering coverage (vegetative: up to 180 × 180 cm)
- 5 yearsManufacturer warranty from date of purchase
Samsung LM301H EVO Diodes

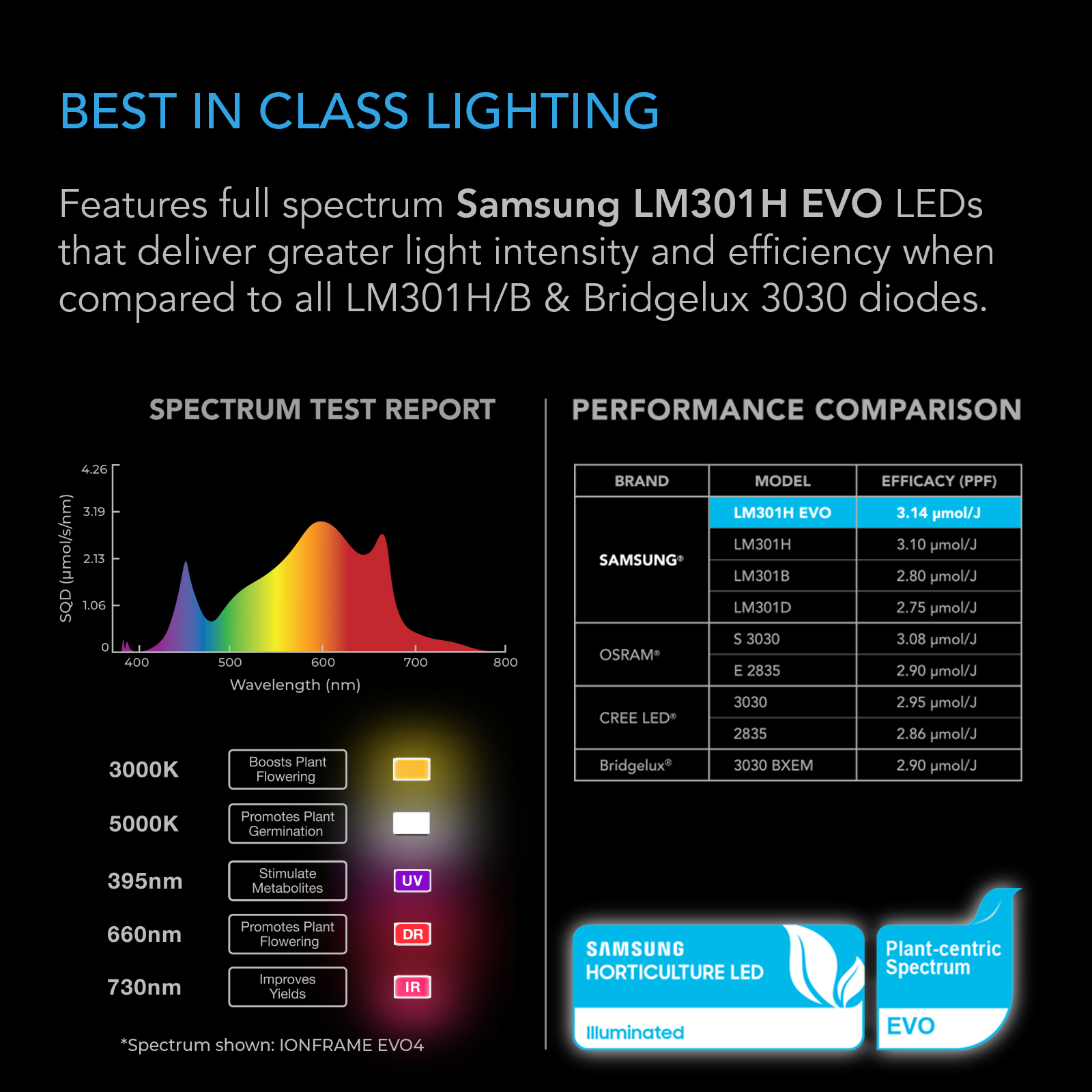

Each IONFRAME light is equipped with genuine Samsung LM301H EVO diodes, the latest horticultural lighting technology, which produces intense brightness at higher efficiency – more than Samsung LM301H and LM301B as well as Bridgelux 3030 and other previous-generation LEDs. EVO diodes emit more light per diode with a higher blue share and higher efficiency than non-EVO diodes. The IONFRAME EVO10 is supported by 10 UV diodes (395 nm), 130 OSRAM red diodes (660 nm) and 10 OSRAM far-red diodes (730 nm) to complete the spectrum.
Modular, Durable Design
The modular design allows the driver to be detached and mounted away from the light to optimize heat dissipation. Heat dissipation is supported by the steel and aluminum construction, which allows magnetic mounting and is IP-65 rated (dust-tight and protected against water jets, but not waterproof) to withstand humid environments.
Scheduling and Brightness Control

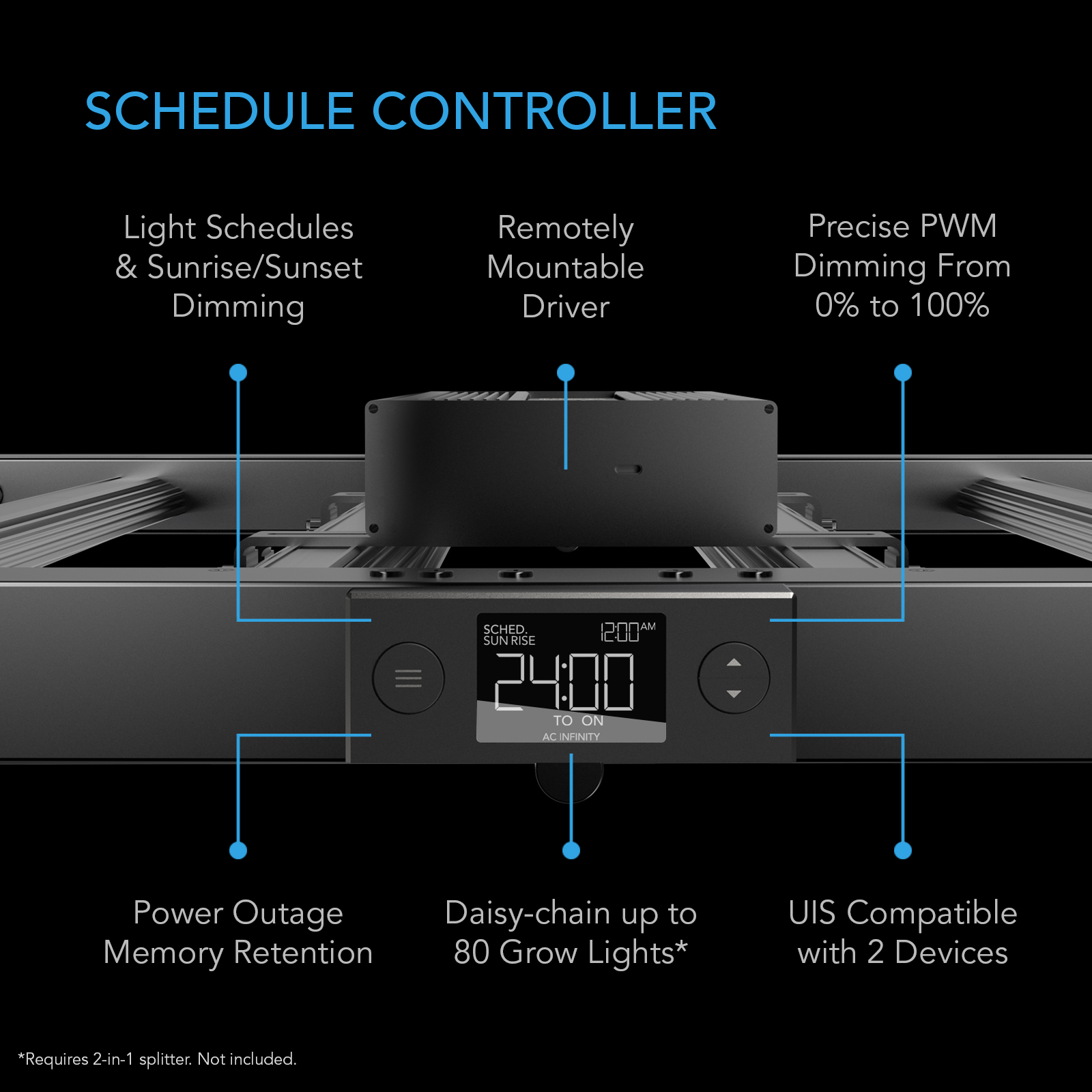

The included digital timer automatically adjusts the light to the time of day. It offers 10 brightness levels and a schedule mode that cycles the light on and off. The sunrise and sunset setting gradually brightens and dims the light to simulate the path of the sun.
Daisy-Chain Multiple Lights
The digital timer supports daisy-chaining multiple LED grow lights in a row using splitters (sold separately). Up to 80 lights can be controlled together.

Even Light

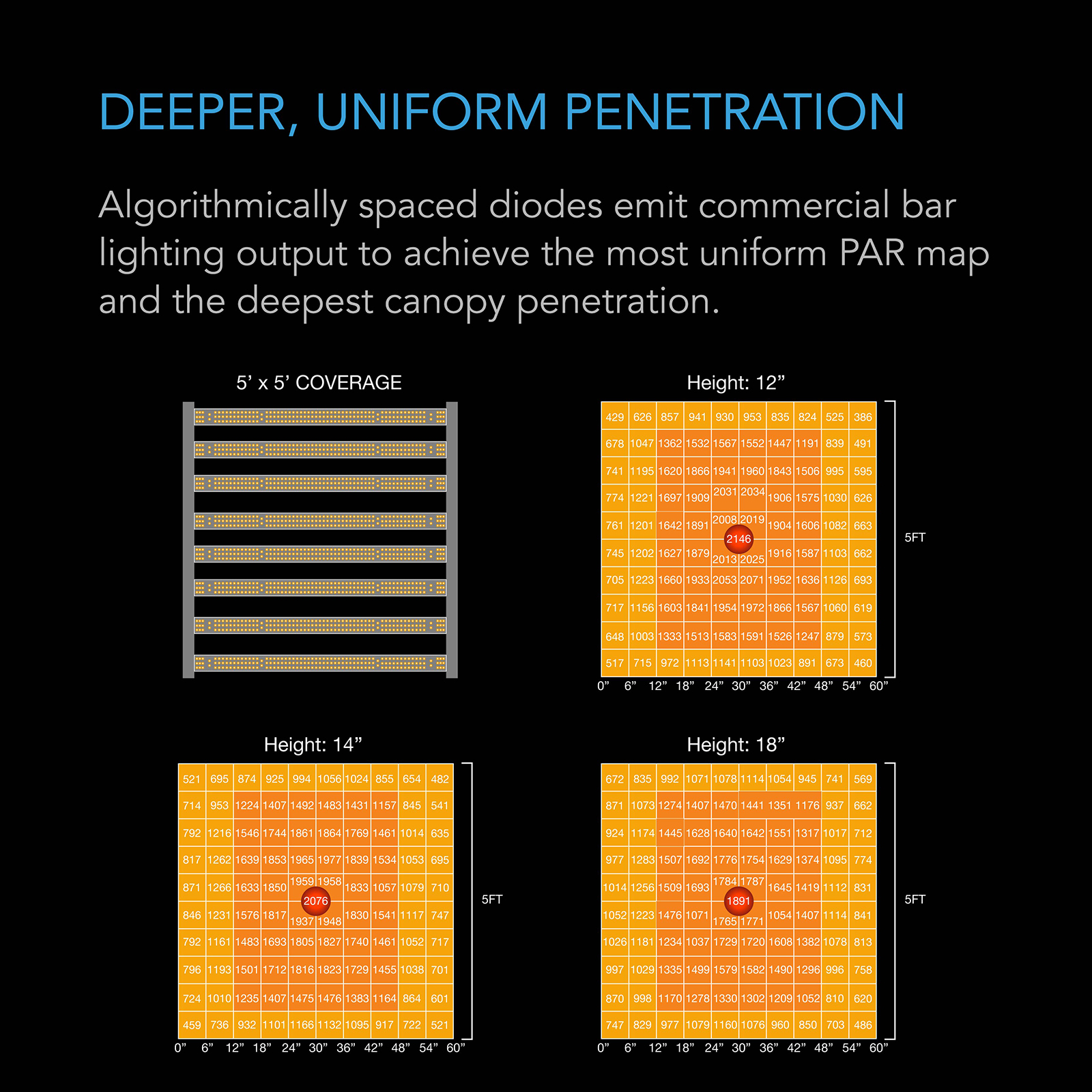

The algorithmically arranged diodes are optimized for even coverage, deep canopy penetration and fewer hotspots. The chart shows the light distribution (PPFD: photosynthetic photon flux density) across 150 × 150 cm at 30, 35 and 45 cm.
CONTROL
Digital timer included – UIS controller optional
A compact digital timer with display is included to set on and off times, 10 brightness levels as well as sunrise and sunset directly. A UIS controller additionally integrates the light fully into the AC Infinity system for remote control via the app.
UIS controller sold separately, for example the CONTROLLER AI+.
Package Contents
- 1×LED grow light IONFRAME EVO10
- 2×LED driver
- 2×Driver cable
- 1×Dual power cord for both drivers
- 1×Daisy-chain adapter
- 1×Digital timer with display
- 2×Driver brackets
- 2×Rope clips
- 2×Stainless steel wire hangers
- 1×UIS cable, male to male, approx. 60 cm
- 1×UIS cable, male to male, approx. 3 m
- 1×UIS cable, male to male, approx. 30 cm
- 1×Cable tie set
- 4×Hook-and-loop ties
- 6×Nylon screws
- 2×Timer mounting plate screws
- 3×Hex nuts
- 2×Wood screws (timer)
- 8×Wood screws (driver)
- 8×Driver screws (bracket)
Splitters for daisy-chaining multiple lights are not included.
Safety and Warning Information
Power and Installation
- Connect only to properly installed, grounded outlets that meet the electrical requirements of the product. The electrical installation must comply with local regulations.
- Check local building codes and regulatory requirements before installation. If in doubt, consult a qualified electrician or specialist company.
- Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
- Use only original cables and suitable accessories from the manufacturer. Other cables, adapters or hangers may compromise safety.
- Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric. Fire hazard.
- All connections must be secure, correct and safely made before operation.
- Do not rely solely on timers or automatic controls. Unplug the device during extended absences, maintenance or in an emergency.
Mounting, Heat and Light
- The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware and observe the maximum load capacity of the hanging system.
- Maintain the minimum distance to plants, surfaces and flammable materials as specified in the user manual. The device generates heat – adequate ventilation and air circulation are required.
- Ventilation slots and heat sinks must not be blocked or covered. Risk of overheating.
- When installing in grow tents or closed systems, always ensure adequate ventilation and heat dissipation to prevent overheating and fire hazards.
- Do not cover, obstruct or install the device in enclosed furniture during operation.
- Never look directly into the LEDs while they are on. Very bright light can damage the eyes. Use suitable eye protection when working near the device while it is on.
- Do not drop the device or expose it to strong impacts or vibration.
- Before operation, make sure there are no packaging parts, tools or other objects on or in the device.
Environment and Operation
- Do not place or spill liquids on or near the device. The light is protected against water jets according to IP-65, but it is not waterproof.
- Never use the device in explosive, chemically contaminated, extremely humid or wet environments.
- The device is not intended for outdoor use or use in unprotected environments.
- Do not operate the device unattended, especially not overnight without smoke detectors or fire protection equipment.
- Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
- Do not allow use by persons (including children) with reduced physical, sensory or mental capabilities without supervision.
- Keep away from children and pets.
Maintenance, General and Disposal
- Read the complete user manual before installation and operation and keep it for future reference.
- Always unplug the device and let it cool down before cleaning, servicing or modifying it.
- Regularly check for dust buildup, wear and proper function. Dust increases the risk of fire – clean the device carefully when it is switched off and cooled down.
- Never open, repair or electrically modify the device yourself. Repairs or modifications may only be carried out by authorized qualified personnel. Improper interventions may cause electric shock or fire.
- Improper installation or use may result in electric shock, fire, injury or damage.
- Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
LED Grow Light

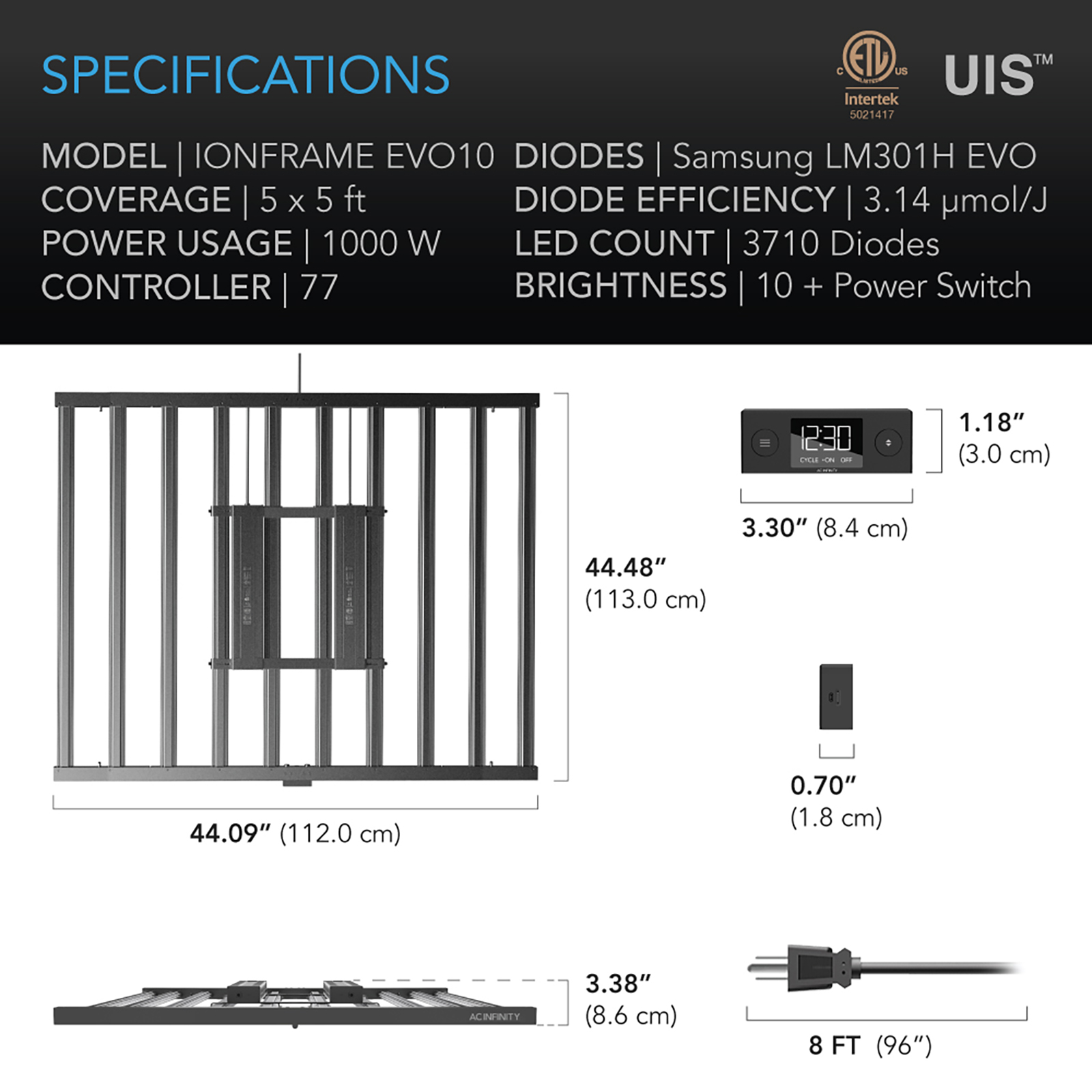

Product and Mounting Dimensions
| Light Dimensions | 112.0 × 113.0 × 8.6 cm |
|---|---|
| Driver Dimensions | 18.2 × 4.0 cm |
| Timer Dimensions | 8.4 × 3.0 × 1.8 cm |
| Power Cord Length | 243.8 cm |
Product Performance and Technical Specifications
| Coverage | up to 150 × 150 cm (flowering), up to 180 × 180 cm (vegetative) |
|---|---|
| Diodes | Samsung LM301H EVO |
| Spectrum | 395 nm, 660 nm, 730 nm, 3000 K, 5000 K |
| Number of LED Chips (total) | 3710 |
| of which EVO 3000 K | 2360 |
| of which EVO 5000 K | 1200 |
| of which Seoul 395 nm | 10 |
| of which OSRAM 660 nm | 130 |
| of which OSRAM 730 nm | 10 |
| LED Driver | SOSEN-1000W |
| Efficiency (per diode) | 3.14 µmol/J |
| PPFD (photosynthetic photon flux density) | 2146 µmol/m²/s |
| Power Consumption | 1000 W |
| Voltage | 100–277 V AC |
| Frequency | 50/60 Hz |
| Current Draw | approx. 4.35 A (at 230 V, total for both drivers) |
| Timer | Digital timer with display |
| Brightness Levels | 10 |
| Plug Type | EU plug (Type C/F) |
| Operating Humidity | 35 to 85 % RH |
| Operating Temperature | 0 to 60 °C |
| Protection Rating | IP-65 (dust-tight, protected against water jets) |
| ETL Certification | Intertek, No. 5021417 |
| Lifespan | 50,000 hours |
