AC-IF8K

IONFRAME EVO8, Grow Light 730 W, Full Spectrum LED 150 x 150 cm Coverage

€989,00
incl. VAT, plus shipping costs
  • Equipped with Samsung LM301H EVO LEDs with an efficiency of 3.14 µmol/J each (PPE: photosynthetic photon efficacy) – higher than LM301B, LM301H and Bridgelux 3030 chips.
  • Programmable with scheduling, sunrise and sunset dimming and 10 brightness levels; compatible with the UIS™ platform (UIS: Universal Infinity System) for control via the WiFi app.
  • Bar form factor with algorithmically arranged diodes, optimized for even coverage, deep canopy penetration and fewer hotspots.
  • The passively cooled LED driver is detachable for better heat distribution; the light also supports daisy-chaining up to 80 grow lights.
  • Coverage up to 150 × 150 cm | Samsung LM301H EVO chips | 2688 diodes | 730 W | ETL-listed (No. 5021417)

Product Description

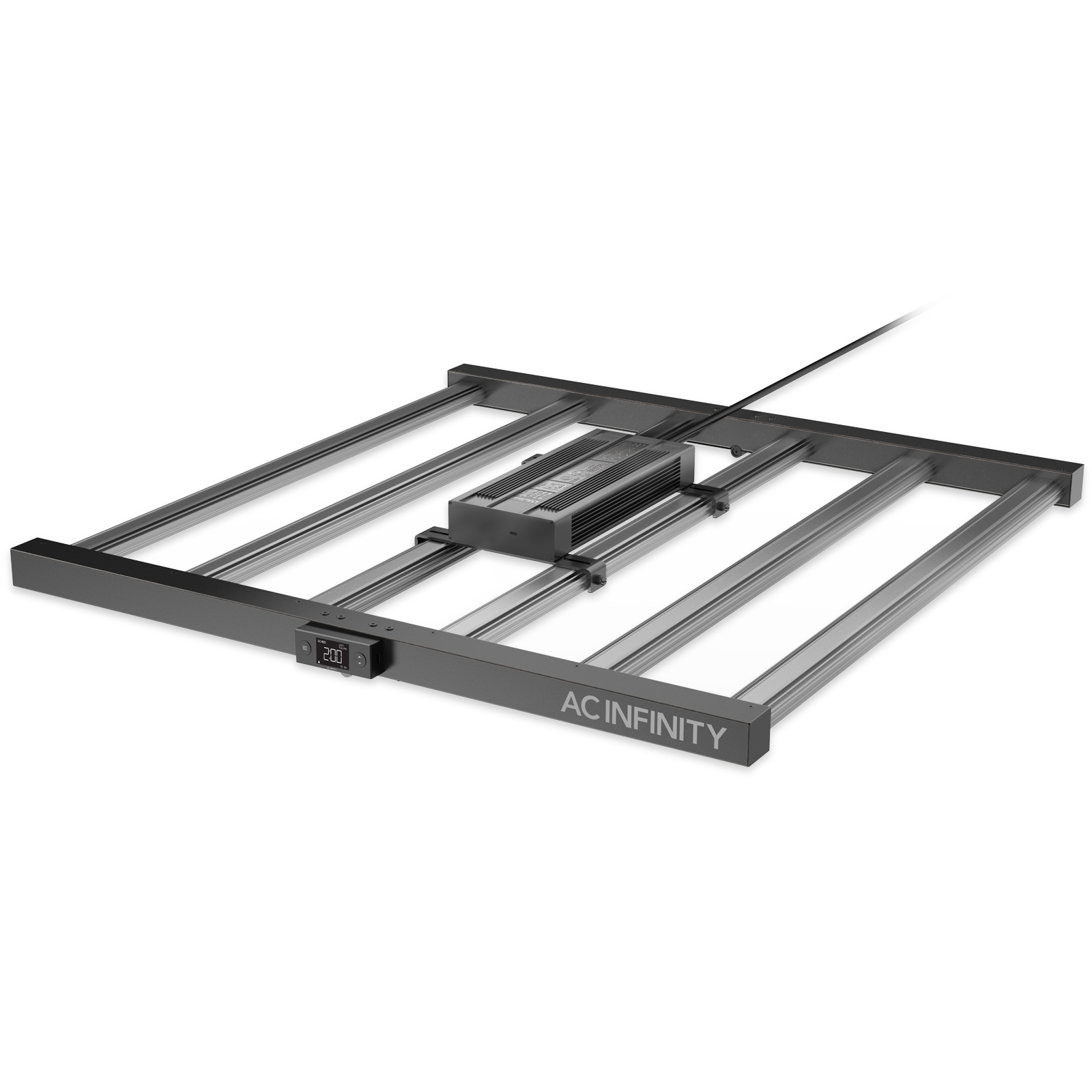

An indoor plant light designed for grow tents and large grow rooms to improve plant growth rates and yields.

The Samsung LM301H EVO diodes are arranged algorithmically on a bar form factor to distribute light evenly and minimize hotspots. This grow light meets ETL standards (ETL: Intertek certification mark, No. 5021417) for electrical safety and is part of the UIS™ platform of grow equipment and smart controllers designed to integrate with each other to create the ideal grow environment.

  • 730 WPower consumption
  • 3.14 µmol/JEfficiency per diode
  • 2688Diodes
  • 150 × 150 cmCoverage
  • 5 yearsManufacturer warranty from date of purchase

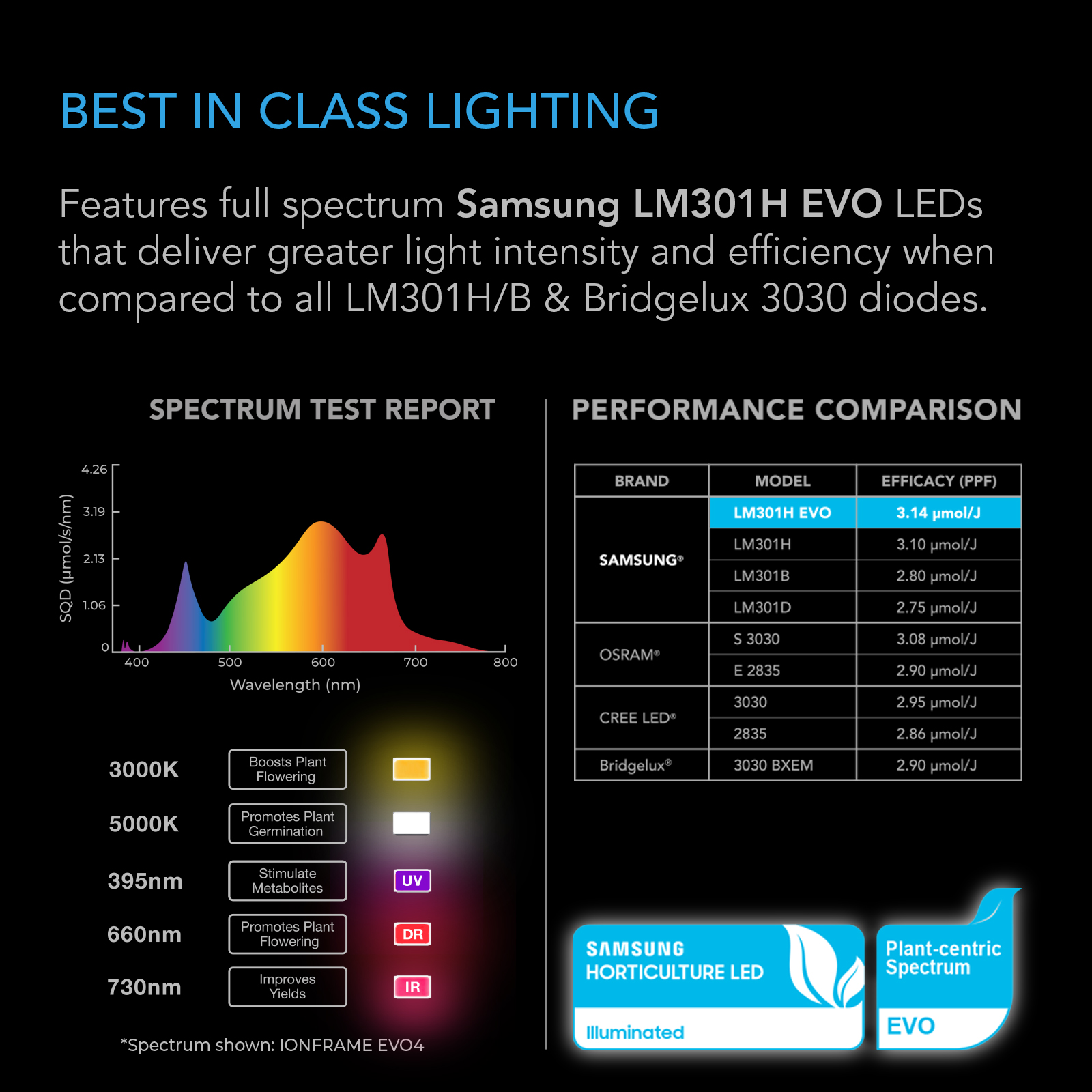

Samsung LM301H EVO Diodes

Each IONFRAME light is equipped with genuine Samsung LM301H EVO diodes, the latest horticultural lighting technology, which produces intense brightness at higher efficiency – more than Samsung LM301H and LM301B as well as Bridgelux 3030 and other previous-generation LEDs. EVO diodes emit more light per diode with a higher blue share and higher efficiency than non-EVO diodes. The IONFRAME EVO8 is supported by 8 UV diodes (395 nm), 88 OSRAM red diodes (660 nm) and 8 OSRAM far-red diodes (730 nm) to complete the spectrum.

Modular, Durable Design

The modular design allows the driver to be detached and mounted away from the light to optimize heat dissipation. Heat dissipation is supported by the steel and aluminum construction, which allows magnetic mounting and is IP-65 rated (dust-tight and protected against water jets, but not waterproof) to withstand humid environments.

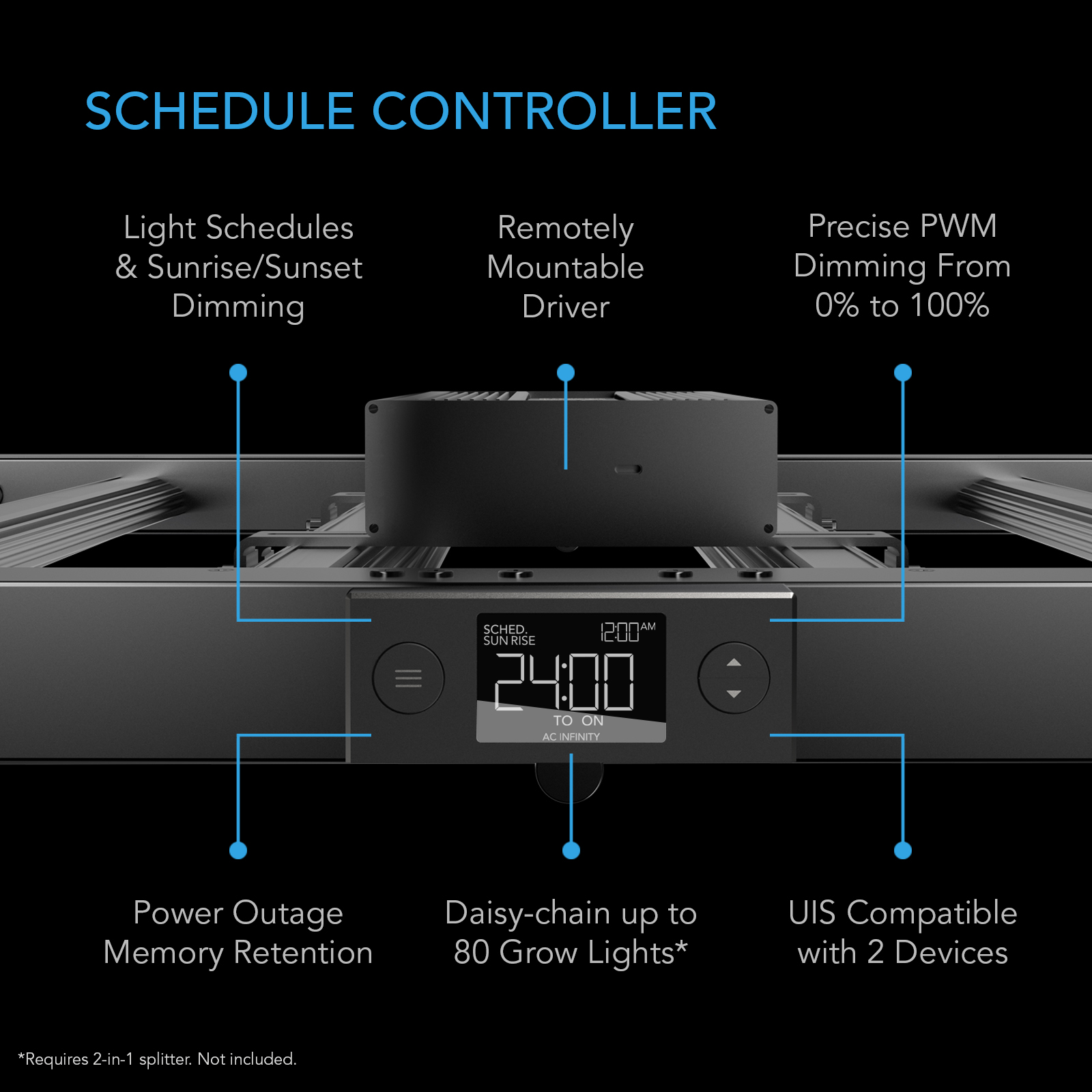

Scheduling and Brightness Control

The included digital timer automatically adjusts the light to the time of day. It offers 10 brightness levels and a schedule mode that cycles the light on and off. The sunrise and sunset setting gradually brightens and dims the light to simulate the path of the sun.

Daisy-Chain Multiple Lights

The digital timer supports daisy-chaining multiple LED grow lights in a row using splitters (sold separately). Up to 80 lights can be controlled together.

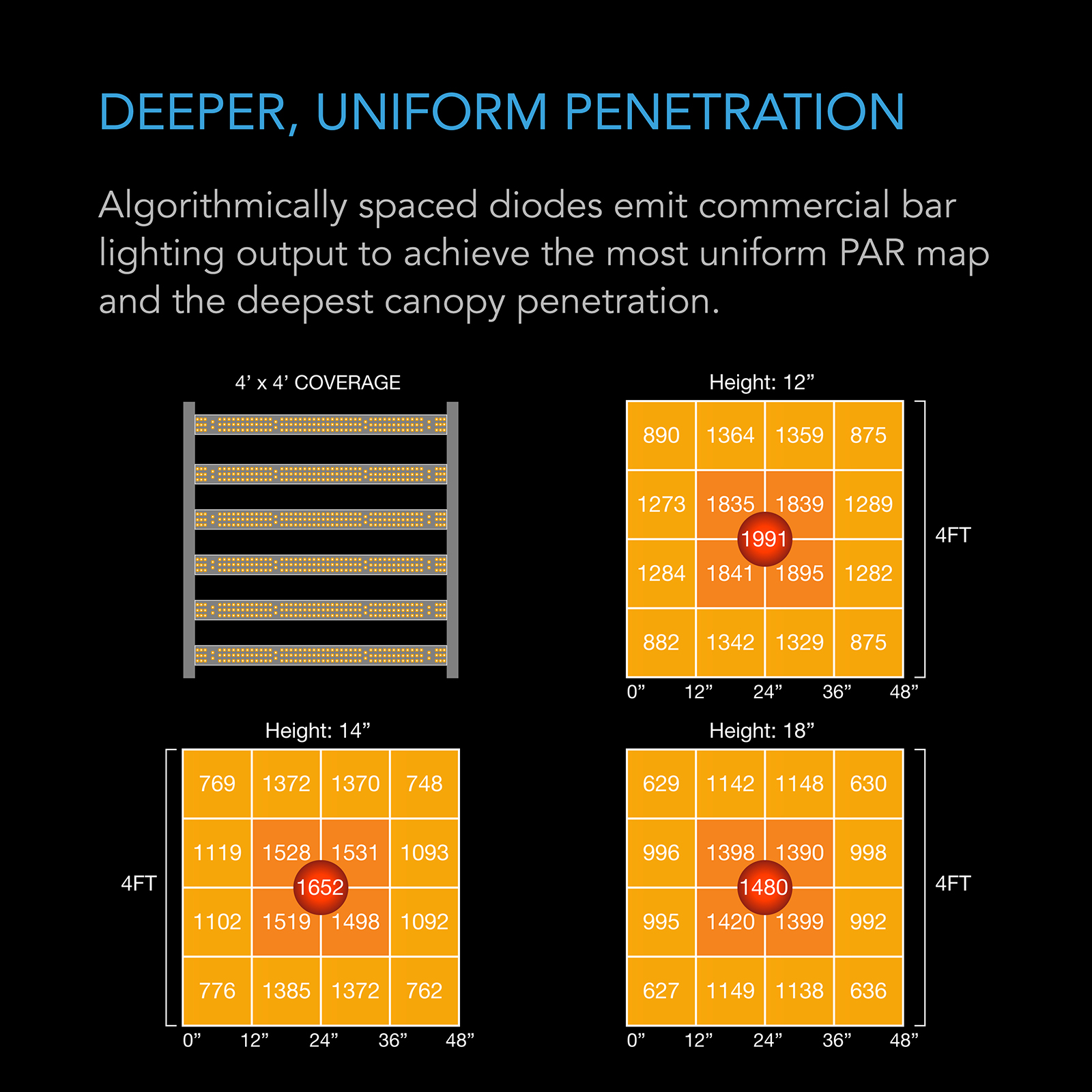

Lichtverteilung der IONFRAME EVO8 bei 30, 36 und 46 cm Abstand

Even Light

The algorithmically arranged diodes are optimized for even coverage, deep canopy penetration and fewer hotspots. The chart shows the light distribution (PPFD: photosynthetic photon flux density) across 150 × 150 cm at 30, 36 and 46 cm.

CONTROL

Digital timer included – UIS controller optional

A compact digital timer with display is included to set on and off times, 10 brightness levels as well as sunrise and sunset directly. A UIS controller additionally integrates the light fully into the AC Infinity system for remote control via the app.

Included digital timerOn and off times, 10 brightness levels, sunrise and sunset – directly on the display

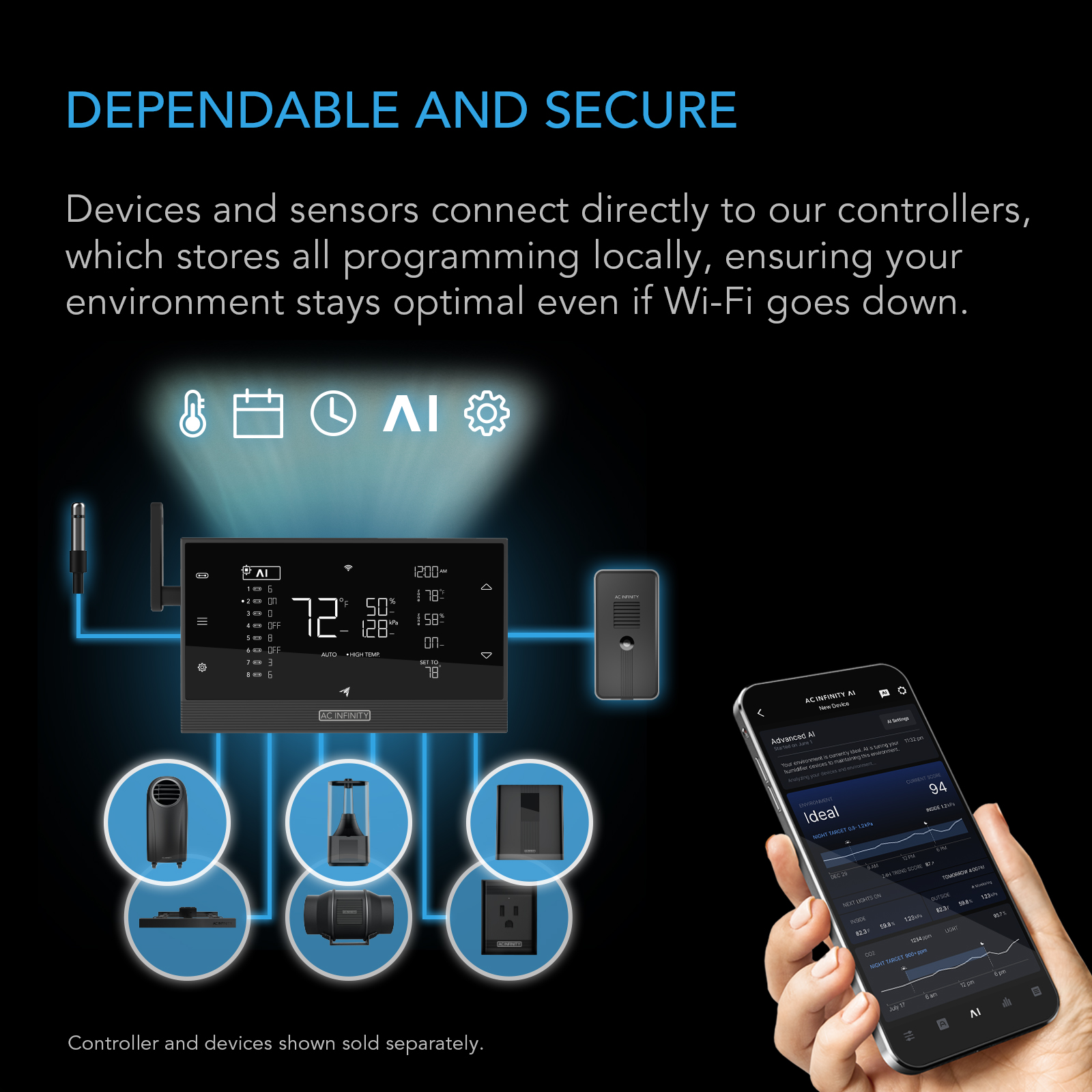

With UIS controller and appFull integration into the AC Infinity system, remote control via WiFi, automations and grow recipes

UIS controller sold separately, for example the CONTROLLER AI+.

Package Contents

  • 1×LED grow light IONFRAME EVO8
  • 1×LED driver
  • 1×Driver cable
  • 1×Digital timer with display
  • 2×Driver brackets
  • 2×Rope clips
  • 2×Stainless steel wire hangers
  • 1×UIS cable, male to male, approx. 60 cm
  • 1×UIS cable, male to male, approx. 3 m
  • 1×Cable tie set
  • 4×Hook-and-loop ties
  • 6×Nylon screws
  • 2×Timer mounting plate screws
  • 3×Hex nuts
  • 2×Wood screws (timer)
  • 4×Wood screws (driver)
  • 4×Driver screws (bracket)

Splitters for daisy-chaining multiple lights are not included.

Safety and Warning Information

Power and Installation

  • Connect only to properly installed, grounded outlets that meet the electrical requirements of the product. The electrical installation must comply with local regulations.
  • Check local building codes and regulatory requirements before installation. If in doubt, consult a qualified electrician or specialist company.
  • Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
  • Use only original cables and suitable accessories from the manufacturer. Other cables, adapters or hangers may compromise safety.
  • Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric. Fire hazard.
  • All connections must be secure, correct and safely made before operation.
  • Do not rely solely on timers or automatic controls. Unplug the device during extended absences, maintenance or in an emergency.

Mounting, Heat and Light

  • The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware and observe the maximum load capacity of the hanging system.
  • Maintain the minimum distance to plants, surfaces and flammable materials as specified in the user manual. The device generates heat – adequate ventilation and air circulation are required.
  • Ventilation slots and heat sinks must not be blocked or covered. Risk of overheating.
  • When installing in grow tents or closed systems, always ensure adequate ventilation and heat dissipation to prevent overheating and fire hazards.
  • Do not cover, obstruct or install the device in enclosed furniture during operation.
  • Never look directly into the LEDs while they are on. Very bright light can damage the eyes. Use suitable eye protection when working near the device while it is on.
  • Do not drop the device or expose it to strong impacts or vibration.
  • Before operation, make sure there are no packaging parts, tools or other objects on or in the device.

Environment and Operation

  • Do not place or spill liquids on or near the device. The light is protected against water jets according to IP-65, but it is not waterproof.
  • Never use the device in explosive, chemically contaminated, extremely humid or wet environments.
  • The device is not intended for outdoor use or use in unprotected environments.
  • Do not operate the device unattended, especially not overnight without smoke detectors or fire protection equipment.
  • Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
  • Do not allow use by persons (including children) with reduced physical, sensory or mental capabilities without supervision.
  • Keep away from children and pets.

Maintenance, General and Disposal

  • Read the complete user manual before installation and operation and keep it for future reference.
  • Always unplug the device and let it cool down before cleaning, servicing or modifying it.
  • Regularly check for dust buildup, wear and proper function. Dust increases the risk of fire – clean the device carefully when it is switched off and cooled down.
  • Never open, repair or electrically modify the device yourself. Repairs or modifications may only be carried out by authorized qualified personnel. Improper interventions may cause electric shock or fire.
  • Improper installation or use may result in electric shock, fire, injury or damage.
  • Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information

Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com

Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com

View Full Product Info
  • Equipped with Samsung LM301H EVO LEDs with an efficiency of 3.14 µmol/J each (PPE: photosynthetic photon efficacy) – higher than LM301B, LM301H and Bridgelux 3030 chips.
  • Programmable with scheduling, sunrise and sunset dimming and 10 brightness levels; compatible with the UIS™ platform (UIS: Universal Infinity System) for control via the WiFi app.
  • Bar form factor with algorithmically arranged diodes, optimized for even coverage, deep canopy penetration and fewer hotspots.
  • The passively cooled LED driver is detachable for better heat distribution; the light also supports daisy-chaining up to 80 grow lights.
  • Coverage up to 150 × 150 cm | Samsung LM301H EVO chips | 2688 diodes | 730 W | ETL-listed (No. 5021417)

Product Description

An indoor plant light designed for grow tents and large grow rooms to improve plant growth rates and yields.

The Samsung LM301H EVO diodes are arranged algorithmically on a bar form factor to distribute light evenly and minimize hotspots. This grow light meets ETL standards (ETL: Intertek certification mark, No. 5021417) for electrical safety and is part of the UIS™ platform of grow equipment and smart controllers designed to integrate with each other to create the ideal grow environment.

  • 730 WPower consumption
  • 3.14 µmol/JEfficiency per diode
  • 2688Diodes
  • 150 × 150 cmCoverage
  • 5 yearsManufacturer warranty from date of purchase

Samsung LM301H EVO Diodes

Each IONFRAME light is equipped with genuine Samsung LM301H EVO diodes, the latest horticultural lighting technology, which produces intense brightness at higher efficiency – more than Samsung LM301H and LM301B as well as Bridgelux 3030 and other previous-generation LEDs. EVO diodes emit more light per diode with a higher blue share and higher efficiency than non-EVO diodes. The IONFRAME EVO8 is supported by 8 UV diodes (395 nm), 88 OSRAM red diodes (660 nm) and 8 OSRAM far-red diodes (730 nm) to complete the spectrum.

Modular, Durable Design

The modular design allows the driver to be detached and mounted away from the light to optimize heat dissipation. Heat dissipation is supported by the steel and aluminum construction, which allows magnetic mounting and is IP-65 rated (dust-tight and protected against water jets, but not waterproof) to withstand humid environments.

Scheduling and Brightness Control

The included digital timer automatically adjusts the light to the time of day. It offers 10 brightness levels and a schedule mode that cycles the light on and off. The sunrise and sunset setting gradually brightens and dims the light to simulate the path of the sun.

Daisy-Chain Multiple Lights

The digital timer supports daisy-chaining multiple LED grow lights in a row using splitters (sold separately). Up to 80 lights can be controlled together.

Lichtverteilung der IONFRAME EVO8 bei 30, 36 und 46 cm Abstand

Even Light

The algorithmically arranged diodes are optimized for even coverage, deep canopy penetration and fewer hotspots. The chart shows the light distribution (PPFD: photosynthetic photon flux density) across 150 × 150 cm at 30, 36 and 46 cm.

CONTROL

Digital timer included – UIS controller optional

A compact digital timer with display is included to set on and off times, 10 brightness levels as well as sunrise and sunset directly. A UIS controller additionally integrates the light fully into the AC Infinity system for remote control via the app.

Included digital timerOn and off times, 10 brightness levels, sunrise and sunset – directly on the display
With UIS controller and appFull integration into the AC Infinity system, remote control via WiFi, automations and grow recipes

UIS controller sold separately, for example the CONTROLLER AI+.

Package Contents

  • 1×LED grow light IONFRAME EVO8
  • 1×LED driver
  • 1×Driver cable
  • 1×Digital timer with display
  • 2×Driver brackets
  • 2×Rope clips
  • 2×Stainless steel wire hangers
  • 1×UIS cable, male to male, approx. 60 cm
  • 1×UIS cable, male to male, approx. 3 m
  • 1×Cable tie set
  • 4×Hook-and-loop ties
  • 6×Nylon screws
  • 2×Timer mounting plate screws
  • 3×Hex nuts
  • 2×Wood screws (timer)
  • 4×Wood screws (driver)
  • 4×Driver screws (bracket)

Splitters for daisy-chaining multiple lights are not included.

Safety and Warning Information

Power and Installation

  • Connect only to properly installed, grounded outlets that meet the electrical requirements of the product. The electrical installation must comply with local regulations.
  • Check local building codes and regulatory requirements before installation. If in doubt, consult a qualified electrician or specialist company.
  • Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
  • Use only original cables and suitable accessories from the manufacturer. Other cables, adapters or hangers may compromise safety.
  • Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric. Fire hazard.
  • All connections must be secure, correct and safely made before operation.
  • Do not rely solely on timers or automatic controls. Unplug the device during extended absences, maintenance or in an emergency.

Mounting, Heat and Light

  • The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware and observe the maximum load capacity of the hanging system.
  • Maintain the minimum distance to plants, surfaces and flammable materials as specified in the user manual. The device generates heat – adequate ventilation and air circulation are required.
  • Ventilation slots and heat sinks must not be blocked or covered. Risk of overheating.
  • When installing in grow tents or closed systems, always ensure adequate ventilation and heat dissipation to prevent overheating and fire hazards.
  • Do not cover, obstruct or install the device in enclosed furniture during operation.
  • Never look directly into the LEDs while they are on. Very bright light can damage the eyes. Use suitable eye protection when working near the device while it is on.
  • Do not drop the device or expose it to strong impacts or vibration.
  • Before operation, make sure there are no packaging parts, tools or other objects on or in the device.

Environment and Operation

  • Do not place or spill liquids on or near the device. The light is protected against water jets according to IP-65, but it is not waterproof.
  • Never use the device in explosive, chemically contaminated, extremely humid or wet environments.
  • The device is not intended for outdoor use or use in unprotected environments.
  • Do not operate the device unattended, especially not overnight without smoke detectors or fire protection equipment.
  • Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
  • Do not allow use by persons (including children) with reduced physical, sensory or mental capabilities without supervision.
  • Keep away from children and pets.

Maintenance, General and Disposal

  • Read the complete user manual before installation and operation and keep it for future reference.
  • Always unplug the device and let it cool down before cleaning, servicing or modifying it.
  • Regularly check for dust buildup, wear and proper function. Dust increases the risk of fire – clean the device carefully when it is switched off and cooled down.
  • Never open, repair or electrically modify the device yourself. Repairs or modifications may only be carried out by authorized qualified personnel. Improper interventions may cause electric shock or fire.
  • Improper installation or use may result in electric shock, fire, injury or damage.
  • Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information

Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com

Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com

Manufacturer and Responsible Person Information

Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com

Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com

ManufacturerAC Infinity Inc.
Product NameIONFRAME EVO8
Product ModelAC-IF8K
UPC Code819137024076
User Manual

LED Grow Light

Product and Mounting Dimensions

Light Dimensions112.0 × 113.0 × 8.6 cm
Driver Dimensions18.2 × 4.0 cm
Timer Dimensions8.4 × 3.0 × 1.8 cm
Power Cord Length243.8 cm

Product Performance and Technical Specifications

Coverage150 × 150 cm
DiodesSamsung LM301H EVO
Spectrum395 nm, 660 nm, 730 nm, 3000 K, 5000 K
Number of LED Chips (total)2688
of which EVO 3000 K1720
of which EVO 5000 K864
of which Seoul 395 nm8
of which OSRAM 660 nm88
of which OSRAM 730 nm8
LED DriverSOSEN-730W
Efficiency (per diode)3.14 µmol/J
PPFD (photosynthetic photon flux density)2013 µmol/m²/s
Power Consumption730 W
Voltage100–277 V AC
Frequency50/60 Hz
Current Drawapprox. 3.17 A (at 230 V)
TimerDigital timer with display
Brightness Levels10
Plug TypeEU plug (Type C/F)
Operating Humidity35 to 85 % RH
Operating Temperature0 to 60 °C
Protection RatingIP-65 (dust-tight, protected against water jets)
ETL CertificationIntertek, No. 5021417
Lifespan50,000 hours
