AC-ADS7
UIS Splitter Hub 4-Port, Adapter Dongle for Shared Programming
€26,99
incl. VAT, plus shipping costs
- Splitter hub that connects identical grow devices to a UIS™ controller (UIS: Universal Infinity System) so they follow shared programming.
- Distributes the programming of one port to up to four UIS devices.
- Compatible with the CONTROLLER AI+ (sold separately) and CONTROLLER 69 PRO (for example included with the CLOUDLINE PRO T) as well as the CONTROLLER 69 PRO+.
- Connects grow equipment such as inline duct fans, humidifiers and LED grow lights under shared programming.
- UIS devices and additional hubs can be connected in up to three tiers.
Product Description

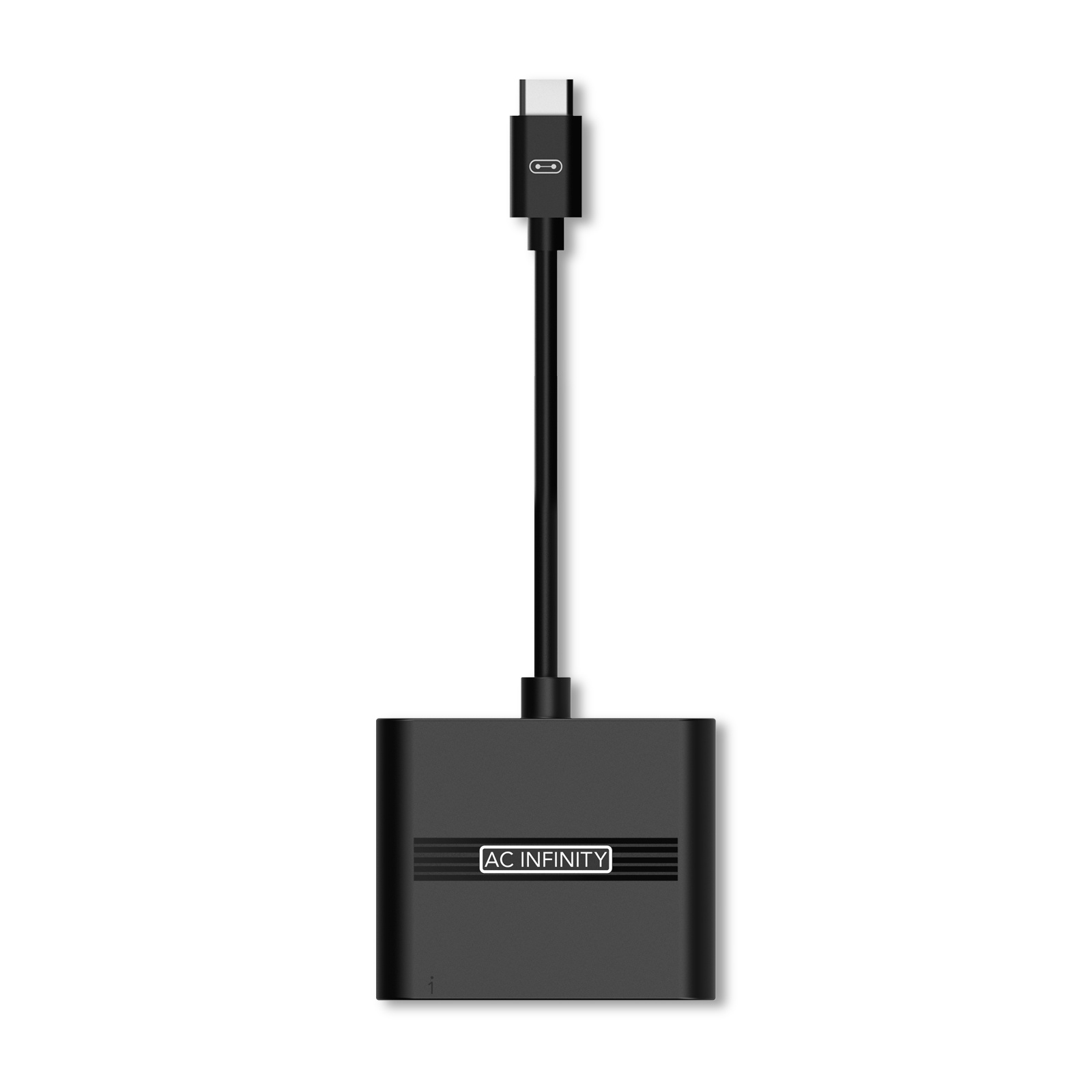

A 4-port splitter hub that distributes the programming of a UIS controller to multiple identical grow devices.
Each connected device follows the programming of a single controller port. With additional hubs, up to three tiers can be connected, for example of EC fans (EC: electronically commutated), humidifiers and LED lighting. Intended for the male-to-male cables included with UIS devices, which are also available separately. Not compatible with the RJ11/12 Type-A and Type-B adapters.
- 4 portsUIS sockets
- up to 40Devices total
- 3 tiersCascadable
- 25.4 cmOverall length
- UISConnection

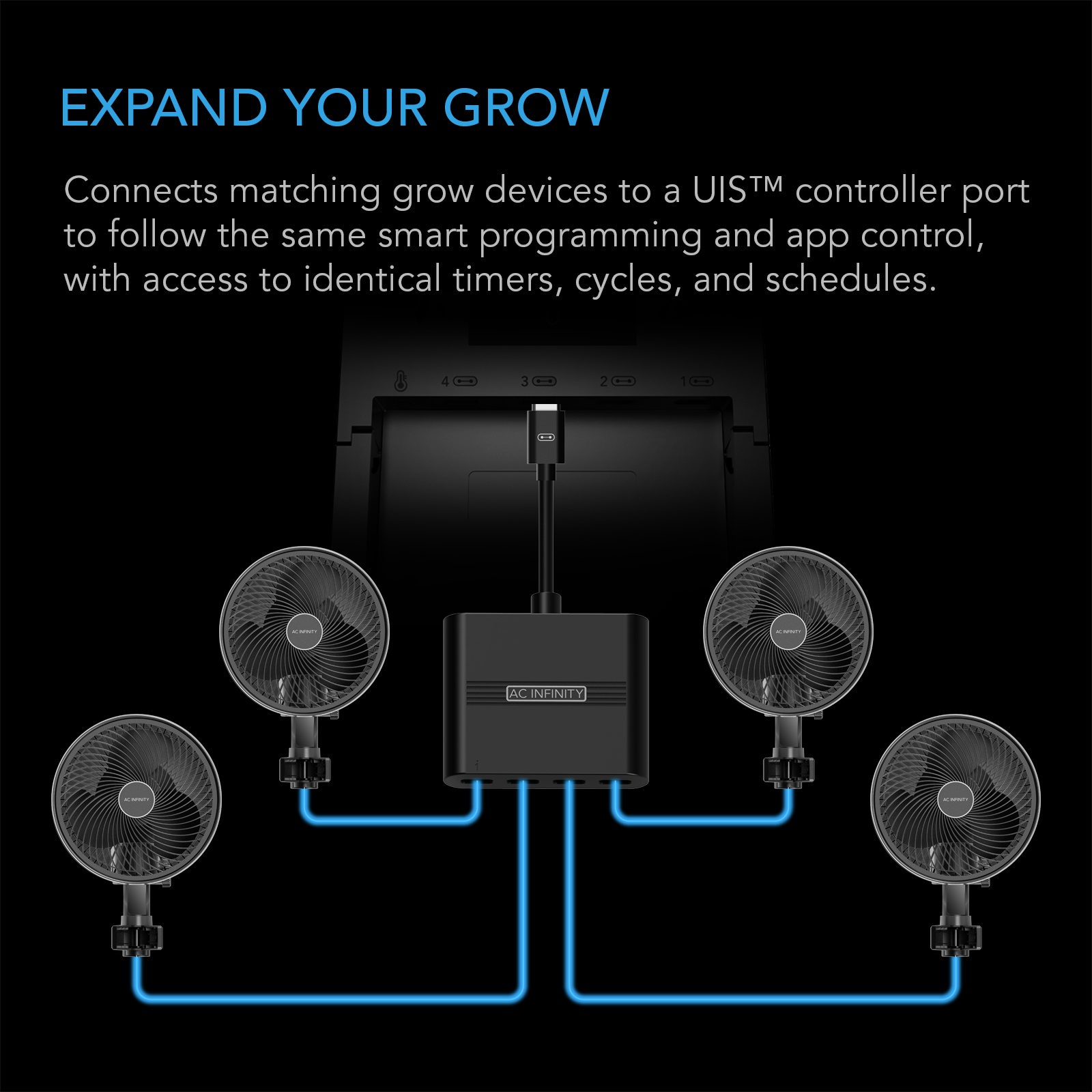

Shared Programming
Up to four identical devices follow the programming of one controller port.

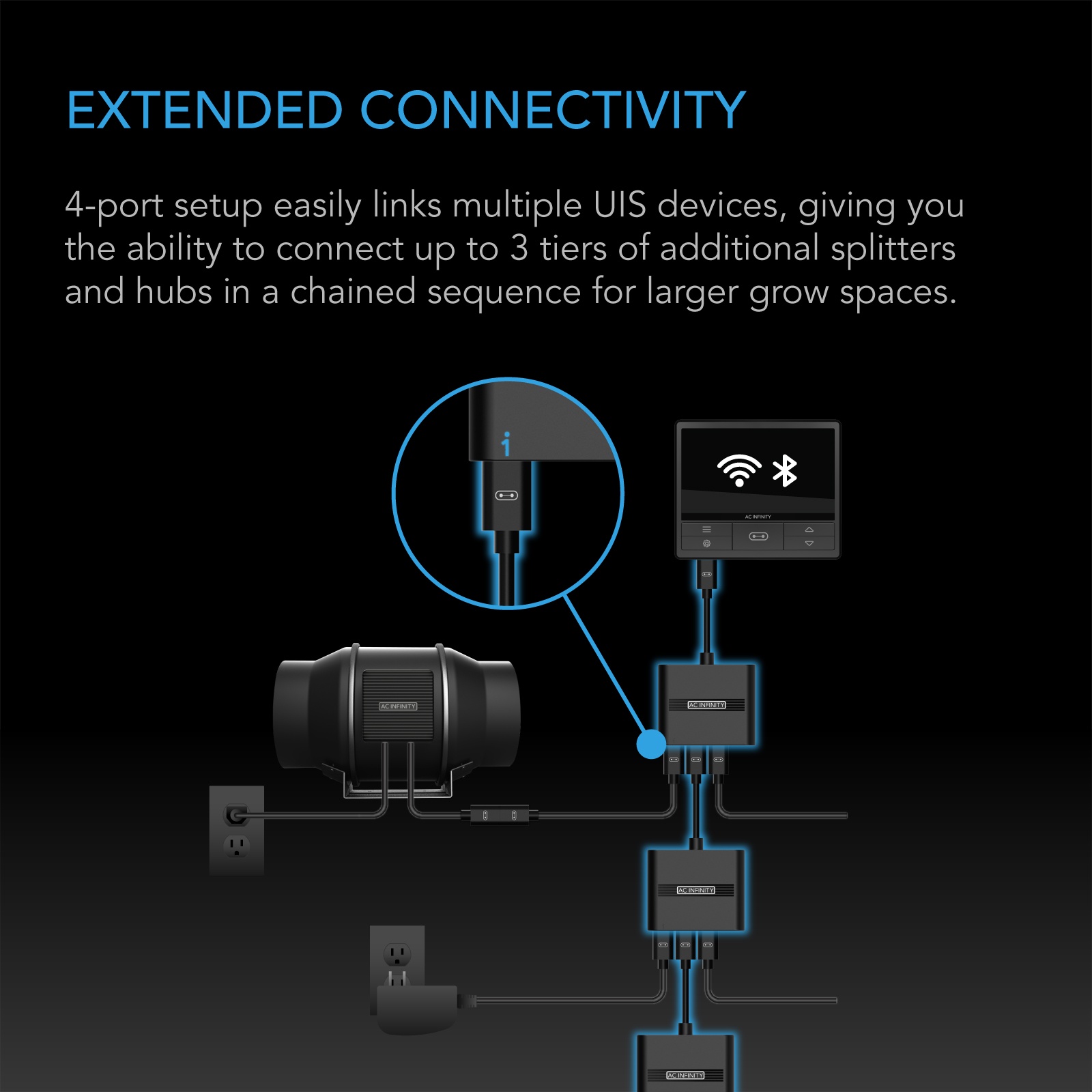

Expandable
Hubs can be combined in up to three tiers – for a total of up to 40 devices.

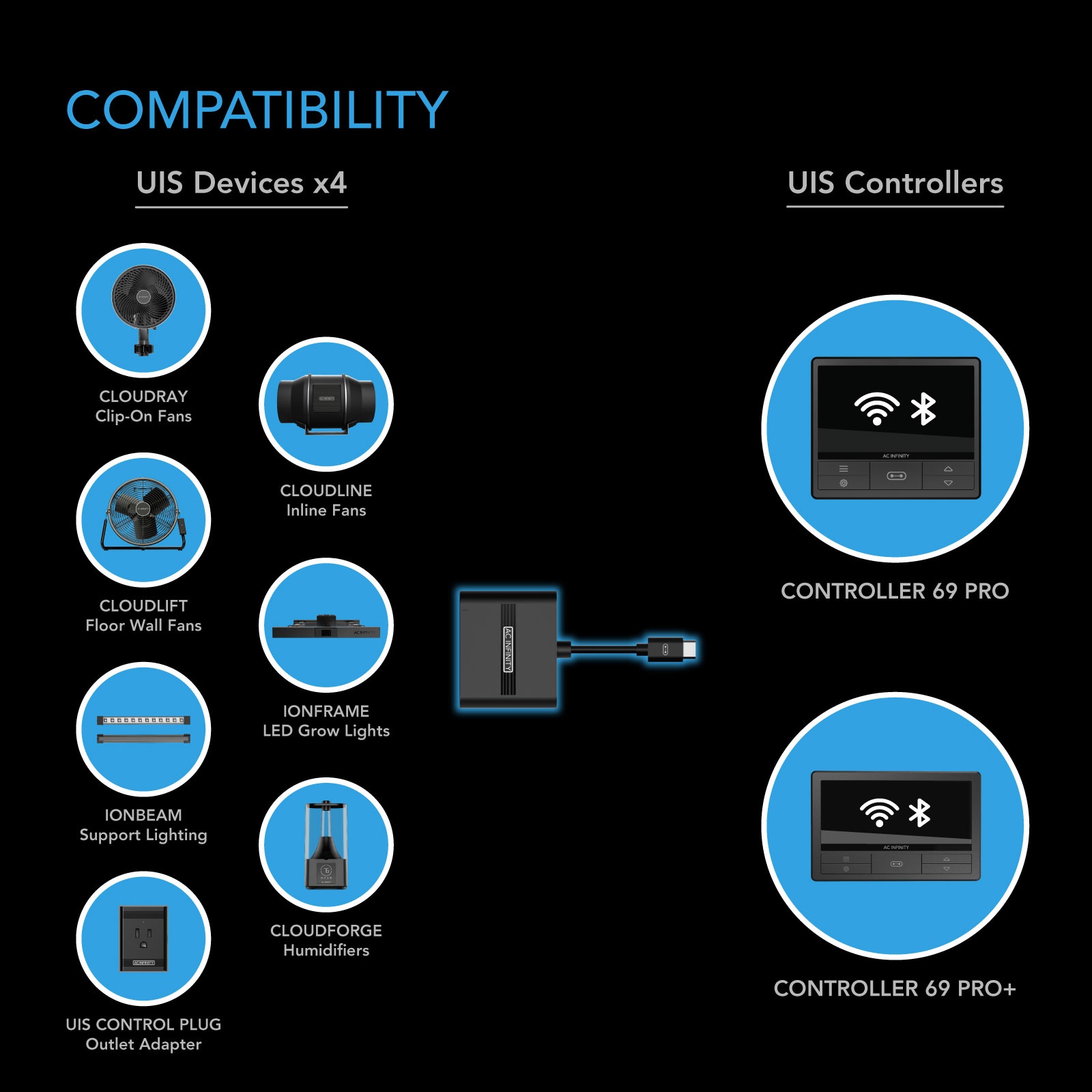

Compatible Devices
For example CLOUDFORGE, CLOUDLINE, CLOUDLIFT, CLOUDRAY, IONFRAME, IONBOARD, IONBEAM, TERRAFORM and THERMOFORGE as well as future UIS devices.
Note
Not compatible with the RJ11/12 lighting adapters Type-A and Type-B.
Package Contents
- 1×UIS splitter hub, 4 ports
Safety and Warning Information
- Use only with compatible AC Infinity UIS controllers and devices.
- UIS connections are for control only – never connect to mains power.
- Insert plugs straight and without force; do not kink or crush cables or run them over sharp edges.
- Protect from moisture and use indoors only.
- Do not make any modifications; do not continue to use damaged parts.
- Keep small parts away from children and pets.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- Splitter hub that connects identical grow devices to a UIS™ controller (UIS: Universal Infinity System) so they follow shared programming.
- Distributes the programming of one port to up to four UIS devices.
- Compatible with the CONTROLLER AI+ (sold separately) and CONTROLLER 69 PRO (for example included with the CLOUDLINE PRO T) as well as the CONTROLLER 69 PRO+.
- Connects grow equipment such as inline duct fans, humidifiers and LED grow lights under shared programming.
- UIS devices and additional hubs can be connected in up to three tiers.
Product Description
A 4-port splitter hub that distributes the programming of a UIS controller to multiple identical grow devices.
Each connected device follows the programming of a single controller port. With additional hubs, up to three tiers can be connected, for example of EC fans (EC: electronically commutated), humidifiers and LED lighting. Intended for the male-to-male cables included with UIS devices, which are also available separately. Not compatible with the RJ11/12 Type-A and Type-B adapters.
- 4 portsUIS sockets
- up to 40Devices total
- 3 tiersCascadable
- 25.4 cmOverall length
- UISConnection
Shared Programming
Up to four identical devices follow the programming of one controller port.
Expandable
Hubs can be combined in up to three tiers – for a total of up to 40 devices.
Compatible Devices
For example CLOUDFORGE, CLOUDLINE, CLOUDLIFT, CLOUDRAY, IONFRAME, IONBOARD, IONBEAM, TERRAFORM and THERMOFORGE as well as future UIS devices.
Note
Not compatible with the RJ11/12 lighting adapters Type-A and Type-B.
Package Contents
- 1×UIS splitter hub, 4 ports
Safety and Warning Information
- Use only with compatible AC Infinity UIS controllers and devices.
- UIS connections are for control only – never connect to mains power.
- Insert plugs straight and without force; do not kink or crush cables or run them over sharp edges.
- Protect from moisture and use indoors only.
- Do not make any modifications; do not continue to use damaged parts.
- Keep small parts away from children and pets.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameUIS Splitter Hub
Product ModelAC-ADS7
UPC Code819137024137

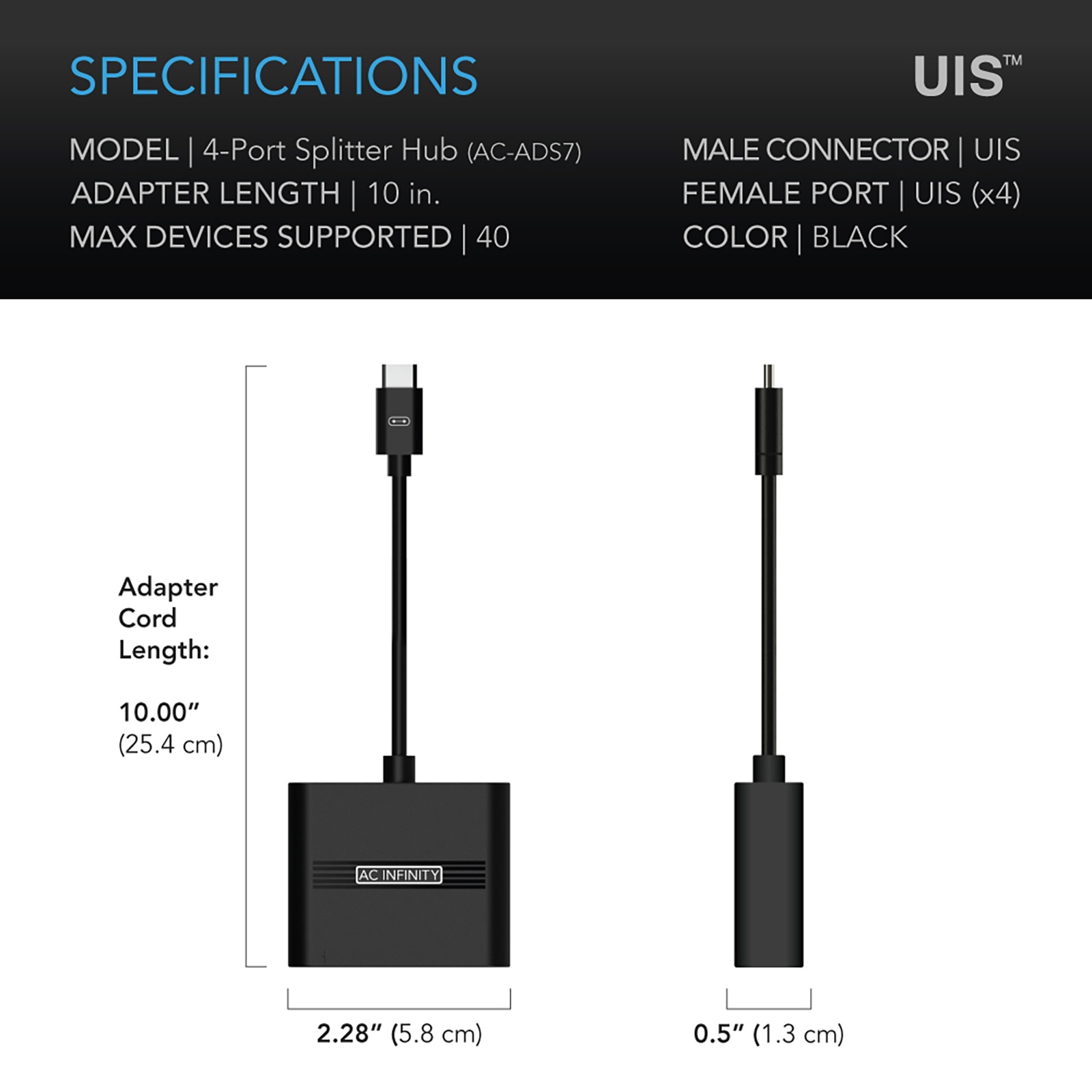

Splitter Hub
Dimensions
| Overall Length | 25.4 cm |
|---|---|
| Overall Width | 5.8 cm |
Connections
| Plug | UIS |
|---|---|
| Sockets | UIS (4×) |
| Maximum Supported Devices | 40 |
