CLOUDRAY S6, Grow Tent Clip Fan 150 mm with 10 Speeds and Dynamic Wind
€69,98
incl. VAT, plus shipping costs
AC-CCA6
CLOUDRAY A6, Grow Tent Clip Fan 150 mm with 10 Speeds and Dynamic Wind, Manual
€59,99
incl. VAT, plus shipping costs
- Newly developed clip fan for long-lasting, tailored air circulation in grow spaces.
- The larger brushless EC motor (EC: electronically commutated) with carbon steel gears and IP-54 protection was redesigned to extend the lifespan of the fan.
- With 10 speeds and 10 dynamic wind modes to simulate natural outdoor air for healthy plant growth.
- Controllable via WiFi app through UIS controllers (UIS: Universal Infinity System) – with access to climate triggers, timers and advanced automations.
- Impeller Ø 150 mm | Airflow up to 553 m³/h | Manual adjustment, no automatic oscillation | Screw clamp for the tent pole, height-adjustable
Product Description
An innovative clip fan, completely redesigned for targeted air circulation in every stage of the plant growth cycle.
Ten digital speeds and ten dynamic wind modes create customizable airflow that varies between levels to simulate an outdoor environment. The clip fan is IP-54 rated to operate reliably in continuous use even at high humidity and temperature. It also meets CE and ETL standards (ETL: Intertek certification mark) for electrical safety. This product is part of the UIS™ platform of grow equipment and smart controllers that connect via WiFi to the AC Infinity app to create the ideal grow environment.
- ManualAdjustment, no automatic oscillation
- 553 m³/hMaximum airflow
- 31 dBANoise level
- 10 + 10Speeds and wind modes
- IP-54Protected against dust and splashing water
Redesigned Motor
A robust EC motor, redesigned in size and construction to extend its lifespan. It features a brushless motor design, durable carbon steel gears and dual ball bearings for mounting in any orientation. Together, these components create an especially durable, long-lasting and energy-efficient clip fan with strong air circulation.
Manually Adjustable Tilt
The fan head is adjusted by hand: it rotates 90° and tilts 55° to direct airflow precisely at the plants.
Durable and Certified
The fan is IP-54 rated (protected against dust and splashing water, but not waterproof) to withstand humid grow rooms. It meets CE and ETL standards.
Mounting with Screw Clamp
The included screw clamp is placed around a tent pole and screwed together at the front and back. This allows the fan to be attached to any pole in the tent and its height to be changed at any time.

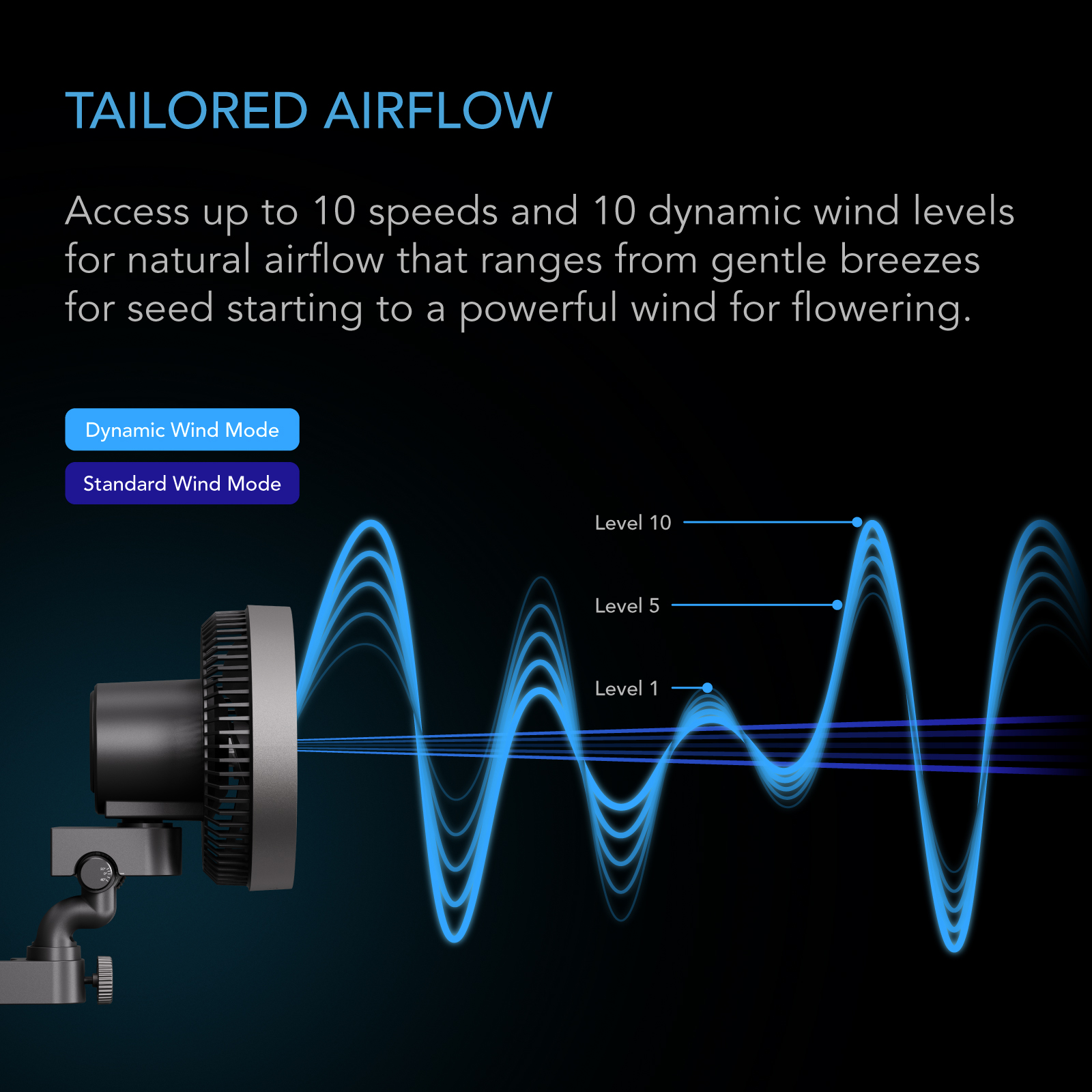

Tailored Air Circulation
The 10 speeds and 10 dynamic wind modes provide full control over air circulation for every growth stage. In the dynamic modes, the maximum strength of the varying airflow can be set – for healthier growth with less stress on the plants. The range spans from very gentle breezes for germination and seedlings to strong airflow for the vegetative and flowering stages.

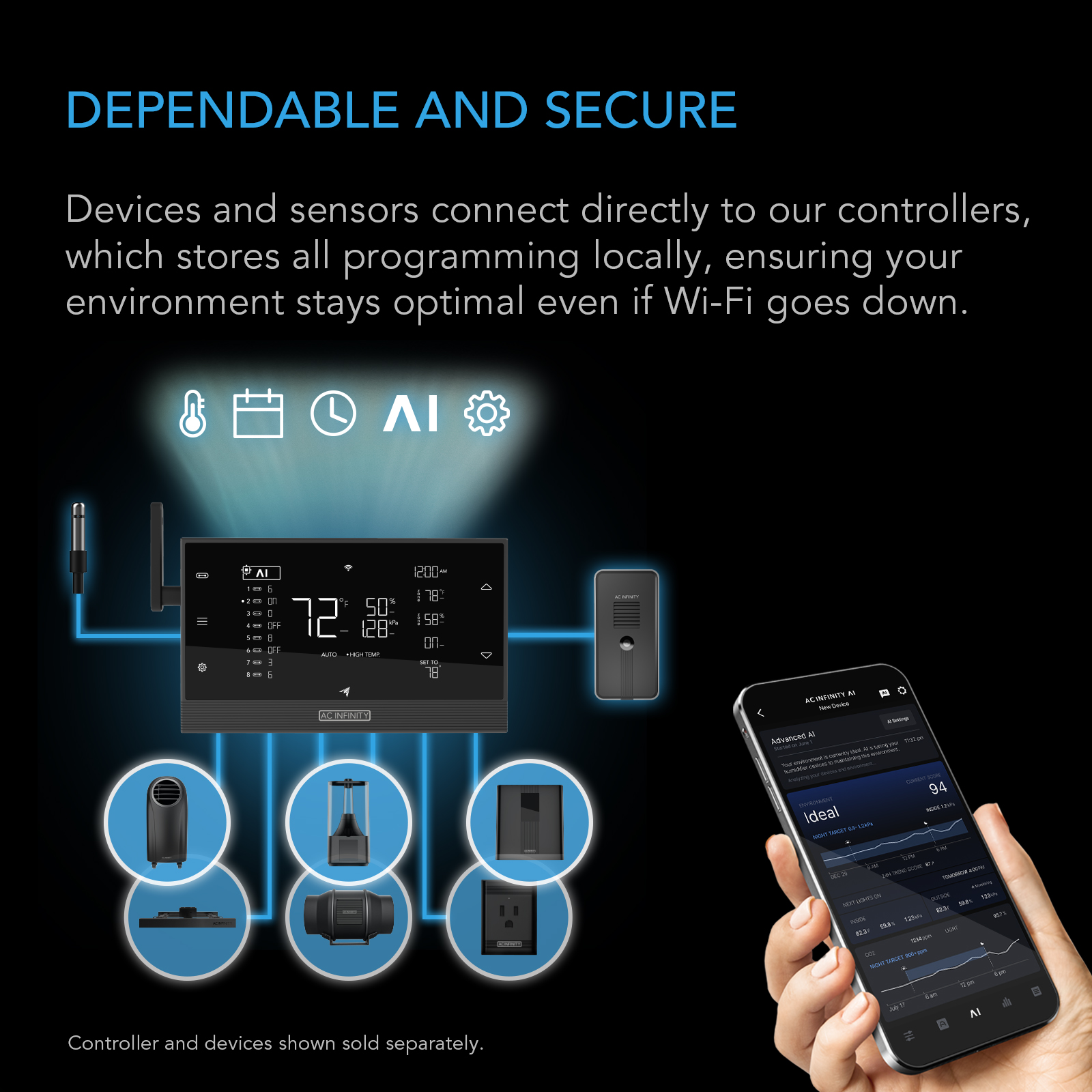

UIS PLATFORM
Control on the Device or Integrate via UIS Controller
Basic functions are set directly on the fan. A UIS controller additionally integrates it into the AC Infinity system for control via the app.
On the device10 speeds and 10 dynamic wind modes
With UIS controller and appControl via WiFi app, climate triggers, timers and automations
UIS controller sold separately, for example the CONTROLLER AI+.
No Automatic Oscillation
The CLOUDRAY A series does not oscillate automatically: the fan head is adjusted by hand (90° rotation, 55° tilt). For an automatically oscillating clip fan, the CLOUDRAY S6 with 10 adjustable oscillation ranges is the right choice.
Package Contents
- 1×Clip fan CLOUDRAY A6
- 1×Screw clamp
- 1×Extension cable
- 4×Cable ties
- 1×Cable holder
Safety and Warning Information
Power and Cables
- Connect only to properly installed, grounded outlets.
- Do not use damaged cables or plugs. If cables are damaged, disconnect from the power supply immediately.
- Use only original cables and suitable accessories.
- Connect all connections securely and correctly before operating the device.
- Route cables and fasteners so that they are not kinked, crushed or damaged.
- Unplug the power cord before cleaning or servicing.
Operation and Mounting
- Do not insert foreign objects, fingers or items into the fan.
- Do not touch the fan during operation – risk of injury from moving parts.
- Never cover or block the fan.
- Do not drop the device or expose it to strong impacts.
- Make sure the fan is mounted securely and check regularly that it is held firmly.
- Use the device only for its intended purpose – solely as a clip fan in a grow tent or indoor space.
- Keep the device away from children and pets.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
General and Disposal
- Read the user manual completely before first use.
- Have modifications or repairs carried out only by authorized qualified personnel.
- Improper use may result in injury or property damage.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- Newly developed clip fan for long-lasting, tailored air circulation in grow spaces.
- The larger brushless EC motor (EC: electronically commutated) with carbon steel gears and IP-54 protection was redesigned to extend the lifespan of the fan.
- With 10 speeds and 10 dynamic wind modes to simulate natural outdoor air for healthy plant growth.
- Controllable via WiFi app through UIS controllers (UIS: Universal Infinity System) – with access to climate triggers, timers and advanced automations.
- Impeller Ø 150 mm | Airflow up to 553 m³/h | Manual adjustment, no automatic oscillation | Screw clamp for the tent pole, height-adjustable
Product Description
An innovative clip fan, completely redesigned for targeted air circulation in every stage of the plant growth cycle.
Ten digital speeds and ten dynamic wind modes create customizable airflow that varies between levels to simulate an outdoor environment. The clip fan is IP-54 rated to operate reliably in continuous use even at high humidity and temperature. It also meets CE and ETL standards (ETL: Intertek certification mark) for electrical safety. This product is part of the UIS™ platform of grow equipment and smart controllers that connect via WiFi to the AC Infinity app to create the ideal grow environment.
- ManualAdjustment, no automatic oscillation
- 553 m³/hMaximum airflow
- 31 dBANoise level
- 10 + 10Speeds and wind modes
- IP-54Protected against dust and splashing water
Redesigned Motor
A robust EC motor, redesigned in size and construction to extend its lifespan. It features a brushless motor design, durable carbon steel gears and dual ball bearings for mounting in any orientation. Together, these components create an especially durable, long-lasting and energy-efficient clip fan with strong air circulation.
Manually Adjustable Tilt
The fan head is adjusted by hand: it rotates 90° and tilts 55° to direct airflow precisely at the plants.
Durable and Certified
The fan is IP-54 rated (protected against dust and splashing water, but not waterproof) to withstand humid grow rooms. It meets CE and ETL standards.
Mounting with Screw Clamp
The included screw clamp is placed around a tent pole and screwed together at the front and back. This allows the fan to be attached to any pole in the tent and its height to be changed at any time.
Tailored Air Circulation
The 10 speeds and 10 dynamic wind modes provide full control over air circulation for every growth stage. In the dynamic modes, the maximum strength of the varying airflow can be set – for healthier growth with less stress on the plants. The range spans from very gentle breezes for germination and seedlings to strong airflow for the vegetative and flowering stages.
UIS PLATFORM
Control on the Device or Integrate via UIS Controller
Basic functions are set directly on the fan. A UIS controller additionally integrates it into the AC Infinity system for control via the app.
On the device10 speeds and 10 dynamic wind modes
With UIS controller and appControl via WiFi app, climate triggers, timers and automations
UIS controller sold separately, for example the CONTROLLER AI+.
No Automatic Oscillation
The CLOUDRAY A series does not oscillate automatically: the fan head is adjusted by hand (90° rotation, 55° tilt). For an automatically oscillating clip fan, the CLOUDRAY S6 with 10 adjustable oscillation ranges is the right choice.
Package Contents
- 1×Clip fan CLOUDRAY A6
- 1×Screw clamp
- 1×Extension cable
- 4×Cable ties
- 1×Cable holder
Safety and Warning Information
Power and Cables
- Connect only to properly installed, grounded outlets.
- Do not use damaged cables or plugs. If cables are damaged, disconnect from the power supply immediately.
- Use only original cables and suitable accessories.
- Connect all connections securely and correctly before operating the device.
- Route cables and fasteners so that they are not kinked, crushed or damaged.
- Unplug the power cord before cleaning or servicing.
Operation and Mounting
- Do not insert foreign objects, fingers or items into the fan.
- Do not touch the fan during operation – risk of injury from moving parts.
- Never cover or block the fan.
- Do not drop the device or expose it to strong impacts.
- Make sure the fan is mounted securely and check regularly that it is held firmly.
- Use the device only for its intended purpose – solely as a clip fan in a grow tent or indoor space.
- Keep the device away from children and pets.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
General and Disposal
- Read the user manual completely before first use.
- Have modifications or repairs carried out only by authorized qualified personnel.
- Improper use may result in injury or property damage.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameCLOUDRAY A6
Product ModelAC-CCA6
UPC Code819137022416
User Manual
Clip Fan

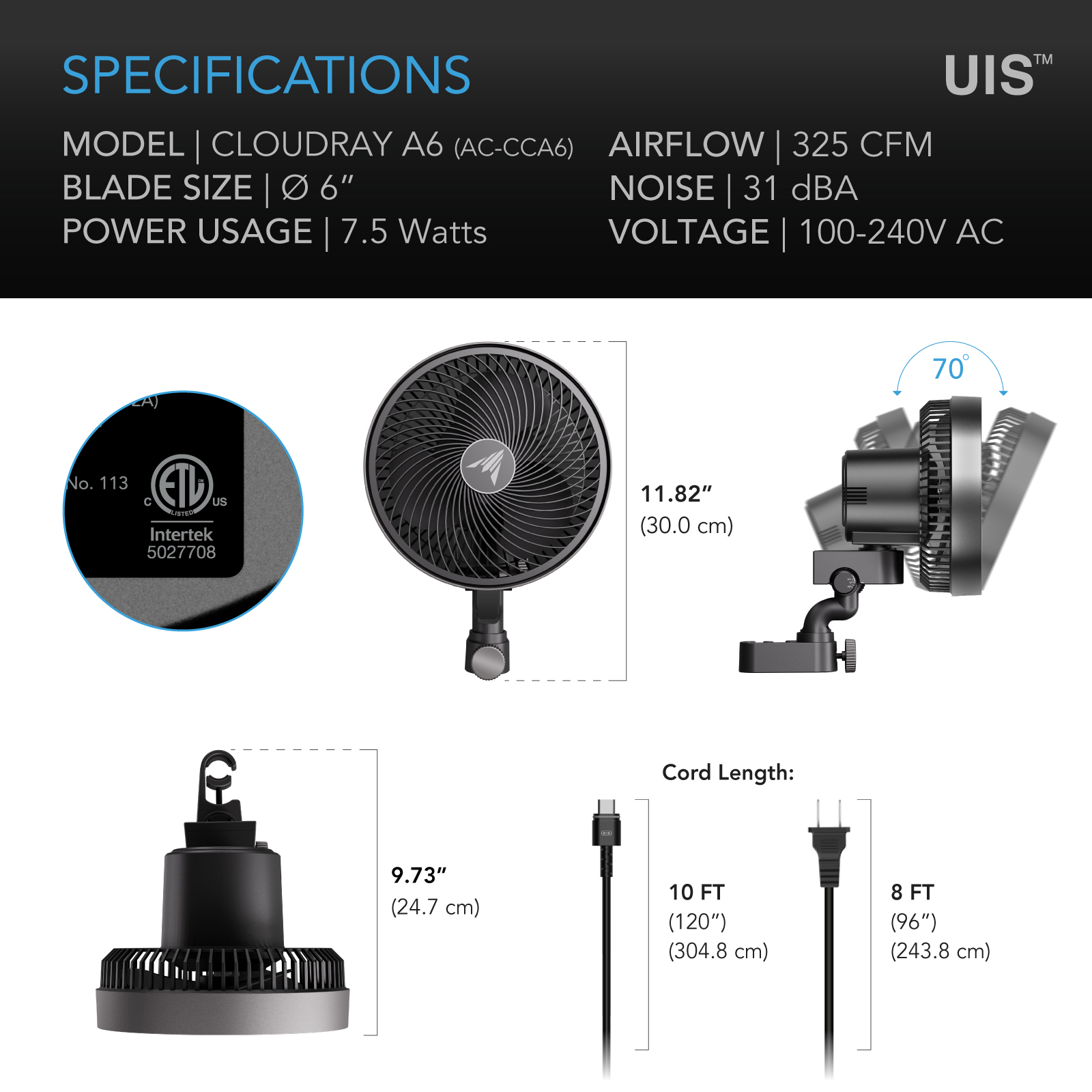

Product and Mounting Dimensions
| Impeller Size | Ø 150 mm |
|---|---|
| Overall Dimensions | 24.7 × 30.0 cm |
| Cord Length to Plug | 2.44 m |
Performance and Technical Specifications
| Maximum Airflow | 553 m³/h |
|---|---|
| Noise Level | 31 dBA |
| Static Pressure | 25 Pa |
| Operating Voltage | 100–240 V AC |
| Power | 7.5 W |
| Current | 0.14 A |
| Speed Levels | 10 |
| Dynamic Wind Modes | 10 |
| Oscillation | No automatic oscillation (head manually rotatable 90°, tiltable 55°) |
| Rotation Range | 90° |
| Tilt Angle | 55° |
| Motor | Brushless EC motor (EC: electronically commutated) |
| Fan Bearings | Dual ball bearings |
| Mounting Positions | Horizontal or vertical |
| Protection Rating | IP-54 (protected against dust and splashing water) |
| ETL Certification | Yes (Intertek) |
| Operating Humidity | 35 to 85 % RH |
| Operating Temperature | 0 to 60 °C |
| Lifespan | 67,000 hours |
