CLOUDRAY S6, Grow Tent Clip Fan 150 mm with 10 Speeds and Dynamic Wind
€69,98
incl. VAT, plus shipping costs
AC-CCX6
CLOUDRAY S6 2-Pack, Grow Tent Clip Fan 150 mm with 10 Speeds and Dynamic Wind
€139,00
incl. VAT, plus shipping costs
- Two Ø 150 mm clip fans designed for long-lasting, targeted air circulation in grow environments.
- The powerful brushless EC motor (EC: electronically commutated) with carbon steel gears, dual ball bearings and IP-54 protection ensures a long lifespan.
- Automatic oscillation: 10 adjustable oscillation ranges direct airflow to specific plants or spread it over a wide area – while avoiding obstacles.
- With 10 speeds and 10 dynamic wind modes, the fan simulates natural outdoor air and supports healthy plant growth.
- Via UIS controllers (UIS: Universal Infinity System), it can be controlled by WiFi app and integrated into climate triggers, timers and automations.
Product Description
A 2-pack of innovative clip fans, completely redesigned for targeted air circulation in every stage of the plant growth cycle.
Ten digital speeds and ten dynamic wind modes create customizable airflow that varies between levels to simulate an outdoor environment. The clip fan is IP-54 rated to operate reliably in continuous use even at high humidity and temperature. It also meets CE and ETL standards (ETL: Intertek certification mark) for electrical safety. This product is part of the UIS™ platform of grow equipment and smart controllers that connect via WiFi to the AC Infinity app to create the ideal grow environment.
- AutomaticOscillation, 10 ranges
- 2 fansCLOUDRAY S6 in the set
- 553 m³/hAirflow per fan
- 31 dBANoise level
- 10 + 10Speeds and wind modes

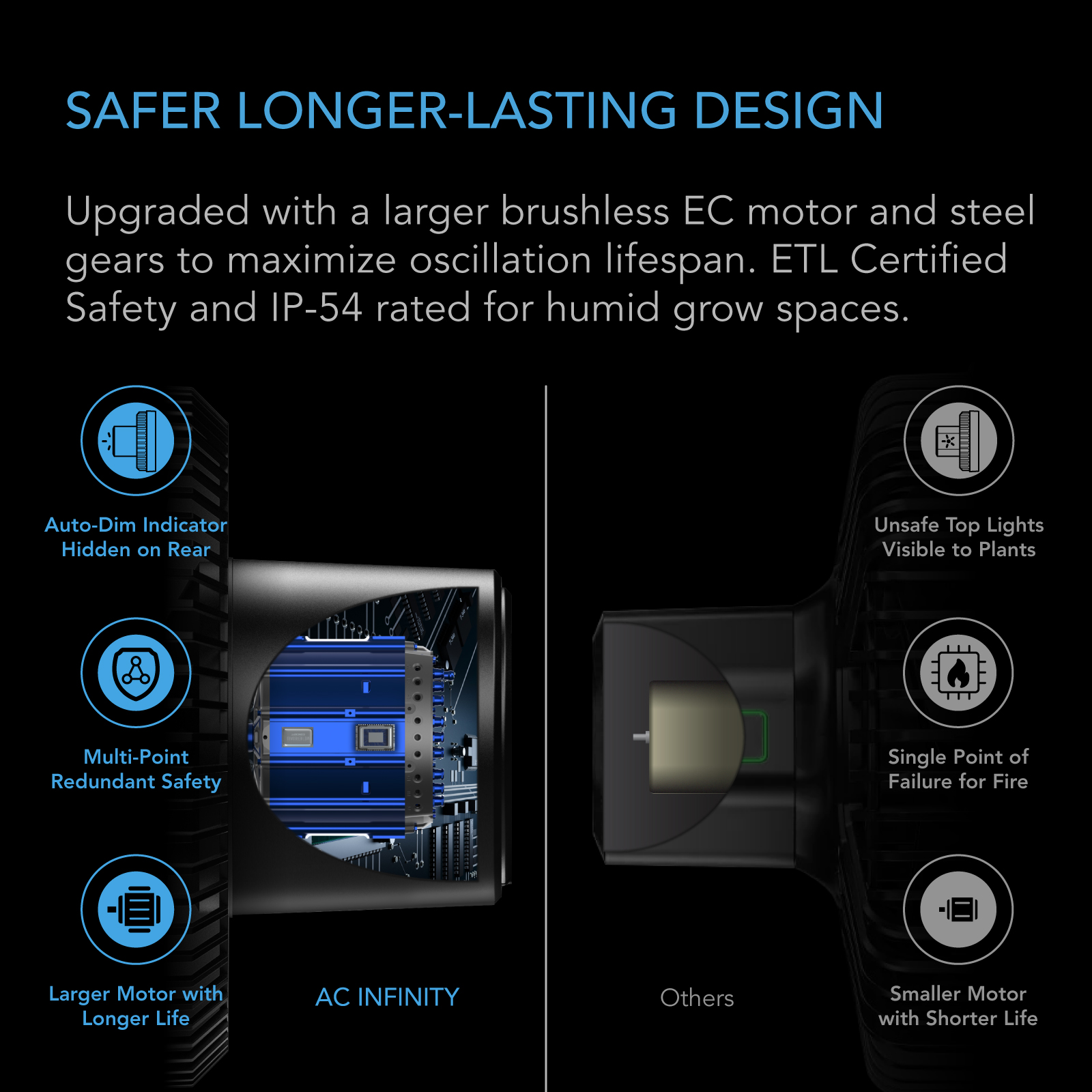

Redesigned Motor
A robust EC motor, redesigned in size and construction to extend its lifespan. It features a brushless motor design, durable carbon steel gears and dual ball bearings for mounting in any orientation. Together, these components create an especially durable, long-lasting and energy-efficient clip fan with strong air circulation.

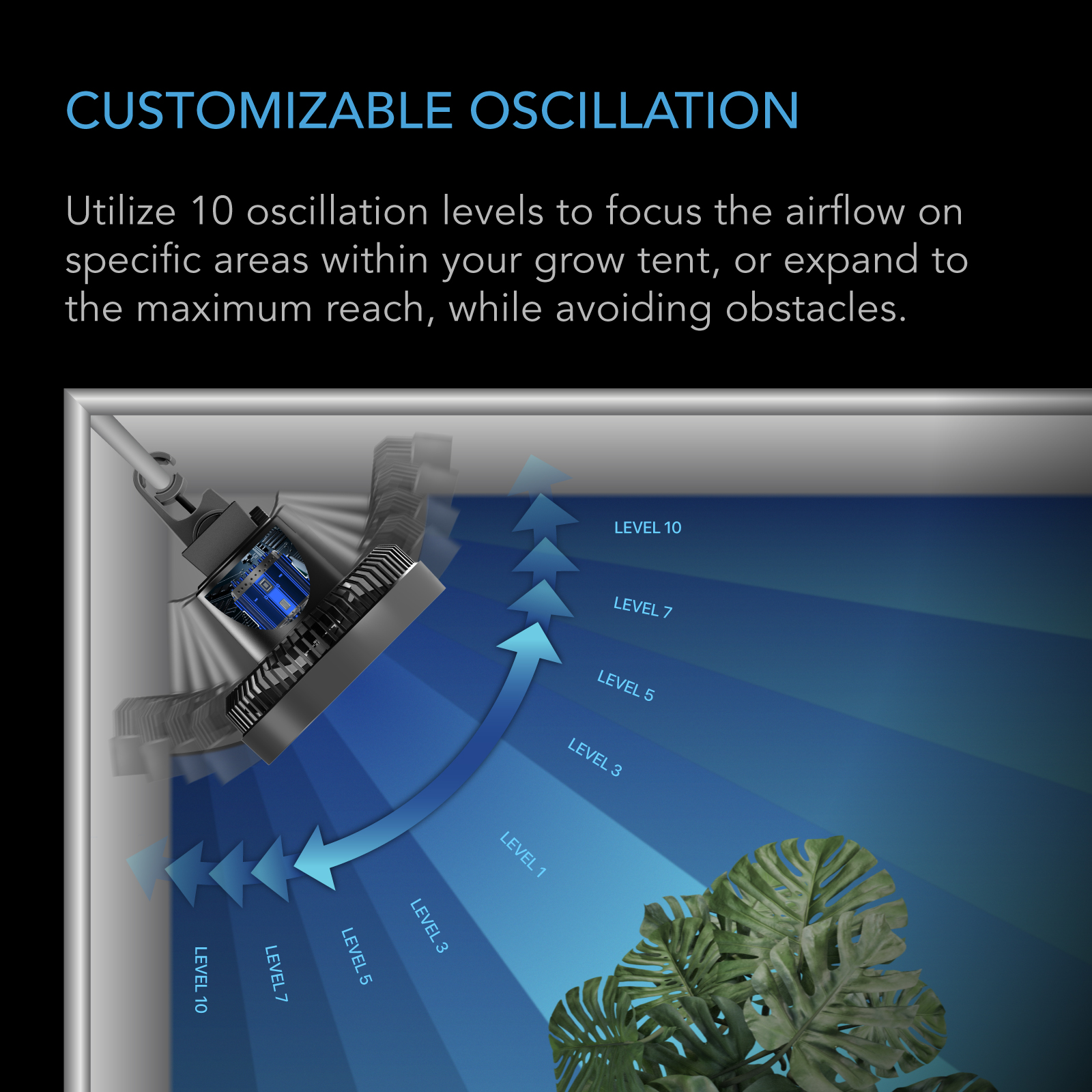

Adjustable Oscillation
With 10 oscillation levels, airflow can be directed at specific areas of the grow tent or extended to maximum reach – avoiding obstacles such as poles or lights.
Durable and Certified
The fan is IP-54 rated (protected against dust and splashing water, but not waterproof) to withstand humid grow rooms. It meets CE and ETL standards.
Mounting with Screw Clamp
The included screw clamps are placed around a tent pole and screwed together at the front and back. This allows the fans to be attached to any pole in the tent and their height to be changed at any time. The fan head rotates 90° and tilts 55°.

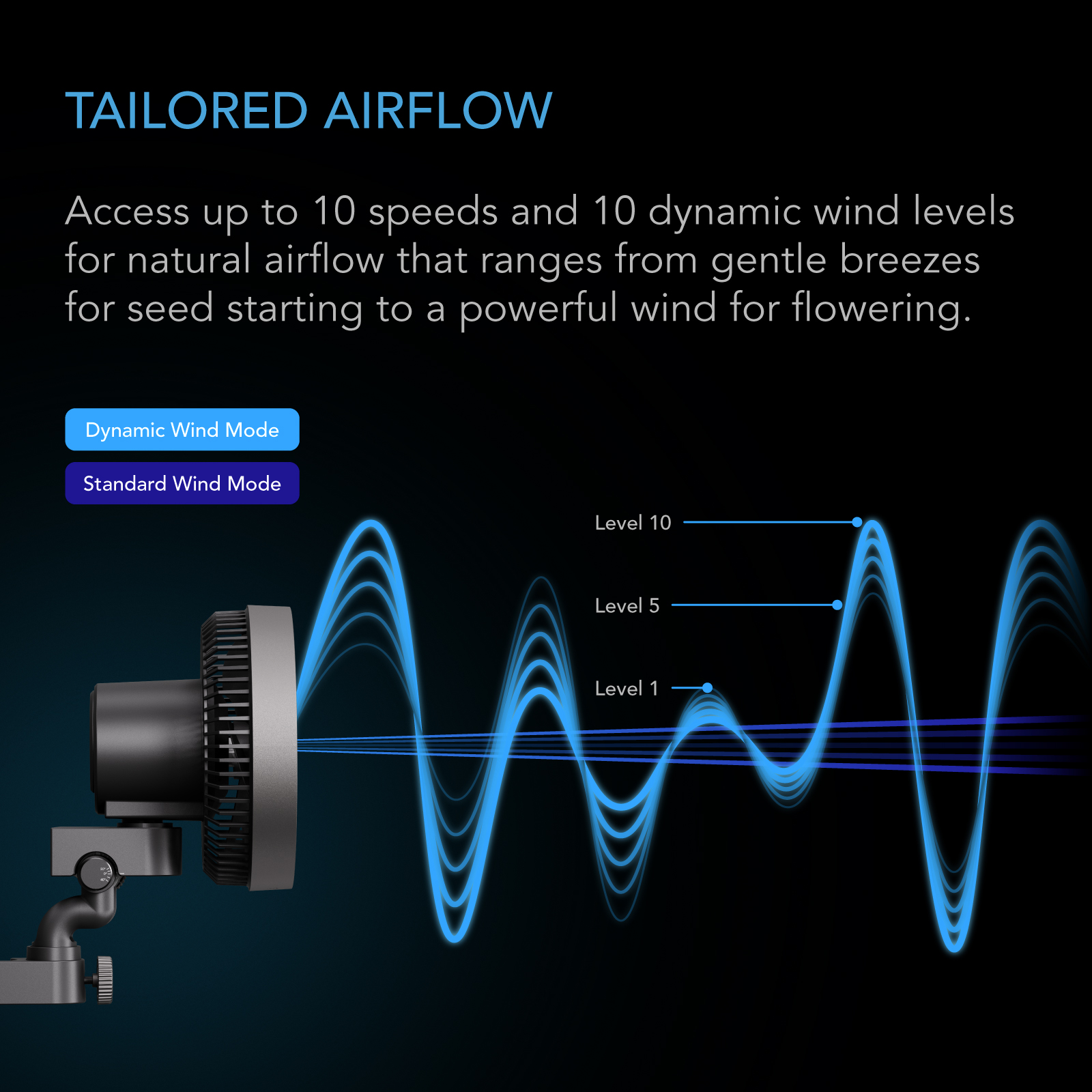

Tailored Air Circulation
The 10 speeds and 10 dynamic wind modes provide full control over air circulation for every growth stage. In the dynamic modes, the maximum strength of the varying airflow can be set – for healthier growth with less stress on the plants. The range spans from very gentle breezes for germination and seedlings to strong airflow for the vegetative and flowering stages.

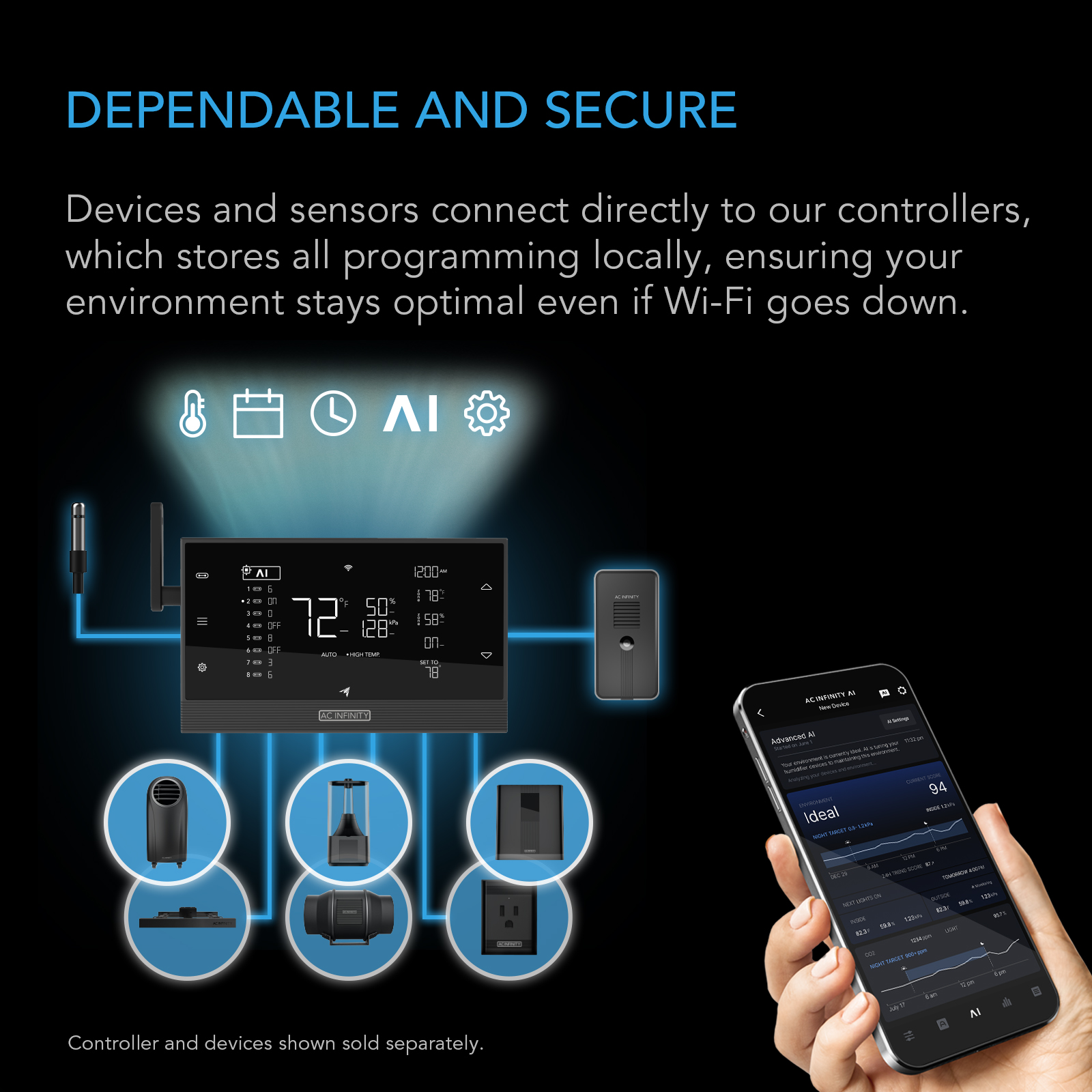

UIS PLATFORM
Control on the Device or Integrate via UIS Controller
Basic functions are set directly on the fan. A UIS controller additionally integrates it into the AC Infinity system for control via the app.
On the device10 speeds, 10 dynamic wind modes and 10 oscillation ranges
With UIS controller and appControl via WiFi app, climate triggers, timers and automations
UIS controller sold separately, for example the CONTROLLER AI+.
Package Contents

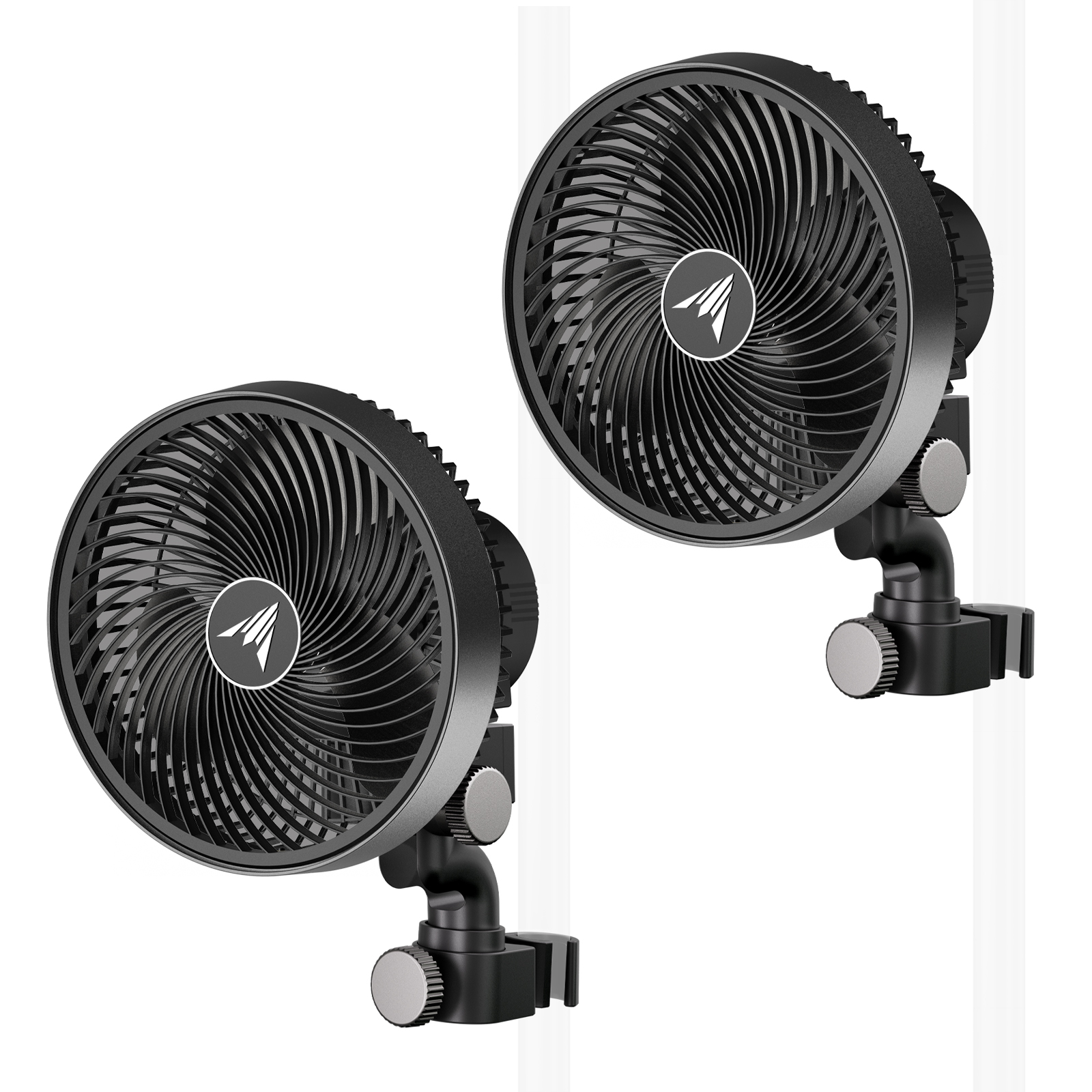

- 2×Clip fans CLOUDRAY S6
- 2×Screw clamps
- 2×Extension cable
- 8×Cable ties
- 2×Cable holder
Safety and Warning Information
Power and Cables
- Connect only to properly installed, grounded outlets.
- Do not use damaged cables or plugs. If cables are damaged, disconnect from the power supply immediately.
- Use only original cables and suitable accessories.
- Connect all connections securely and correctly before operating the device.
- Route cables and fasteners so that they are not kinked, crushed or damaged.
- Unplug the power cord before cleaning or servicing.
Operation and Mounting
- Do not insert foreign objects, fingers or items into the fan.
- Do not touch the fan during operation – risk of injury from moving parts.
- Never cover or block the fan.
- Do not drop the device or expose it to strong impacts.
- Make sure the fan is mounted securely and check regularly that it is held firmly.
- Use the device only for its intended purpose – solely as a clip fan in a grow tent or indoor space.
- Keep the device away from children and pets.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
General and Disposal
- Read the user manual completely before first use.
- Have modifications or repairs carried out only by authorized qualified personnel.
- Improper use may result in injury or property damage.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- Two Ø 150 mm clip fans designed for long-lasting, targeted air circulation in grow environments.
- The powerful brushless EC motor (EC: electronically commutated) with carbon steel gears, dual ball bearings and IP-54 protection ensures a long lifespan.
- Automatic oscillation: 10 adjustable oscillation ranges direct airflow to specific plants or spread it over a wide area – while avoiding obstacles.
- With 10 speeds and 10 dynamic wind modes, the fan simulates natural outdoor air and supports healthy plant growth.
- Via UIS controllers (UIS: Universal Infinity System), it can be controlled by WiFi app and integrated into climate triggers, timers and automations.
Product Description
A 2-pack of innovative clip fans, completely redesigned for targeted air circulation in every stage of the plant growth cycle.
Ten digital speeds and ten dynamic wind modes create customizable airflow that varies between levels to simulate an outdoor environment. The clip fan is IP-54 rated to operate reliably in continuous use even at high humidity and temperature. It also meets CE and ETL standards (ETL: Intertek certification mark) for electrical safety. This product is part of the UIS™ platform of grow equipment and smart controllers that connect via WiFi to the AC Infinity app to create the ideal grow environment.
- AutomaticOscillation, 10 ranges
- 2 fansCLOUDRAY S6 in the set
- 553 m³/hAirflow per fan
- 31 dBANoise level
- 10 + 10Speeds and wind modes
Redesigned Motor
A robust EC motor, redesigned in size and construction to extend its lifespan. It features a brushless motor design, durable carbon steel gears and dual ball bearings for mounting in any orientation. Together, these components create an especially durable, long-lasting and energy-efficient clip fan with strong air circulation.
Adjustable Oscillation
With 10 oscillation levels, airflow can be directed at specific areas of the grow tent or extended to maximum reach – avoiding obstacles such as poles or lights.
Durable and Certified
The fan is IP-54 rated (protected against dust and splashing water, but not waterproof) to withstand humid grow rooms. It meets CE and ETL standards.
Mounting with Screw Clamp
The included screw clamps are placed around a tent pole and screwed together at the front and back. This allows the fans to be attached to any pole in the tent and their height to be changed at any time. The fan head rotates 90° and tilts 55°.
Tailored Air Circulation
The 10 speeds and 10 dynamic wind modes provide full control over air circulation for every growth stage. In the dynamic modes, the maximum strength of the varying airflow can be set – for healthier growth with less stress on the plants. The range spans from very gentle breezes for germination and seedlings to strong airflow for the vegetative and flowering stages.
UIS PLATFORM
Control on the Device or Integrate via UIS Controller
Basic functions are set directly on the fan. A UIS controller additionally integrates it into the AC Infinity system for control via the app.
On the device10 speeds, 10 dynamic wind modes and 10 oscillation ranges
With UIS controller and appControl via WiFi app, climate triggers, timers and automations
UIS controller sold separately, for example the CONTROLLER AI+.
Package Contents
- 2×Clip fans CLOUDRAY S6
- 2×Screw clamps
- 2×Extension cable
- 8×Cable ties
- 2×Cable holder
Safety and Warning Information
Power and Cables
- Connect only to properly installed, grounded outlets.
- Do not use damaged cables or plugs. If cables are damaged, disconnect from the power supply immediately.
- Use only original cables and suitable accessories.
- Connect all connections securely and correctly before operating the device.
- Route cables and fasteners so that they are not kinked, crushed or damaged.
- Unplug the power cord before cleaning or servicing.
Operation and Mounting
- Do not insert foreign objects, fingers or items into the fan.
- Do not touch the fan during operation – risk of injury from moving parts.
- Never cover or block the fan.
- Do not drop the device or expose it to strong impacts.
- Make sure the fan is mounted securely and check regularly that it is held firmly.
- Use the device only for its intended purpose – solely as a clip fan in a grow tent or indoor space.
- Keep the device away from children and pets.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
General and Disposal
- Read the user manual completely before first use.
- Have modifications or repairs carried out only by authorized qualified personnel.
- Improper use may result in injury or property damage.
- Do not dispose of this product with household waste – take it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameCLOUDRAY S6 (2-Pack)
Product ModelAC-CCX6
UPC Code819137024656
User Manual
Clip Fans

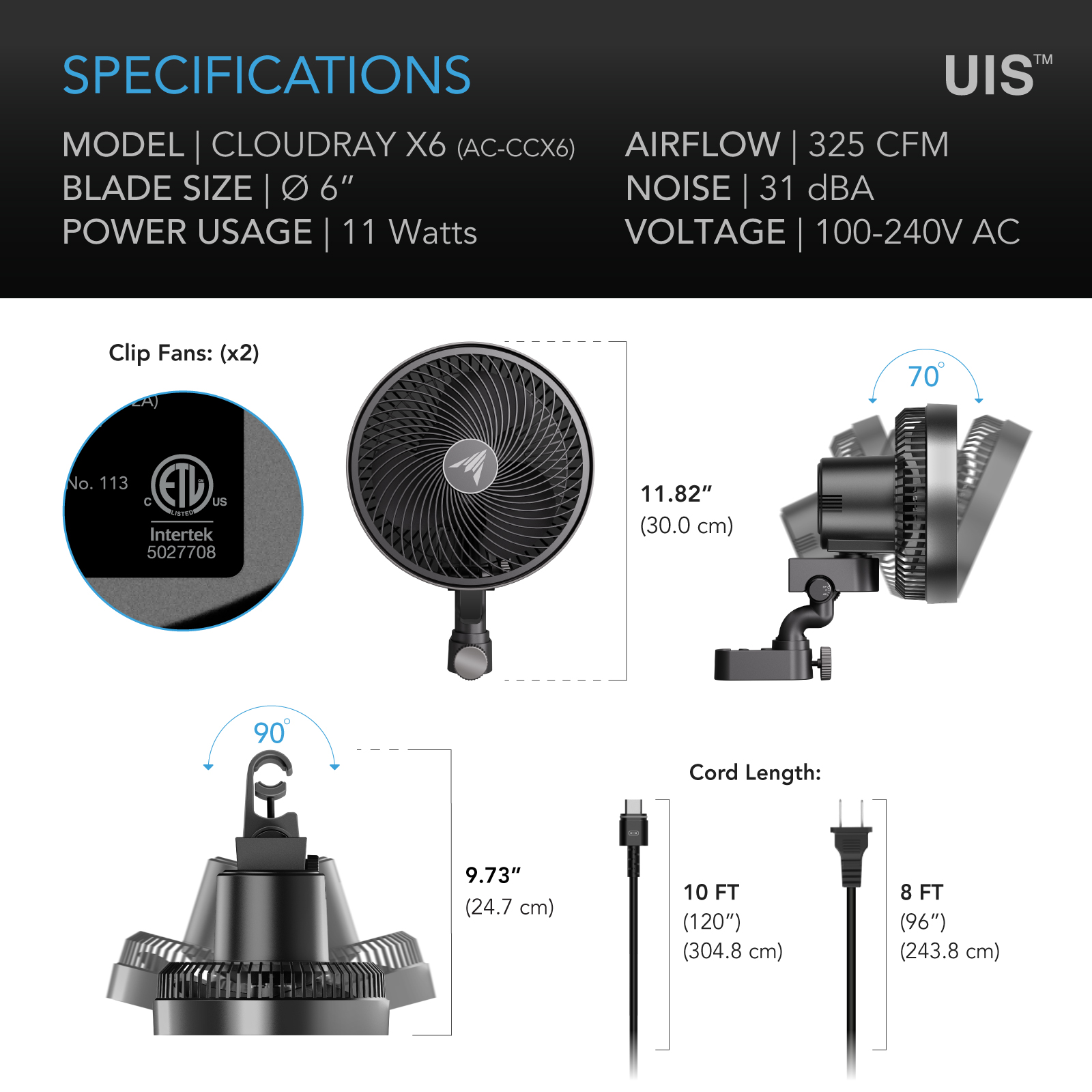

Product and Mounting Dimensions (per fan)
| Impeller Size | Ø 150 mm |
|---|---|
| Overall Dimensions | 24.7 × 30.0 cm |
| Cord Length to Plug | 2.44 m |
Performance and Technical Specifications (per fan)
| Maximum Airflow | 553 m³/h |
|---|---|
| Noise Level | 31 dBA |
| Static Pressure | 25 Pa |
| Operating Voltage | 100–240 V AC |
| Power | 11 W |
| Current | 0.14 A |
| Speed Levels | 10 |
| Dynamic Wind Modes | 10 |
| Oscillation | Automatic, 10 ranges |
| Rotation Range | 90° |
| Tilt Angle | 55° |
| Motor | Brushless EC motor (EC: electronically commutated) |
| Fan Bearings | Dual ball bearings |
| Mounting Positions | Horizontal or vertical |
| Protection Rating | IP-54 (protected against dust and splashing water) |
| ETL Certification | Yes (Intertek) |
| Operating Humidity | 35 to 85 % RH |
| Operating Temperature | 0 to 60 °C |
| Lifespan | 67,000 hours |
