IONBEAM S16, Supplemental Grow Light Bars 40.6 cm, Full Spectrum LED
€119,00
incl. VAT, plus shipping costs
AC-NES11

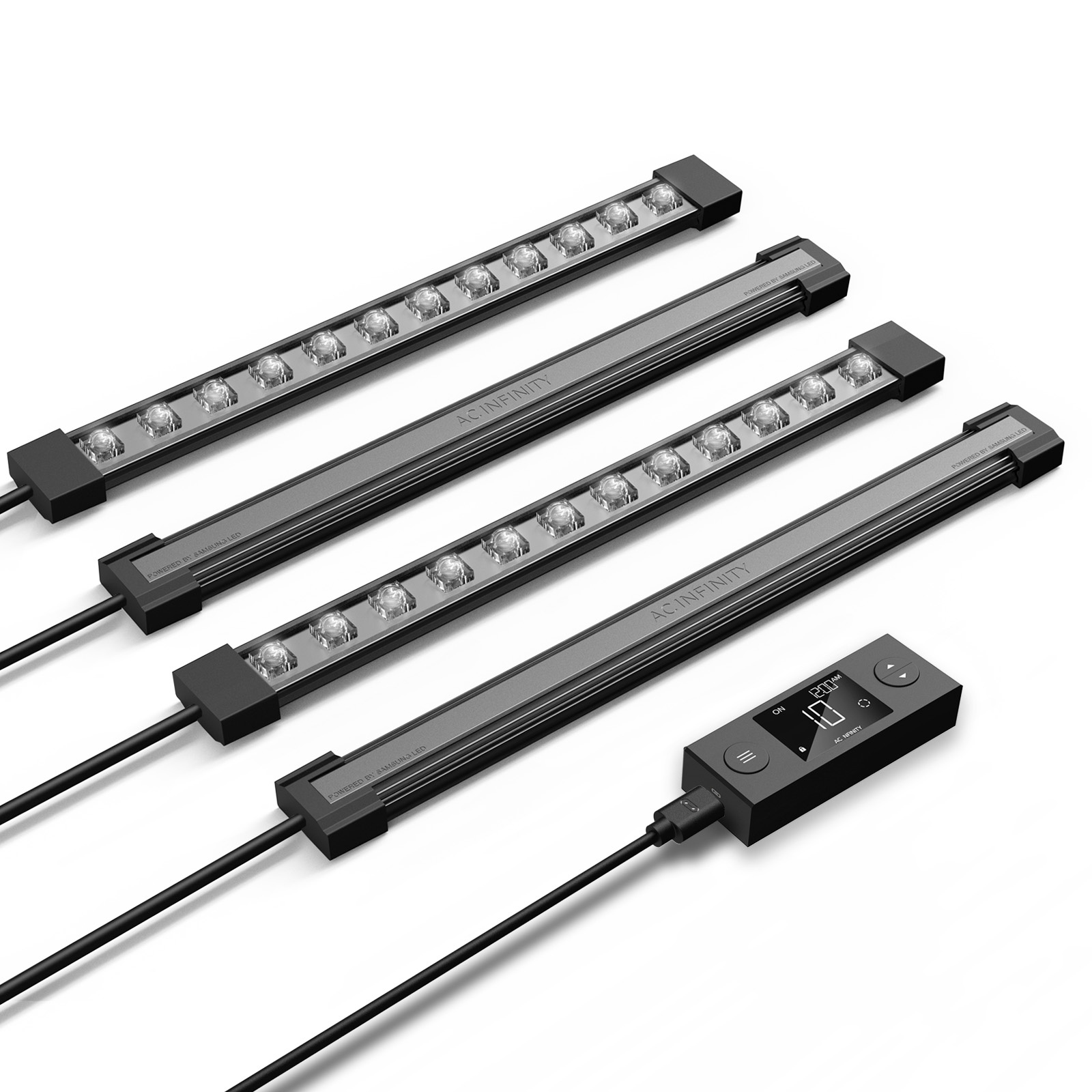

IONBEAM S11, Supplemental Grow Light Bars 27.9 cm, Full Spectrum LED
€109,00
incl. VAT, plus shipping costs
- Four 27.9 cm LED bars for use as intracanopy lighting (between the plants) or as supplemental light to increase yields.
- Extended coverage for areas that the main lighting struggles to reach.
- Magnetic mounting on grow tent poles and fabric walls using the included mounting strips.

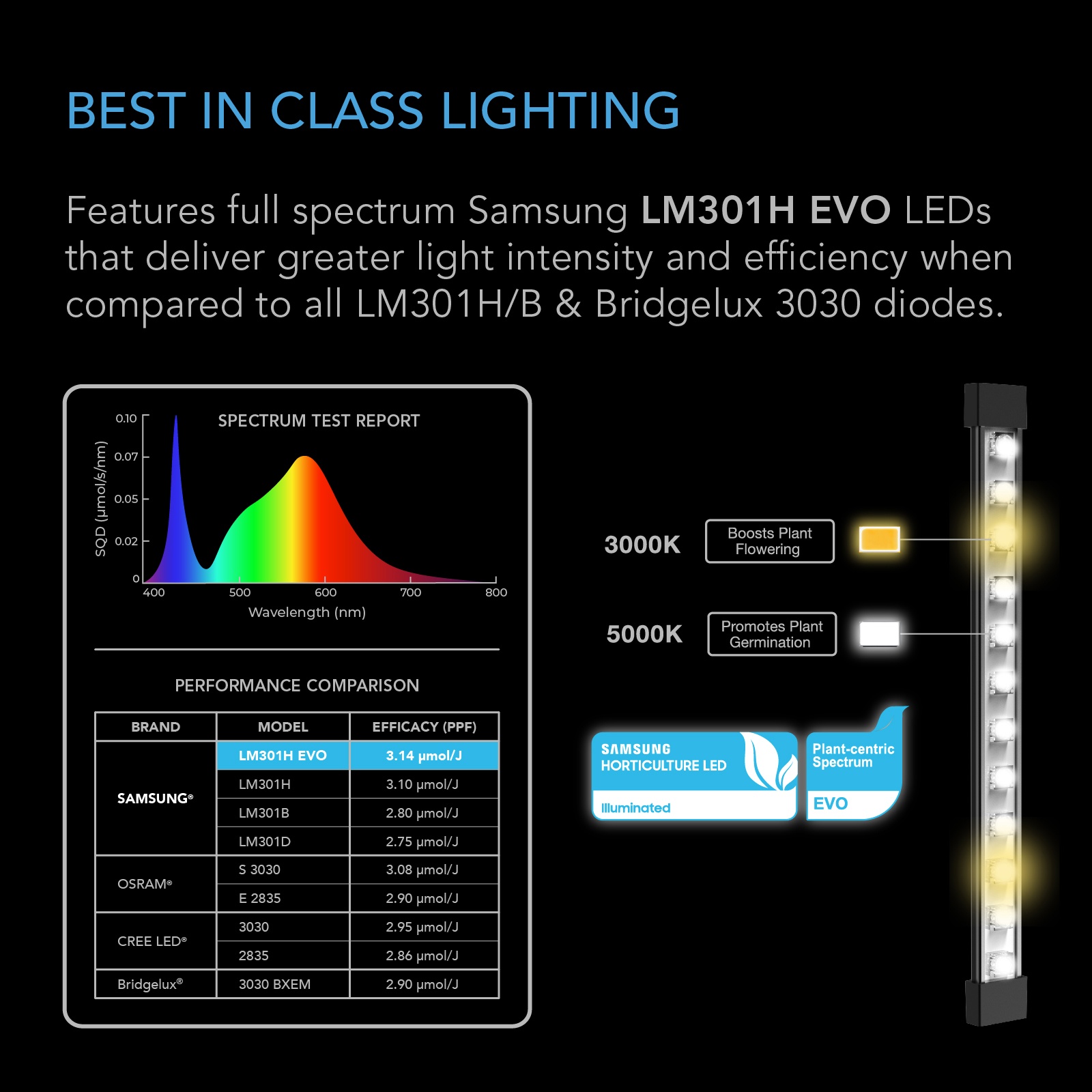

- Equipped with Samsung LM301H EVO LEDs with an efficiency of 3.14 µmol/J each – for high light output and energy efficiency.
- Digital timer with 10 dimming levels and schedule programming.
Product Description
The IONBEAM S11 LED bars were developed for use as intracanopy, supplemental or primary lighting in indoor grows.
When positioned optimally, they improve light distribution and promote plant growth and yield. The set includes four LED bars, four mounting strips for magnetic mounting and screws for fixed installation – also suitable as the main light for small grow setups and compatible with germination boxes and propagation domes. This product is part of the UIS™ platform (UIS: Universal Infinity System) of grow equipment and smart controllers and connects via WiFi to the AC Infinity app for easy, precise control of the environment.
- 4 bars27.9 cm long each
- 48 diodesSamsung LM301H EVO (12 per bar)
- Full spectrum3000 K and 5000 K
- 30 WPower consumption
- IP-65Dust-tight, protected against water jets

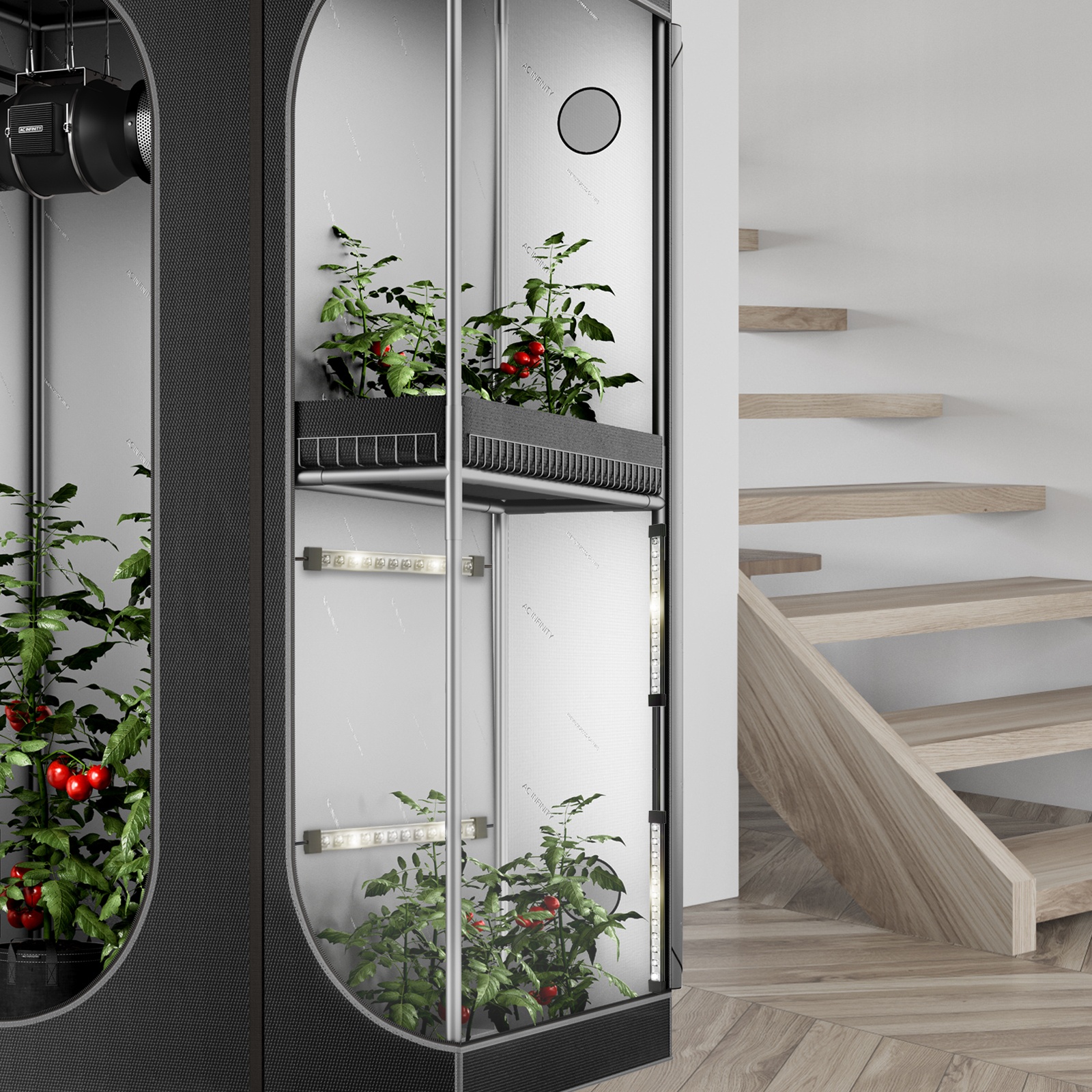

Complete Coverage – Even Between the Plants
This reaches areas within the foliage that the main lighting struggles to illuminate. Each LED bar is equipped with genuine Samsung LM301H EVO diodes. These diodes deliver intense light with higher efficiency than the common Samsung LM301H, LM301B as well as Bridgelux 3030 and other older models; with their higher blue share and higher light output per diode, EVO diodes support plant growth more effectively than non-EVO LEDs.

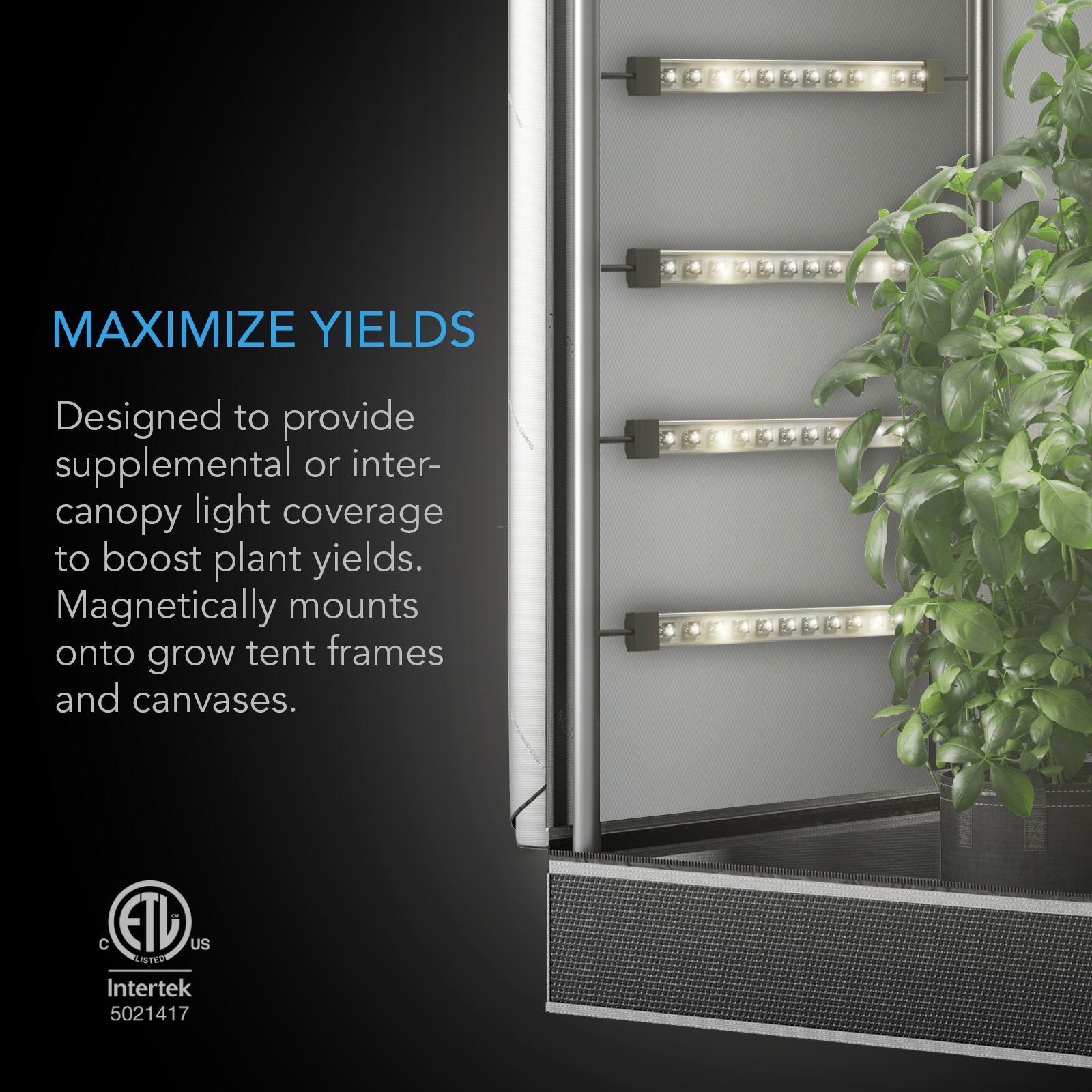

Magnetic Mounting
The bars attach magnetically directly to the grow tent poles – or to fabric walls when using the included mounting strips. Additional LED bars can also be connected to extend the reach of the setup.
Durable and Long-Lasting
Each bar consists of a durable unibody housing and is IP-65 rated (dust-tight and protected against water jets, but not waterproof) as well as ETL-listed (ETL: Intertek certification mark, No. 5021417). The solid aluminum body also serves as a heat sink, extending LED lifespan.

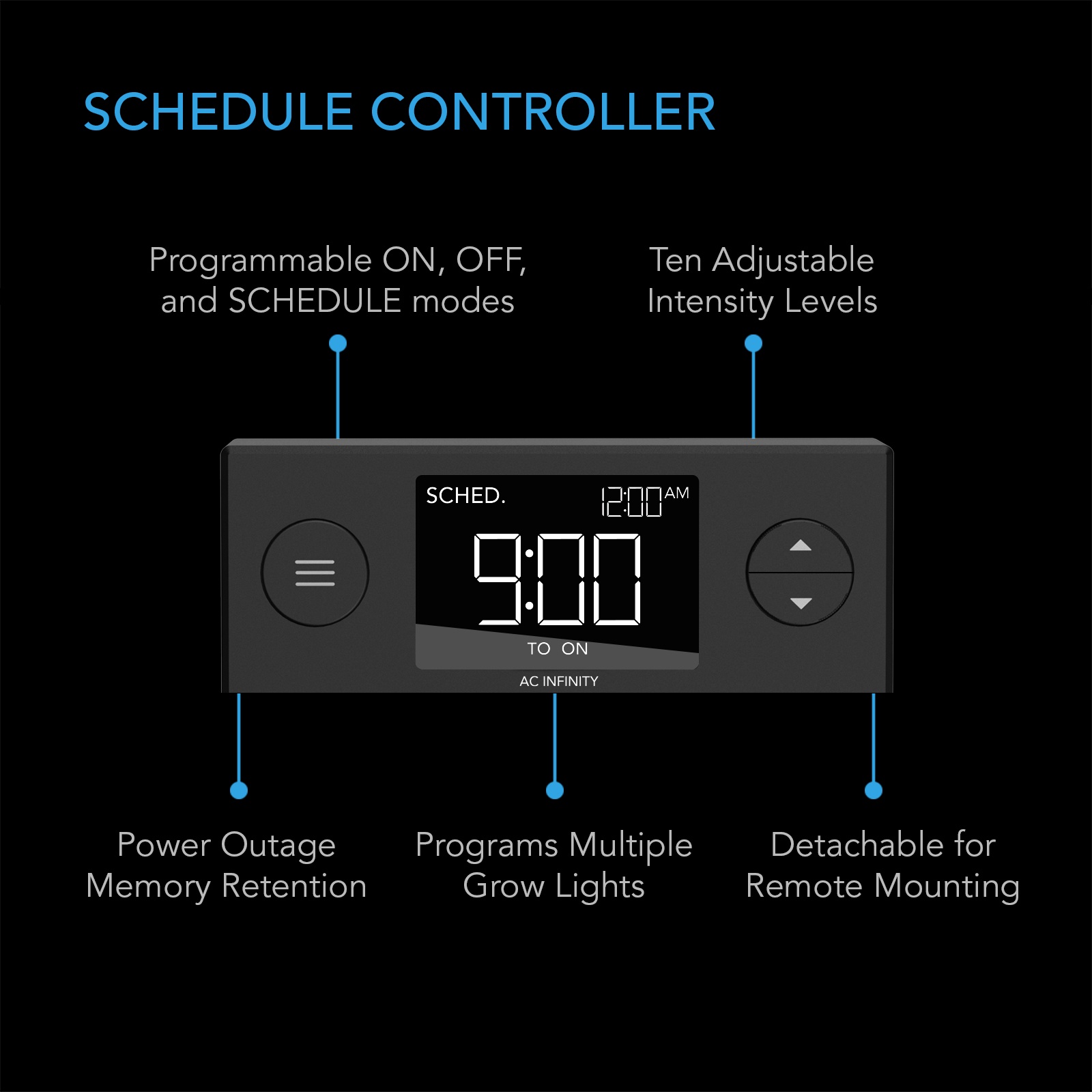

Digital timer included
The included digital timer offers ten brightness levels as well as off, on and schedule modes.

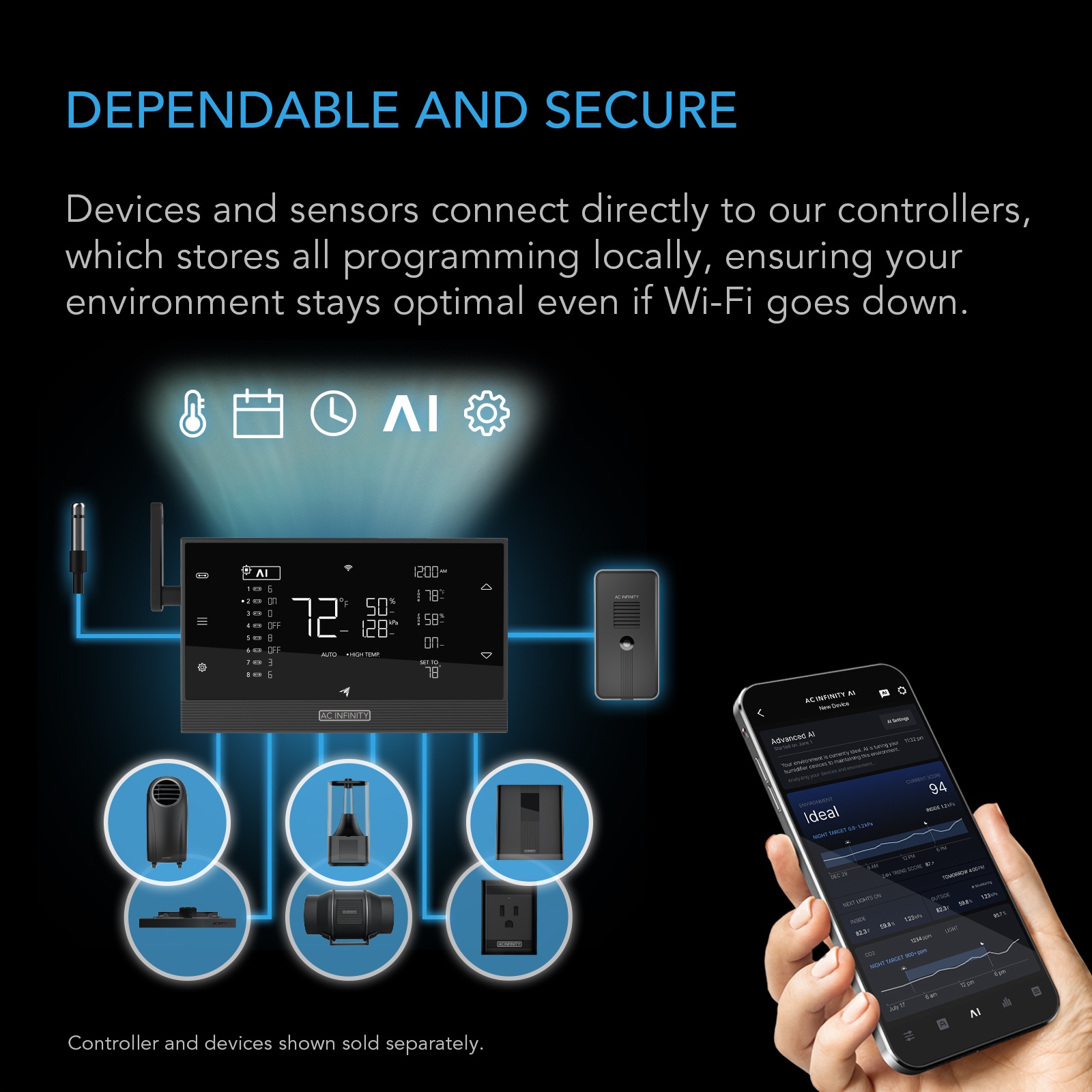

CONTROL
Digital timer included – UIS controller optional
Via the integrated port, the digital timer can be connected to UIS controllers and integrated into the entire grow setup – including climate triggers, grow cycles and scheduling. The AC Infinity app then controls the devices from anywhere.
Included digital timerOff, on and schedule, 10 brightness levels – directly on the display
With UIS controller and appRemote control, advanced automations, notifications, climate charts, CSV data export and more
UIS controller sold separately, for example the CONTROLLER AI+.
Package Contents
- 1×LED bar, wired on one side
- 3×LED bars, wired on both sides
- 4×Magnetic mounting strips
- 1×Digital timer
- 1×Power adapter
- 6×Bar connection cables, male to female
- 1×UIS extension cable, male to male
- 11×Wood screws (wall mounting)
- 2×Timer mounting plate screws
- 3×Hex nuts
- 4×Hook-and-loop ties
Safety and Warning Information
Power and Installation
- Connect only to properly installed, grounded outlets that meet the electrical requirements of the product.
- Check local building codes before installation. If in doubt, consult a qualified electrician or specialist company.
- Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
- During installation, take care not to damage or cut the cable insulation. Cables must not come into contact with sharp edges.
- Use only original cables and suitable accessories from the manufacturer. Other components may compromise safety.
- Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric.
- All connections must be secure, correct and safely made before operation.
- Do not rely solely on timers or automatic controls. Unplug the device during extended absences or maintenance.
Mounting and Operation
- The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware.
- Ensure adequate ventilation. Ventilation slots must not be blocked.
- When installing in grow tents or closed systems, ensure adequate ventilation.
- Do not cover or obstruct the device during operation.
- Avoid looking directly into the LEDs for extended periods while they are on.
- Do not place or spill liquids on or near the device. The LED bars are protected against water jets according to IP-65, but they are not waterproof.
- Never use the device in explosive, chemically contaminated or extremely humid environments.
- Do not drop the device or expose it to strong impacts.
- Before operation, make sure there are no packaging parts or tools on the device.
- Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
- The device is not intended for outdoor use.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
- Keep away from children and pets.
Maintenance, General and Disposal
- Read the complete user manual before installation and operation and keep it for future reference.
- Always unplug the power cord before cleaning, servicing or modifying the device.
- Never open, repair or electrically modify the device yourself. Repairs may only be carried out by authorized qualified personnel.
- Improper installation or use may result in electric shock, injury or damage.
- Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- Four 27.9 cm LED bars for use as intracanopy lighting (between the plants) or as supplemental light to increase yields.
- Extended coverage for areas that the main lighting struggles to reach.
- Magnetic mounting on grow tent poles and fabric walls using the included mounting strips.
- Equipped with Samsung LM301H EVO LEDs with an efficiency of 3.14 µmol/J each – for high light output and energy efficiency.
- Digital timer with 10 dimming levels and schedule programming.
Product Description
The IONBEAM S11 LED bars were developed for use as intracanopy, supplemental or primary lighting in indoor grows.
When positioned optimally, they improve light distribution and promote plant growth and yield. The set includes four LED bars, four mounting strips for magnetic mounting and screws for fixed installation – also suitable as the main light for small grow setups and compatible with germination boxes and propagation domes. This product is part of the UIS™ platform (UIS: Universal Infinity System) of grow equipment and smart controllers and connects via WiFi to the AC Infinity app for easy, precise control of the environment.
- 4 bars27.9 cm long each
- 48 diodesSamsung LM301H EVO (12 per bar)
- Full spectrum3000 K and 5000 K
- 30 WPower consumption
- IP-65Dust-tight, protected against water jets
Complete Coverage – Even Between the Plants
This reaches areas within the foliage that the main lighting struggles to illuminate. Each LED bar is equipped with genuine Samsung LM301H EVO diodes. These diodes deliver intense light with higher efficiency than the common Samsung LM301H, LM301B as well as Bridgelux 3030 and other older models; with their higher blue share and higher light output per diode, EVO diodes support plant growth more effectively than non-EVO LEDs.
Magnetic Mounting
The bars attach magnetically directly to the grow tent poles – or to fabric walls when using the included mounting strips. Additional LED bars can also be connected to extend the reach of the setup.
Durable and Long-Lasting
Each bar consists of a durable unibody housing and is IP-65 rated (dust-tight and protected against water jets, but not waterproof) as well as ETL-listed (ETL: Intertek certification mark, No. 5021417). The solid aluminum body also serves as a heat sink, extending LED lifespan.
Digital timer included
The included digital timer offers ten brightness levels as well as off, on and schedule modes.
CONTROL
Digital timer included – UIS controller optional
Via the integrated port, the digital timer can be connected to UIS controllers and integrated into the entire grow setup – including climate triggers, grow cycles and scheduling. The AC Infinity app then controls the devices from anywhere.
Included digital timerOff, on and schedule, 10 brightness levels – directly on the display
With UIS controller and appRemote control, advanced automations, notifications, climate charts, CSV data export and more
UIS controller sold separately, for example the CONTROLLER AI+.
Package Contents
- 1×LED bar, wired on one side
- 3×LED bars, wired on both sides
- 4×Magnetic mounting strips
- 1×Digital timer
- 1×Power adapter
- 6×Bar connection cables, male to female
- 1×UIS extension cable, male to male
- 11×Wood screws (wall mounting)
- 2×Timer mounting plate screws
- 3×Hex nuts
- 4×Hook-and-loop ties
Safety and Warning Information
Power and Installation
- Connect only to properly installed, grounded outlets that meet the electrical requirements of the product.
- Check local building codes before installation. If in doubt, consult a qualified electrician or specialist company.
- Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
- During installation, take care not to damage or cut the cable insulation. Cables must not come into contact with sharp edges.
- Use only original cables and suitable accessories from the manufacturer. Other components may compromise safety.
- Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric.
- All connections must be secure, correct and safely made before operation.
- Do not rely solely on timers or automatic controls. Unplug the device during extended absences or maintenance.
Mounting and Operation
- The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware.
- Ensure adequate ventilation. Ventilation slots must not be blocked.
- When installing in grow tents or closed systems, ensure adequate ventilation.
- Do not cover or obstruct the device during operation.
- Avoid looking directly into the LEDs for extended periods while they are on.
- Do not place or spill liquids on or near the device. The LED bars are protected against water jets according to IP-65, but they are not waterproof.
- Never use the device in explosive, chemically contaminated or extremely humid environments.
- Do not drop the device or expose it to strong impacts.
- Before operation, make sure there are no packaging parts or tools on the device.
- Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
- The device is not intended for outdoor use.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
- Keep away from children and pets.
Maintenance, General and Disposal
- Read the complete user manual before installation and operation and keep it for future reference.
- Always unplug the power cord before cleaning, servicing or modifying the device.
- Never open, repair or electrically modify the device yourself. Repairs may only be carried out by authorized qualified personnel.
- Improper installation or use may result in electric shock, injury or damage.
- Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameIONBEAM S11
Product ModelAC-NES11
UPC Code819137023352
User Manual
LED Bars

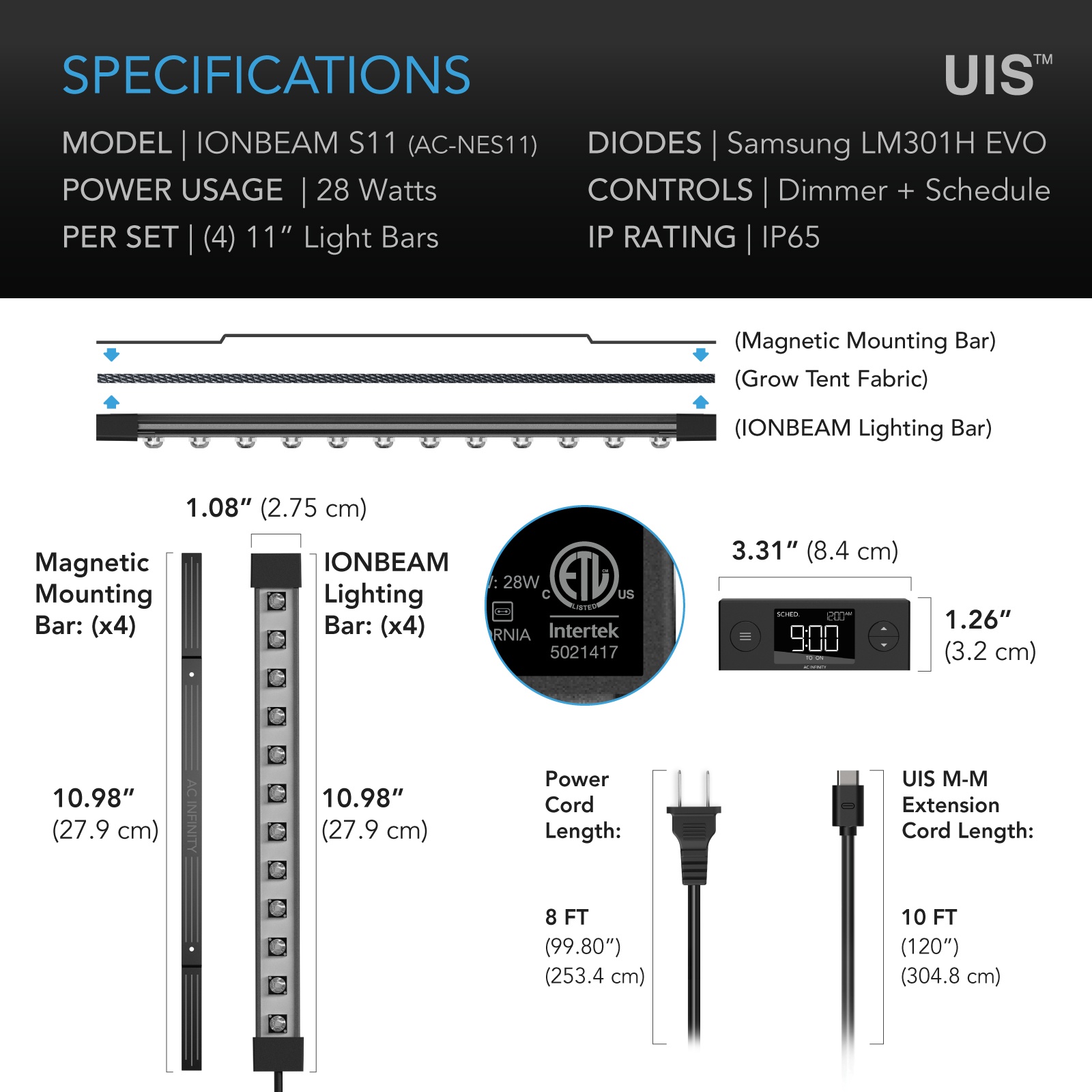

Product and Mounting Dimensions
| LED Bar | 27.9 × 2.75 cm |
|---|---|
| Timer Dimensions | 8.4 × 3.2 cm |
| Power Cord Length | 2.53 m |
| Connection Cable Length | 23.2 cm |
Performance and Technical Specifications
| Number of LED Bars | 4 |
|---|---|
| Diodes | Samsung LM301H EVO |
| Number of LED Chips | 12 per bar (48 total) |
| Spectrum | 3000 K, 5000 K |
| Power Consumption | 30 W |
| Voltage | 100–240 V AC |
| Frequency | 50/60 Hz |
| Current Draw | 0.13 A (at 230 V) |
| Timer | Digital timer, dimmable, with scheduling |
| Brightness Levels | 10 |
| Plug Type | EU plug |
| Protection Rating | IP-65 (dust-tight, protected against water jets) |
| ETL Certification | Intertek, No. 5021417 |
| Operating Humidity | 35 to 85 % RH |
| Operating Temperature | 0 to 60 °C |
| Lifespan | 50,000 hours |
