AC-NEU11-4
IONBEAM U4, Supplemental Grow Light Bars 27.9 cm, Targeted UV Spectrum LED 4-Bar Kit
€119,00
incl. VAT, plus shipping costs

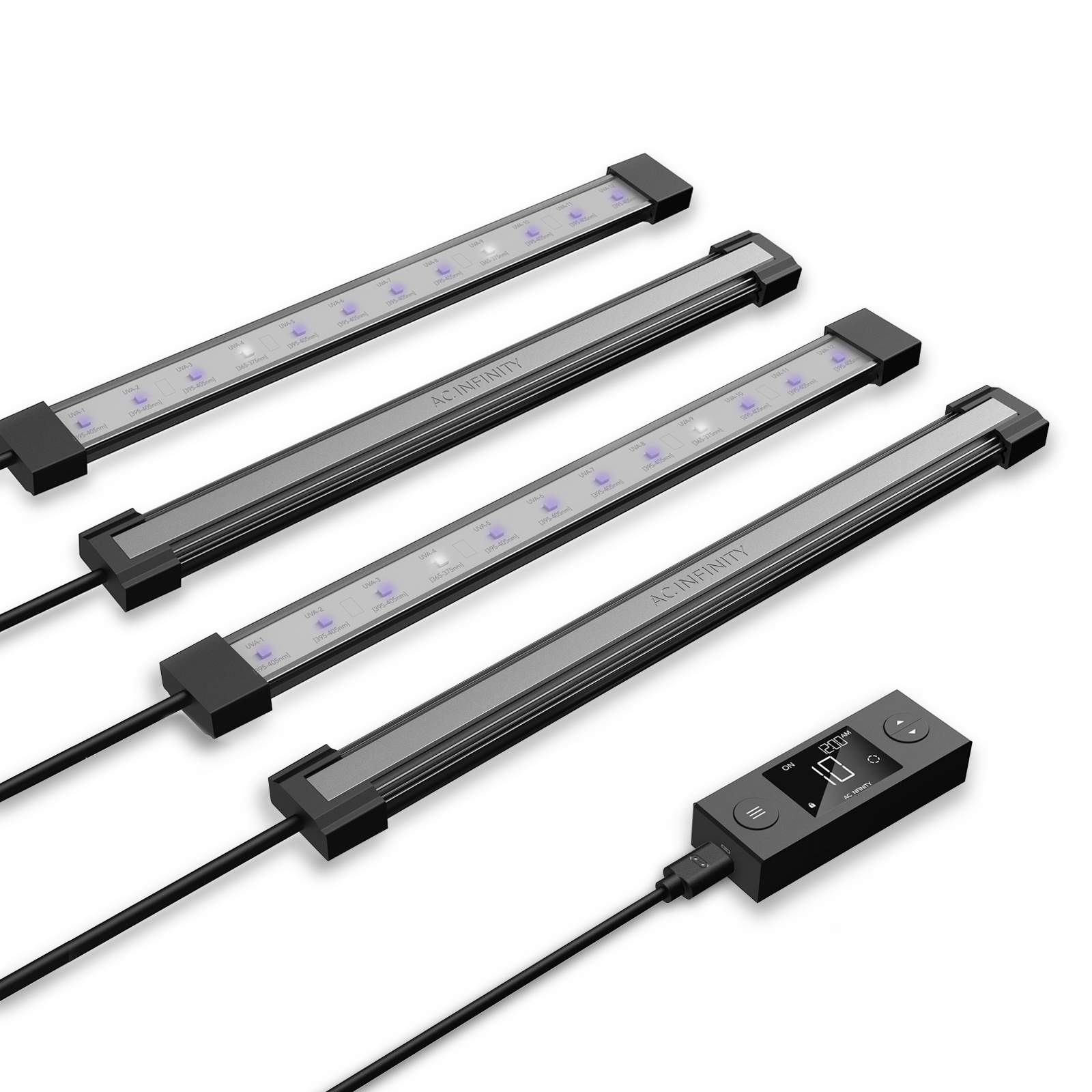

- Four 27.9 cm UV LED bars for supplemental UV lighting or to support the main lighting.
- Simulates the UV radiation of the sun to encourage plants to develop more intense aromas, colors and resins.
- Specifically tuned to UVA wavelengths of 365 nm and 395 nm (UVA: long-wave UV light) – ideal for the vegetative and flowering stages.
- Digital timer with 10 dimming levels and daily scheduling.
- Magnetic mounting on tent poles or fabric walls with the included mounting strips.
Product Description
The IONBEAM U4 kit was developed specifically as a supplemental UV light source to support plants in the vegetative and flowering stages.

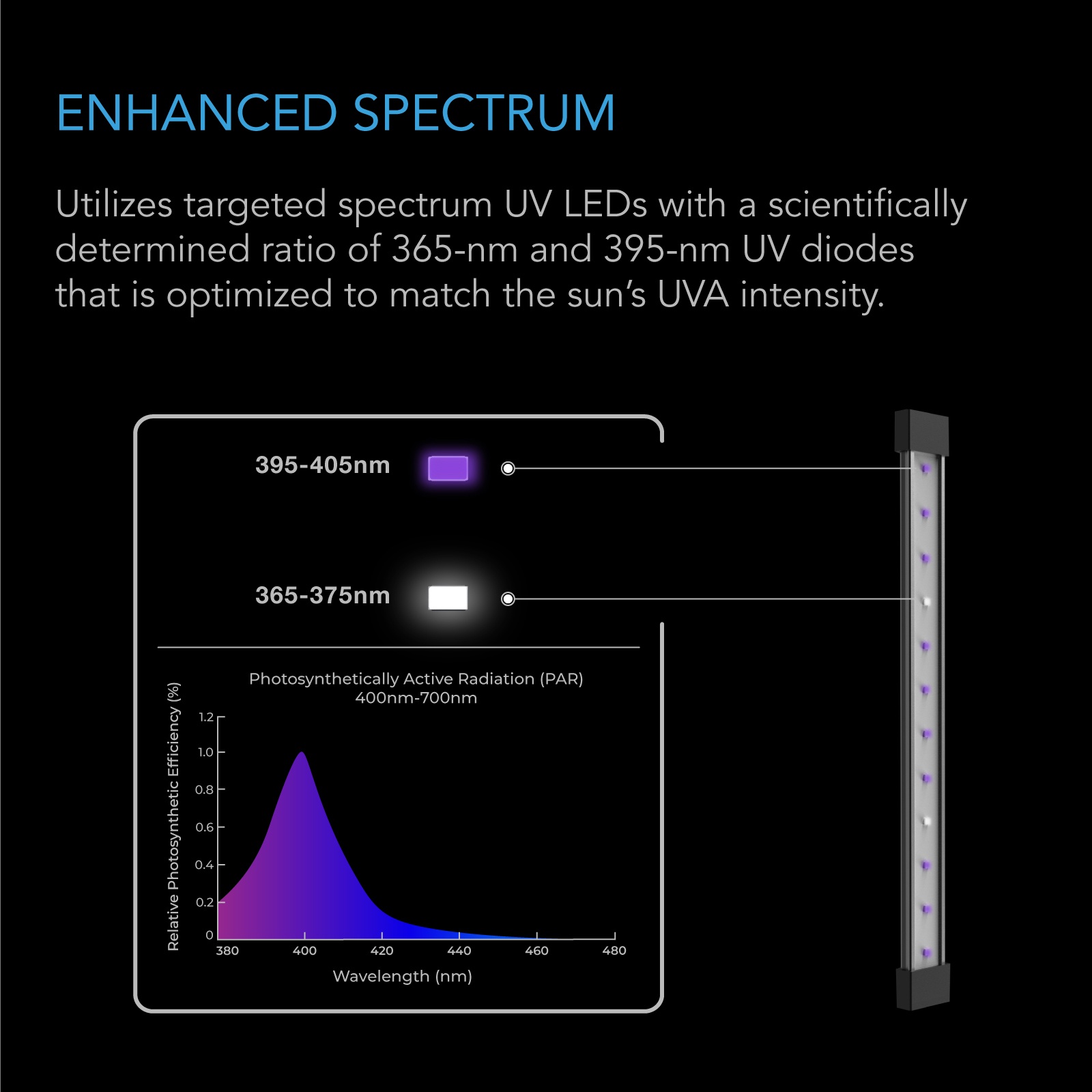

The four bars contain specifically tuned UVA LEDs at 365 nm and 395 nm that replicate the effect of natural UV radiation – for more intense color, flavor, aroma and resin in many plant species. In addition to the UV bars, the kit includes a digital timer and mounting strips for magnetic mounting – ideal for grow tents and also compatible with germination boxes and propagation domes for seedlings and cuttings. This product is part of the UIS™ platform (UIS: Universal Infinity System) of grow equipment and smart controllers and connects via WiFi to the AC Infinity app for easy, precise control of the environment.
- 4 bars27.9 cm long each
- 48 diodesUVA (12 per bar)
- 365 + 395 nmUVA wavelengths
- 30 WPower consumption
- IP-65Dust-tight, protected against water jets

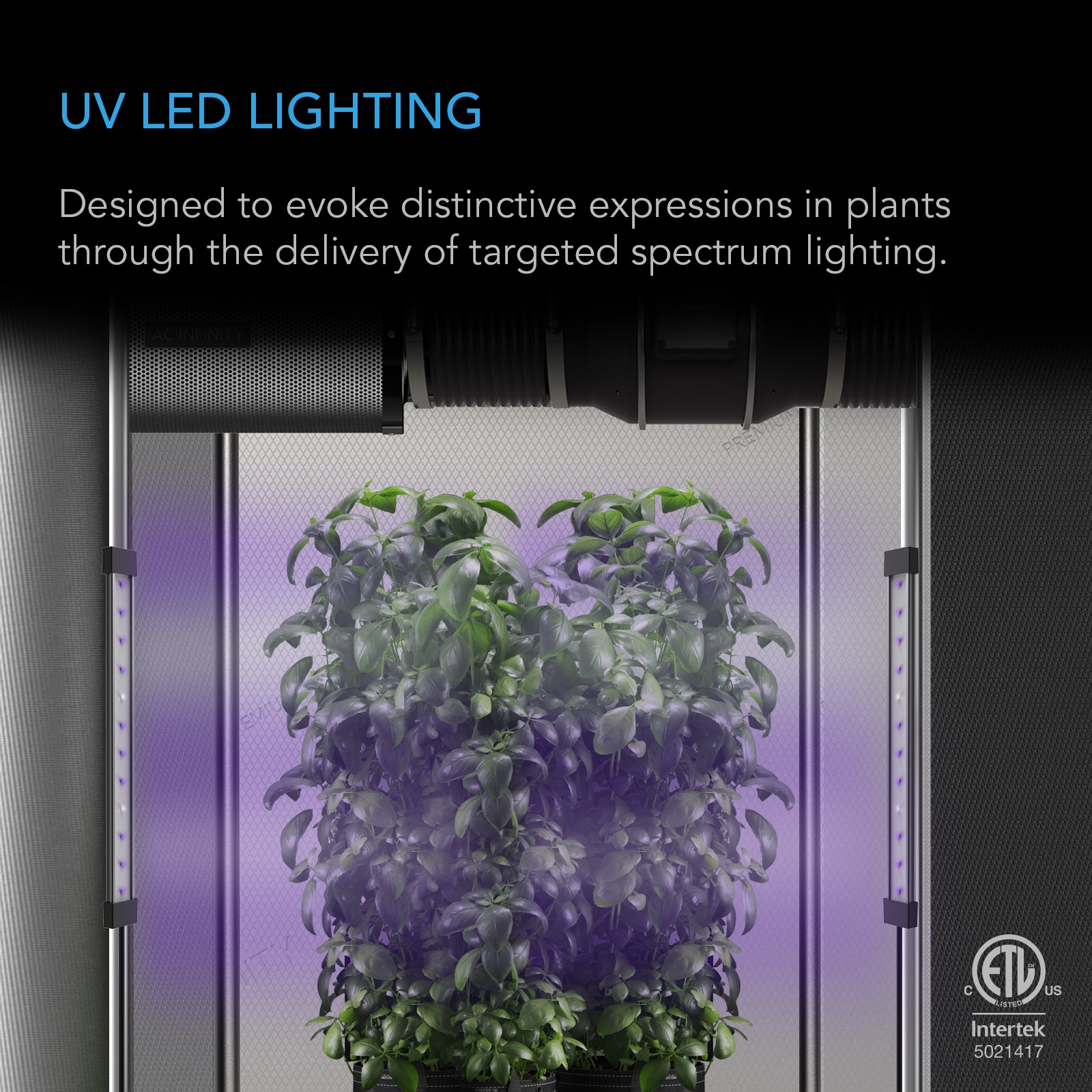

Even UVA Coverage
The bars provide even UV coverage that supplements the spectrum of the main lighting with wavelengths also found in sunlight. The built-in 365 nm and 395 nm diodes stimulate the expression of plant traits during the flowering stage and can thus improve the quality of the harvest.

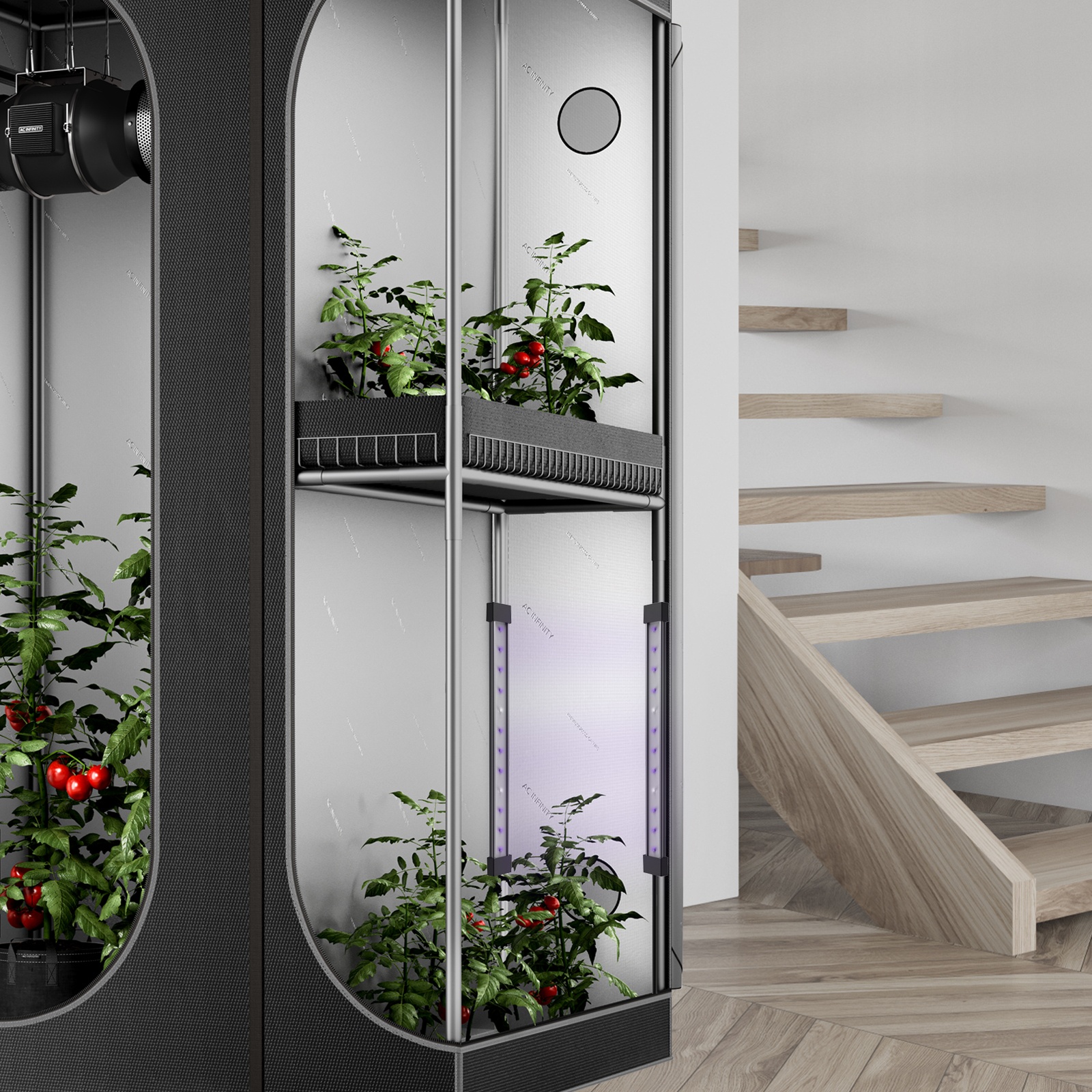

Fits Any Tent Size
Two bars fully cover areas of 60 × 60 cm, 60 × 120 cm or 90 × 90 cm. Four bars are enough for grow areas of 120 × 120 cm and 150 × 150 cm. The bars attach magnetically directly to the tent poles or to fabric walls with the included mounting strips.
Durable and Long-Lasting
Each bar consists of a durable unibody housing and is IP-65 rated (dust-tight and protected against water jets, but not waterproof) as well as ETL-listed (ETL: Intertek certification mark, No. 5021417). The solid aluminum body also serves as a heat sink, extending LED lifespan.

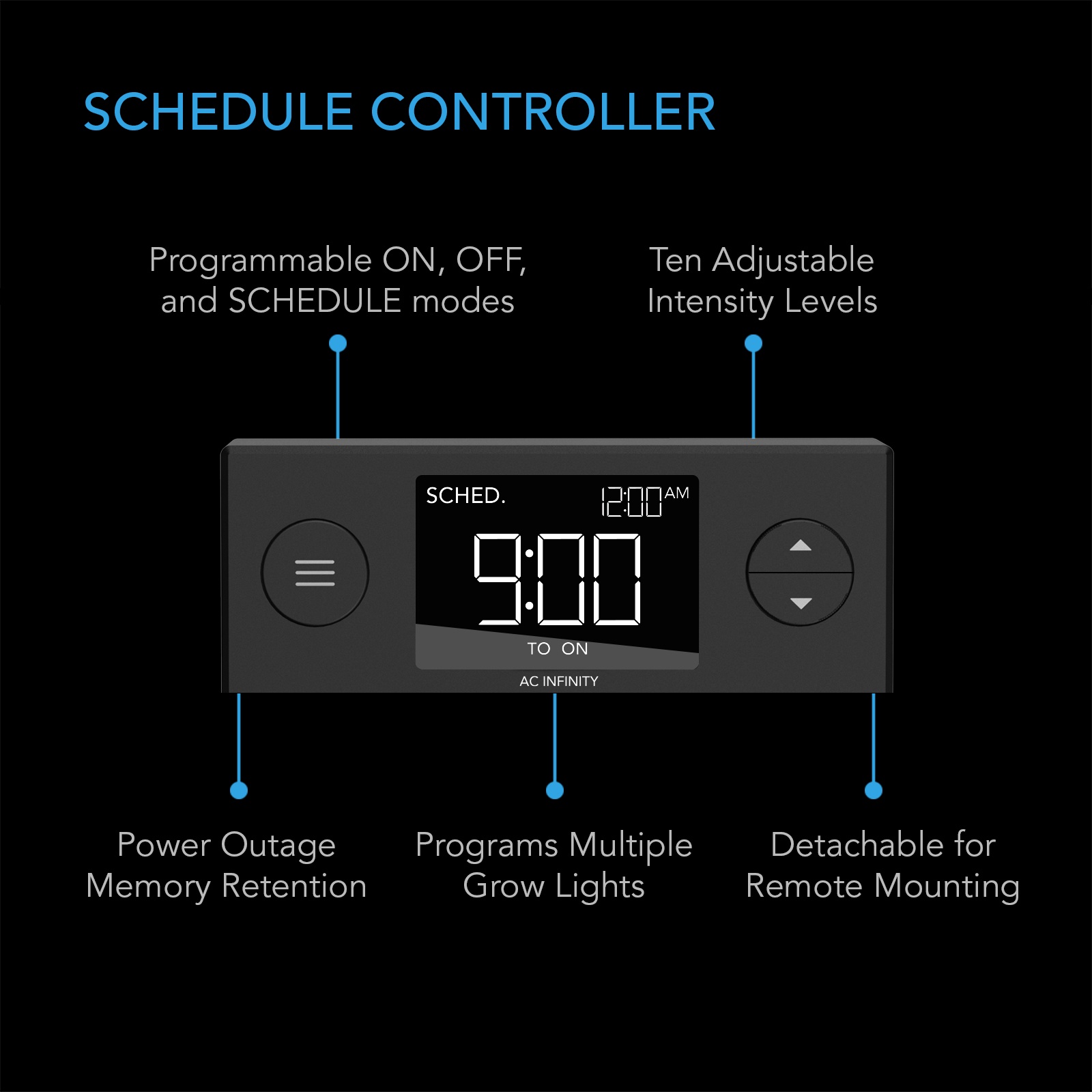

Digital timer included
The included digital timer offers ten brightness levels as well as off, on and schedule modes.

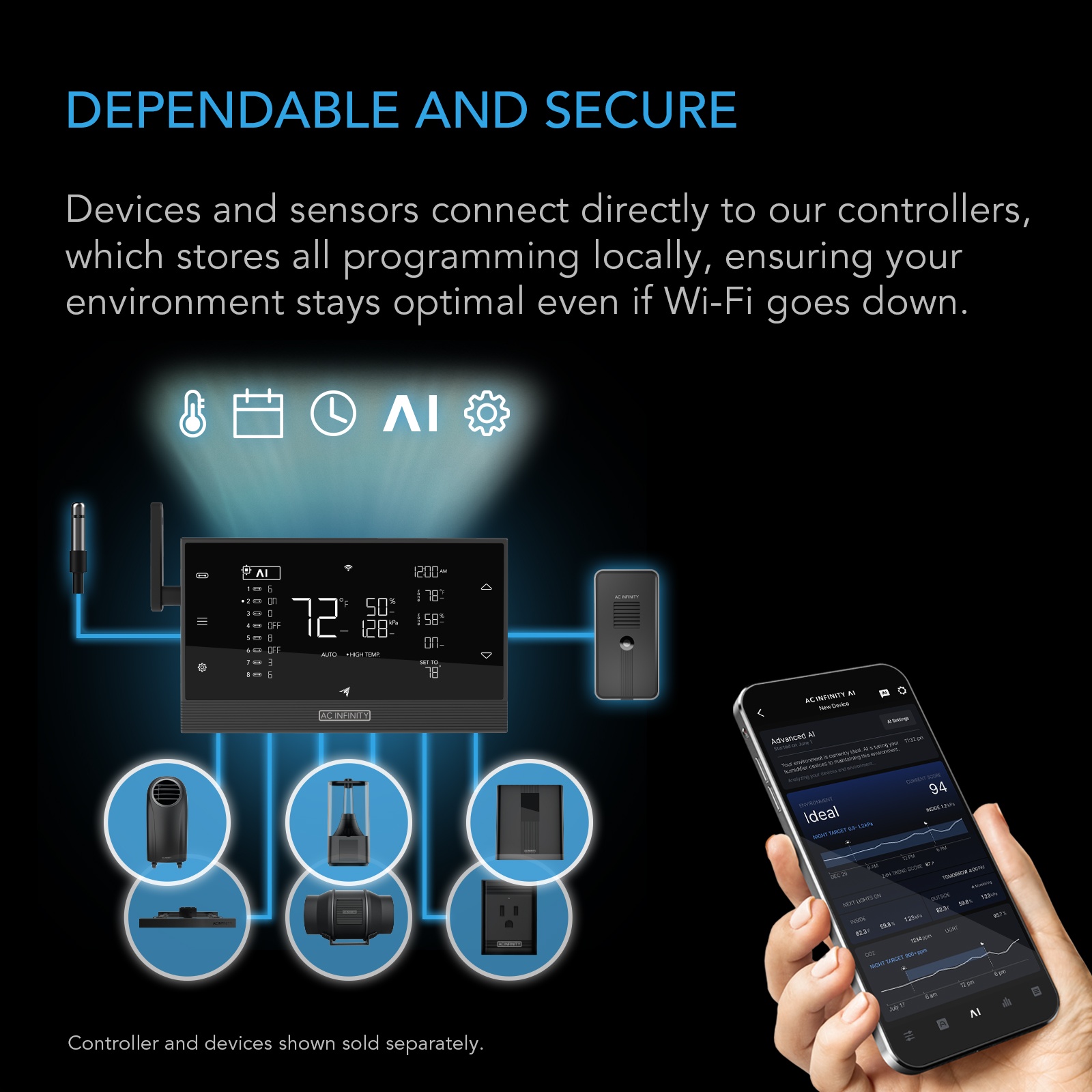

CONTROL
Digital timer included – UIS controller optional
The lights can be connected to other devices via UIS™ controllers – for central control of grow cycles, climate triggers and schedules. The AC Infinity app controls the entire setup from anywhere.
Included digital timerOff, on and schedule, 10 brightness levels – directly on the display
With UIS controller and appAutomations, climate control and device synchronization – via app from anywhere
UIS controller sold separately, for example the CONTROLLER AI+.
Package Contents
- 1×LED bar, wired on one side
- 3×LED bars, wired on both sides
- 4×Magnetic mounting strips
- 1×Digital timer
- 1×Power adapter
- 6×Bar connection cables, male to female
- 1×UIS extension cable, male to male
- 11×Wood screws (wall mounting)
- 2×Timer mounting plate screws
- 3×Hex nuts
- 4×Hook-and-loop ties
Safety and Warning Information
Power and Installation
- Connect only to properly installed, grounded outlets that meet the electrical requirements of the product.
- Check local building codes before installation. If in doubt, consult a qualified electrician or specialist company.
- Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
- During installation, take care not to damage or cut the cable insulation. Cables must not come into contact with sharp edges.
- Use only original cables and suitable accessories from the manufacturer. Other components may compromise safety.
- Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric.
- All connections must be secure, correct and safely made before operation.
- Do not rely solely on timers or automatic controls. Unplug the device during extended absences or maintenance.
Mounting and Operation
- The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware.
- Ensure adequate ventilation. Ventilation slots must not be blocked.
- When installing in grow tents or closed systems, ensure adequate ventilation.
- Do not cover or obstruct the device during operation.
- Avoid looking directly into the LEDs for extended periods while they are on.
- Do not place or spill liquids on or near the device. The LED bars are protected against water jets according to IP-65, but they are not waterproof.
- Never use the device in explosive, chemically contaminated or extremely humid environments.
- Do not drop the device or expose it to strong impacts.
- Before operation, make sure there are no packaging parts or tools on the device.
- Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
- The device is not intended for outdoor use.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
- Keep away from children and pets.
Maintenance, General and Disposal
- Read the complete user manual before installation and operation and keep it for future reference.
- Always unplug the power cord before cleaning, servicing or modifying the device.
- Never open, repair or electrically modify the device yourself. Repairs may only be carried out by authorized qualified personnel.
- Improper installation or use may result in electric shock, injury or damage.
- Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
- Four 27.9 cm UV LED bars for supplemental UV lighting or to support the main lighting.
- Simulates the UV radiation of the sun to encourage plants to develop more intense aromas, colors and resins.
- Specifically tuned to UVA wavelengths of 365 nm and 395 nm (UVA: long-wave UV light) – ideal for the vegetative and flowering stages.
- Digital timer with 10 dimming levels and daily scheduling.
- Magnetic mounting on tent poles or fabric walls with the included mounting strips.
Product Description
The IONBEAM U4 kit was developed specifically as a supplemental UV light source to support plants in the vegetative and flowering stages.
The four bars contain specifically tuned UVA LEDs at 365 nm and 395 nm that replicate the effect of natural UV radiation – for more intense color, flavor, aroma and resin in many plant species. In addition to the UV bars, the kit includes a digital timer and mounting strips for magnetic mounting – ideal for grow tents and also compatible with germination boxes and propagation domes for seedlings and cuttings. This product is part of the UIS™ platform (UIS: Universal Infinity System) of grow equipment and smart controllers and connects via WiFi to the AC Infinity app for easy, precise control of the environment.
- 4 bars27.9 cm long each
- 48 diodesUVA (12 per bar)
- 365 + 395 nmUVA wavelengths
- 30 WPower consumption
- IP-65Dust-tight, protected against water jets
Even UVA Coverage
The bars provide even UV coverage that supplements the spectrum of the main lighting with wavelengths also found in sunlight. The built-in 365 nm and 395 nm diodes stimulate the expression of plant traits during the flowering stage and can thus improve the quality of the harvest.
Fits Any Tent Size
Two bars fully cover areas of 60 × 60 cm, 60 × 120 cm or 90 × 90 cm. Four bars are enough for grow areas of 120 × 120 cm and 150 × 150 cm. The bars attach magnetically directly to the tent poles or to fabric walls with the included mounting strips.
Durable and Long-Lasting
Each bar consists of a durable unibody housing and is IP-65 rated (dust-tight and protected against water jets, but not waterproof) as well as ETL-listed (ETL: Intertek certification mark, No. 5021417). The solid aluminum body also serves as a heat sink, extending LED lifespan.
Digital timer included
The included digital timer offers ten brightness levels as well as off, on and schedule modes.
CONTROL
Digital timer included – UIS controller optional
The lights can be connected to other devices via UIS™ controllers – for central control of grow cycles, climate triggers and schedules. The AC Infinity app controls the entire setup from anywhere.
Included digital timerOff, on and schedule, 10 brightness levels – directly on the display
With UIS controller and appAutomations, climate control and device synchronization – via app from anywhere
UIS controller sold separately, for example the CONTROLLER AI+.
Package Contents
- 1×LED bar, wired on one side
- 3×LED bars, wired on both sides
- 4×Magnetic mounting strips
- 1×Digital timer
- 1×Power adapter
- 6×Bar connection cables, male to female
- 1×UIS extension cable, male to male
- 11×Wood screws (wall mounting)
- 2×Timer mounting plate screws
- 3×Hex nuts
- 4×Hook-and-loop ties
Safety and Warning Information
Power and Installation
- Connect only to properly installed, grounded outlets that meet the electrical requirements of the product.
- Check local building codes before installation. If in doubt, consult a qualified electrician or specialist company.
- Do not use damaged cables or plugs. If damaged, disconnect the device from the power supply immediately and have it inspected by a qualified professional.
- During installation, take care not to damage or cut the cable insulation. Cables must not come into contact with sharp edges.
- Use only original cables and suitable accessories from the manufacturer. Other components may compromise safety.
- Power cables and connections must not be kinked, crushed, run under carpets or covered with fabric.
- All connections must be secure, correct and safely made before operation.
- Do not rely solely on timers or automatic controls. Unplug the device during extended absences or maintenance.
Mounting and Operation
- The device must be mounted securely and stably. Use only the included or manufacturer-recommended mounting hardware.
- Ensure adequate ventilation. Ventilation slots must not be blocked.
- When installing in grow tents or closed systems, ensure adequate ventilation.
- Do not cover or obstruct the device during operation.
- Avoid looking directly into the LEDs for extended periods while they are on.
- Do not place or spill liquids on or near the device. The LED bars are protected against water jets according to IP-65, but they are not waterproof.
- Never use the device in explosive, chemically contaminated or extremely humid environments.
- Do not drop the device or expose it to strong impacts.
- Before operation, make sure there are no packaging parts or tools on the device.
- Use the device only for its intended purpose as LED plant lighting in indoor grow applications.
- The device is not intended for outdoor use.
- Do not allow use by persons with reduced physical, sensory or mental capabilities without supervision.
- Keep away from children and pets.
Maintenance, General and Disposal
- Read the complete user manual before installation and operation and keep it for future reference.
- Always unplug the power cord before cleaning, servicing or modifying the device.
- Never open, repair or electrically modify the device yourself. Repairs may only be carried out by authorized qualified personnel.
- Improper installation or use may result in electric shock, injury or damage.
- Disposal: do not dispose of this product with household waste – return it to a collection point for waste electrical and electronic equipment (WEEE 2012/19/EU).
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Beedstrasse 54
40468 Düsseldorf, Germany
legal@themisar.com
Manufacturer and Responsible Person Information
Manufacturer (GPSR)
AC Infinity Inc.
21880 Baker Parkway
City of Industry, CA 91789, United States
support@acinfinity.com
Responsible Person (GPSR)
THEMIS AR Unterstützung UG (haftungsbeschränkt)
Gumbertstraße 150 EG Rechts
40229 Düsseldorf, Germany
legal@themisar.com
ManufacturerAC Infinity Inc.
Product NameIONBEAM U4
Product ModelAC-NEU11-4
UPC Code819137024106
User Manual
LED Bars

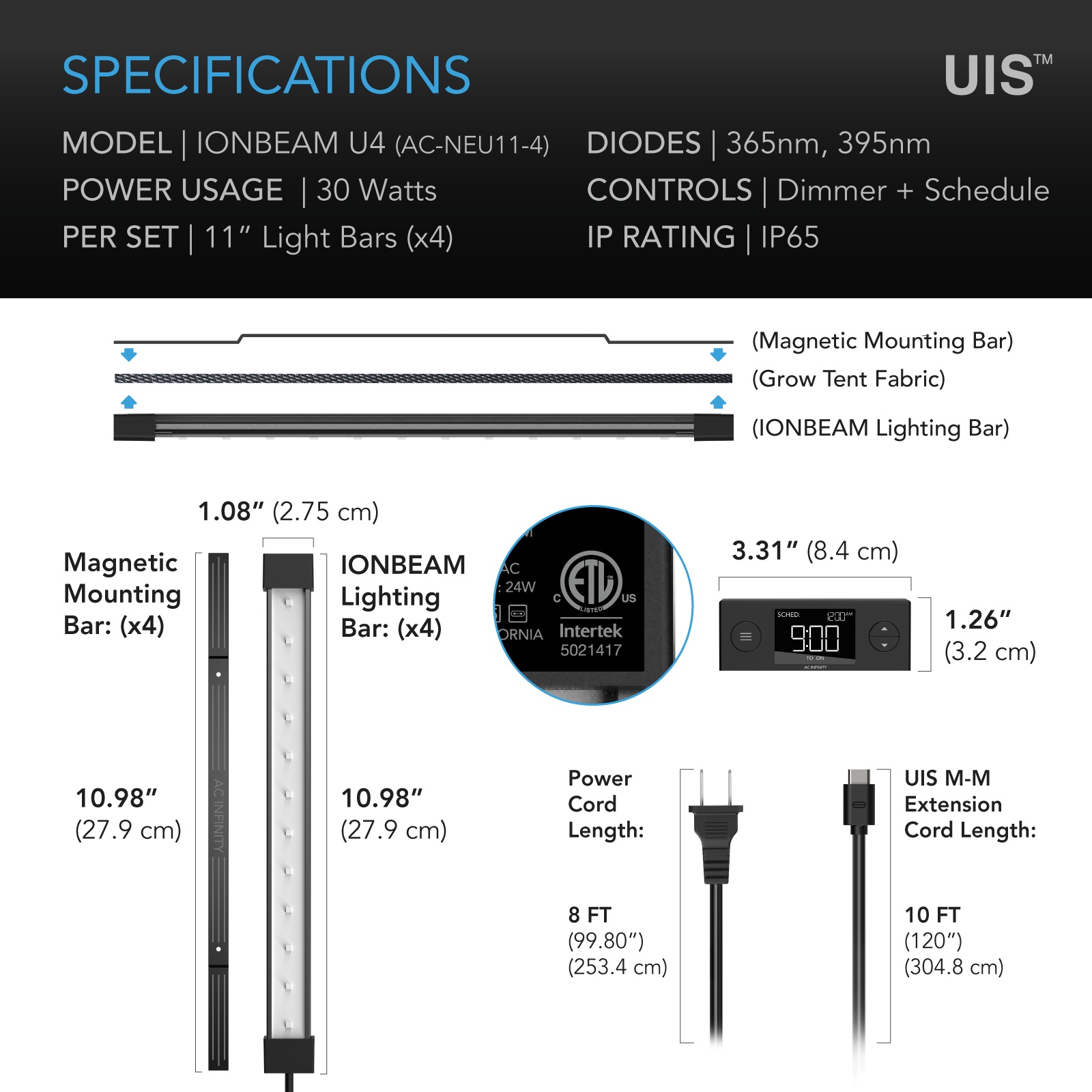

Product and Mounting Dimensions
| LED Bar | 27.9 × 2.75 cm |
|---|---|
| Timer Dimensions | 8.4 × 3.2 cm |
| Power Cord Length | 2.53 m |
| Connection Cable Length | 23.2 cm |
Performance and Technical Specifications
| Number of LED Bars | 4 |
|---|---|
| Diodes | UVA 365 nm, 395 nm |
| Number of LED Chips | 12 per bar (48 total) |
| Power Consumption | 30 W |
| Voltage | 100–240 V AC |
| Frequency | 50/60 Hz |
| Current Draw | 0.21 A (at 230 V) |
| Timer | Digital timer, dimmable, with scheduling |
| Brightness Levels | 10 |
| Plug Type | EU plug |
| Protection Rating | IP-65 (dust-tight, protected against water jets) |
| ETL Certification | Intertek, No. 5021417 |
| Operating Humidity | 35 to 85 % RH |
| Operating Temperature | 0 to 60 °C |
| Lifespan | 50,000 hours |
